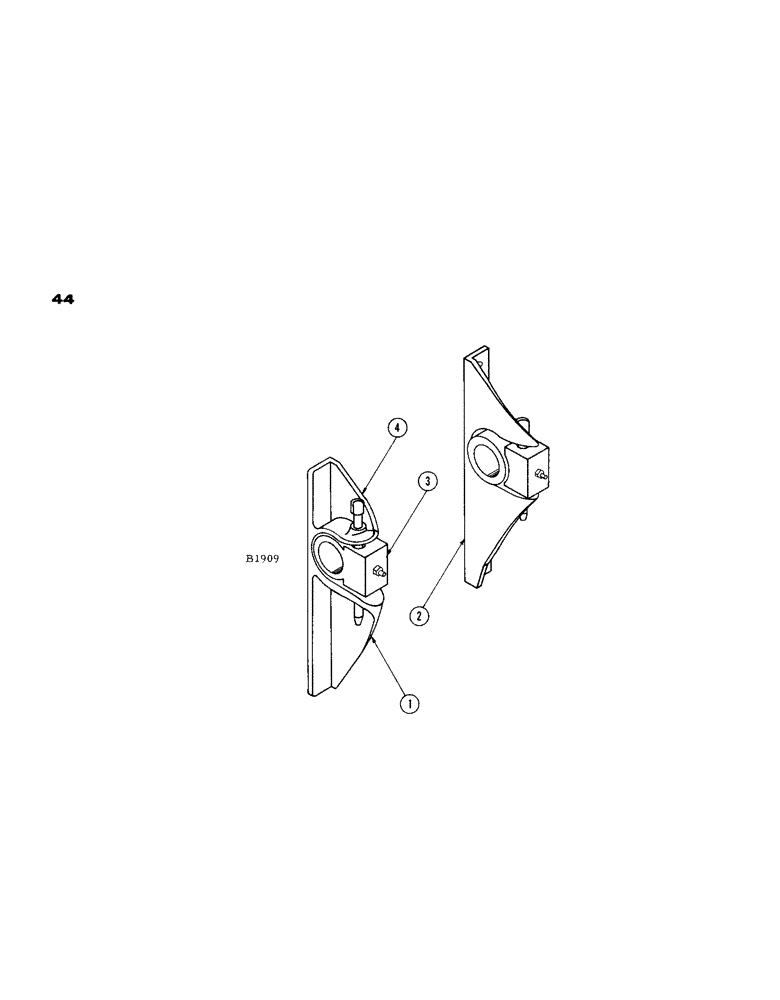

Запчасти Case IH 1660 (044) - HEADER PIVOT BRACKETS (58) - ATTACHMENTS/HEADERS

1

F1337

BRACKET - header pivot, R.H.

1шт.

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

4шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.

2

F1338

BRACKET - header pivot, L.H.

1шт.

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

4шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.

3

F86049

GUIDE

BLOCK - header pivot bearing (Exhaust, then use F88589)

2шт.

F88589

GUIDE

BLOCK - header pivot bearing (Replaces F86049)

2шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING -grease

2шт.

4

F6266

PIN - locking

2шт.

A29054

HAIR PIN COTTER

COTTER - hairpin, for F6266 locking pin (not shown)

2шт.
