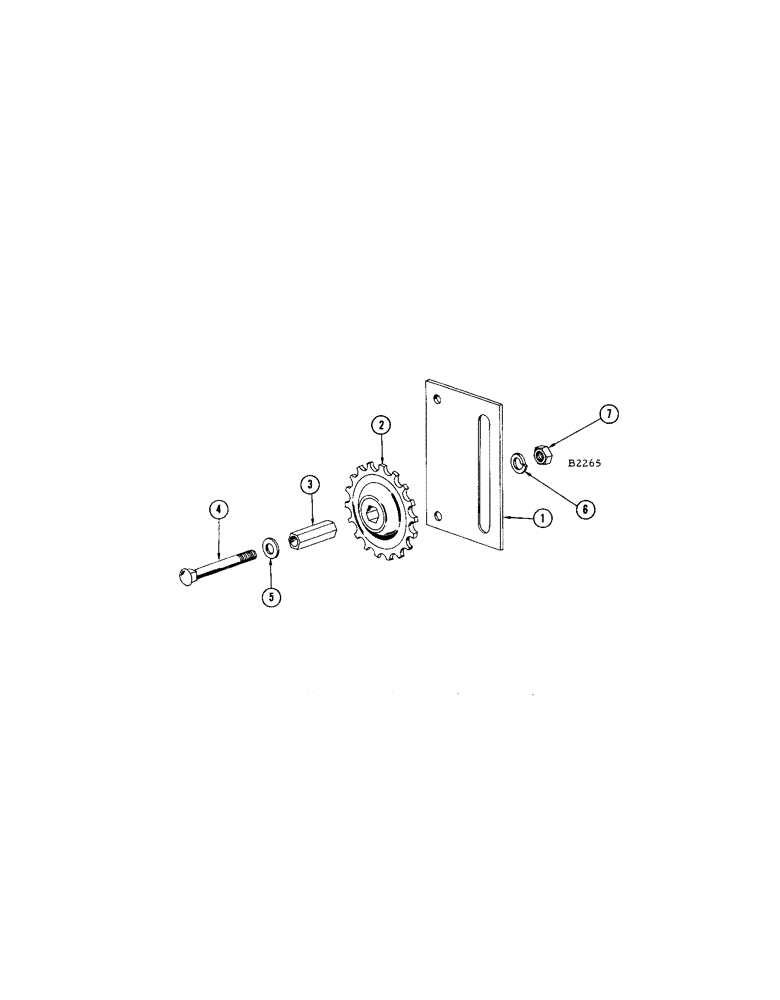

Запчасти Case IH 1660 (044[A]) - TIGHTENER, AUGER AND MAIN HEADER DRIVE (58) - ATTACHMENTS/HEADERS

1

F8346

BRACKET - tightener (auger drive only, see F77057, F88586 or F885787

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

1шт.

92-6

LOCK WASHER,3/8"

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

2

F12640

SPROCKET ASSY.

SPROCKET - idler (3 used on 20 ft. hdr.)

2шт.

3

F14551

STUD - (3 used on 20 ft. hdr.)

2шт.

4

111-609

BOLT - 5/8" x 3-1/2" rhd. sq. nk.

1шт.

5

95-10

WASHER,5/8"

- flat 5/8"

1шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

(Replaces F75313) 5/8"-11, G5

1шт.
