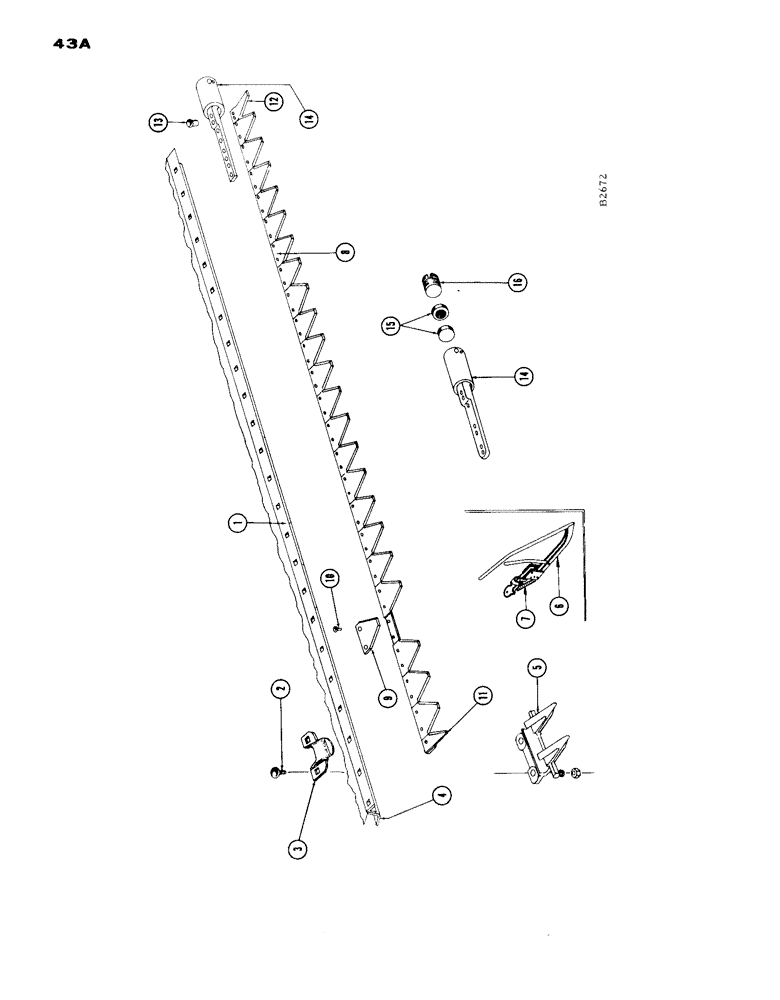

Запчасти Case IH 1660 (043A) - SICKLE AND CUTTER BAR, 16 FT., 19 FT., 20 FT., S/N 8334601 AND AFTER (58) - ATTACHMENTS/HEADERS

1

F13508

RAIL - cutter bar, 16 ft. header

1шт.

F13510

RAIL - cutter bar, 19 ft. header

1шт.

F30042

RAIL - cutter bar, 20 ft. header

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 1", G2

20шт.

2

111-321

SQUARE BOLT,Short Nk, 3/8" - 24 x 1 1/4", Gr 5

BOLT - 3/8" x 1-1/4" N.F. rhd. sq. nk. (Gr. 5) sickle guard 32 - 16 ft., 38 - 19 ft. and 40 - 20 ft.

1шт.

111-343

BOLT

- 3/8" x 1" N.F. rhd. sq. nk. (Gr. 5) sickle guard 32 - 16 ft., 38 - 19 ft. and 40 - 20 ft.

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex., and lockwasher (92-6)

1шт.

3

F13511

CLIP

- sickle hold-down (16-16 ft., 19-19 ft. & 20-20 ft.)

1шт.

4

F13507

REINFORCEMENT - cutter bar rail (16 ft.)

1шт.

F13509

REINFORCEMENT - cutter bar rail (19 ft.)

1шт.

F30041

REINFORCEMENT - cutter bar rail (20 ft.)

1шт.

5

F3154

GUARD

- sickle (31-16 ft., 37-19 ft. and 39-20 ft.)

1шт.

F3153

GUARD - sickle, L.H. end (Not Shown)

1шт.

6

F84171

GUARD - pickup, grain saving (Special)

1шт.

7

A30455

SPRING

1шт.

8

F92619

KNIFE ASSY

SICKLE - 16 ft. (w/63-MT944S sections) See F96334 or F92618

1шт.

F92621

SICKLE - 19 ft. (w/75-MT944S sections) See F88216

1шт.

F88629

SICKLE - 20 ft. (w/79 - MT9445 sections) see F88729

1шт.

9

MT944S

KNIFE SECTION

SECTION - under serrated (Std.)

1шт.

10

Z1690

RIVET

- (#5-1/2 x 9/16" rhd.) sections to bar (1 lb. pkg.)

1шт.

11

F22513

CUTTER BAR

HALF SECTION - smooth (See F59129)

1шт.

12

F13701

PLATE - filler

1шт.

13

Z1716

RIVET

- (#5-1/2 x 1" rhd.) for riveting sections to sickle head (1 lb. pkg.)

1шт.

14

F77330

HEAD

- sickle

1шт.

15

A26629

BEARING

- pitman socket (1 each side of head)

2шт.

16

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting, pitman

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str. (for F77330 head)

1шт.

F92618

TOOL

SICKLE - 16 ft. (with 63-T13010 sections)

1шт.

F88729

SICKLE - 20 ft. (w/79 - T13010 sections)

1шт.

T13010

KNIFE SECTION

SECTION - under serrated (chrome plated) Also includes Ref. 10, 11, 12, 13, and 14

1шт.

F96334

SICKLE - 16 ft. (with 63-O14295S sections)

1шт.

F88216

SICKLE - 19 ft. (with 75-O14295S sections)

1шт.

O14295S

KNIFE SECTION

SECTION - top serrated (See F59106) Also includes Ref. 10, 11, 12, 13 and 14

1шт.

F59106

KNIFE SECTION

SECTION - top serrated (chrome plated) Special

1шт.

T13009

KNIFE SECTION

SECTION - smooth (chrome plated) Special

1шт.

F59129

HALF SECTION - smooth (chrome plated) Special

1шт.

T13489

RIVET

- (#5-1/2 x 9/16" rhd. plated) chrome sections (1 lb. pkg.)

1шт.
