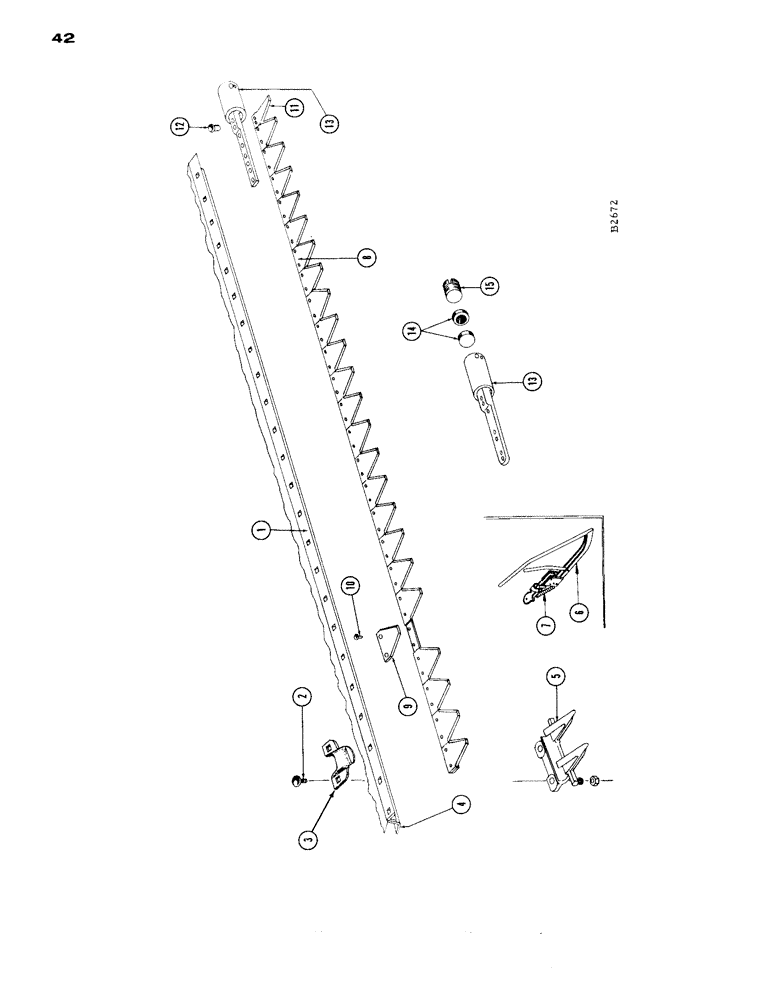

Запчасти Case IH 1660 (042) - SICKLE AND CUTTER BAR, 16 FT., 19 FT., BEFORE S/N 8334601 (58) - ATTACHMENTS/HEADERS

1

F13508

RAIL - cutter bar (16 ft.)

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

20шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

92-5

LOCK WASHER,5/16"

26шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

26шт.

F13510

RAIL - cutter bar (19 ft.)

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

20шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

7шт.

92-5

LOCK WASHER,5/16"

27шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

27шт.

2

111-321

SQUARE BOLT,Short Nk, 3/8" - 24 x 1 1/4", Gr 5

BOLT - 3/8" 1-1/4" N.F. rhd. sq. nk. #5 (for Ref. 3 and 5) (32 - 16 ft and 38 - 19 ft.)

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

3

F13511

CLIP

- hold down (16 16 ft. and 19 - 19 ft. header)

1шт.

4

F13507

REINFORCEMENT - cutter bar rail (16 ft.)

1шт.

F13509

REINFORCEMENT - cutter bar rail (19 ft.)

1шт.

5

F3154

GUARD

- sickle (31 - 16 ft. and 37 - 19 ft. header)

1шт.

111-343

BOLT

- 3/8" x 1" N.F. rhd. sq. nk. #5 (for Ref. 5) (30 - 16 ft. and 36 - 19 ft. header)

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

F3153

GUARD - sickle, L.H. end (not shown)

1шт.

111-343

BOLT

- 3/8" x 1" N.F. rhd. sq. nk. #5

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

6

F84171

GUARD - pickup, grain saving (special)

1шт.

111-308

BOLT - 3/8" x 1-3/4" rhd. sq. nk.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.C. hex.

1шт.

7

A30455

SPRING

1шт.

8

F87351

SICKLE - complete with head and sections (16 ft.)

1шт.

9

O14295S

KNIFE SECTION

SECTION - top serrated

63шт.

10

Z1690

RIVET

- (#5-1/2 x 9/16" rhd.) sections to bar (1 lb. pkg.)

1шт.

T13489

RIVET

- (#5-1/2 x 9/16" rhd. - zinc plated) sections to bar (1 lb. pkg.)

1шт.

11

F13701

PLATE - filler

1шт.

47-418

RIVET - 1/4" x 1-1/8" fl. hd.

2шт.

12

Z1691

RIVET

- #5-1/2 x 7/8" rhd.) for riveting sections to sickle head (1 lb. pkg.)

1шт.

13

F77330

HEAD

- sickle

1шт.

F87352

SICKLE - complete with head and sections (19 ft.)

1шт.

9

O14295S

KNIFE SECTION

SECTION - top serrated

75шт.

10

Z1690

RIVET

- (#5-1/2 x 9/16" rhd.) sections to bar (1 lb. pkg.)

1шт.

T13489

RIVET

- (#5-1/2 x 9/16" rhd. - zinc plated) sections to bar (1 lb. pkg.)

1шт.

11

F13701

PLATE - filler

1шт.

47-418

RIVET - 1/4" x 1-1/8" fl. hd.

2шт.

12

Z1691

RIVET

- (#5-1/2 x 7/8" rhd.) for riveting sections to sickle head (1 lb. pkg.)

1шт.

13

F77330

HEAD

- sickle

1шт.

14

A26629

BEARING

- pitman socket (1 each side of head)

2шт.

15

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting, pitman

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

F59106

KNIFE SECTION

SECTION - top serrated - chrome plated (Special)

1шт.

T13009

KNIFE SECTION

SECTION - smooth - chrome plated (Special)

1шт.

T13010

KNIFE SECTION

SECTION - underserrated - chrome plated (Special)

1шт.
