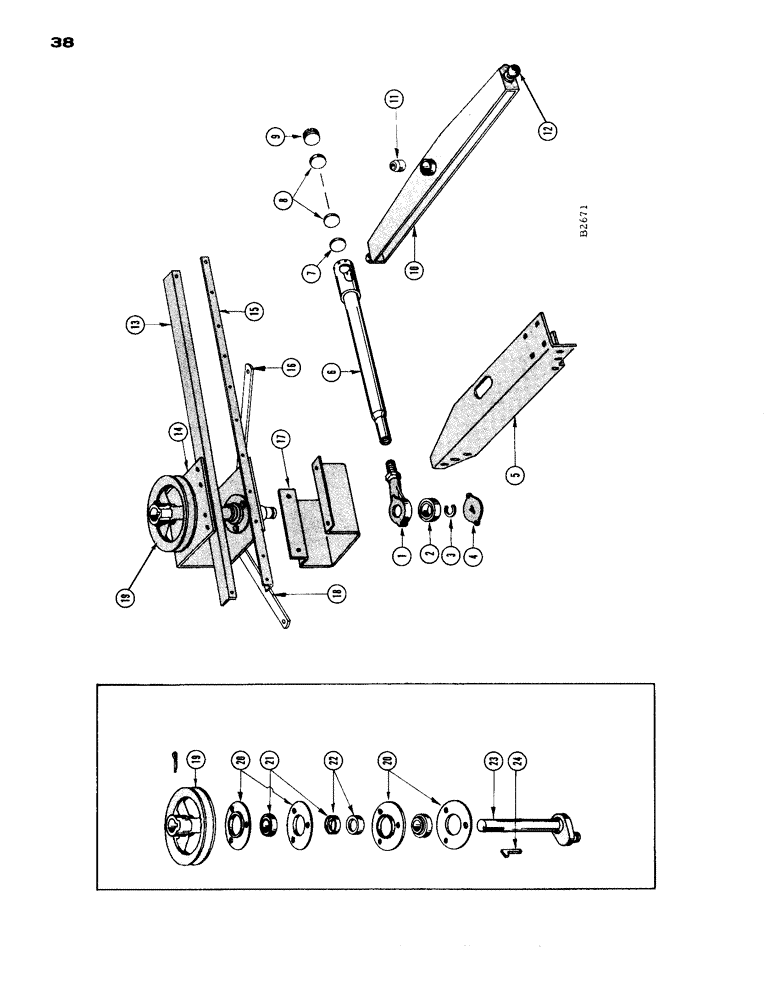

Запчасти Case IH 1660 (038) - SICKLE DRIVE (58) - ATTACHMENTS/HEADERS

1

F3087

END - pitman

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

25-1512

JAM NUT,Jam, 3/4"-10, G5

JAM NUT - 3/4" N.F. hex.

1шт.

2

O7285A

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - pitman

1шт.

3

O6563AB

X

SNAP RING - pitman bearing

1шт.

4

O2400B

CAP - pitman bearing

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , and LW (92-5) Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

5

F86798

PLATE - support, swaybar

1шт.

6

F77087

PITMAN

- sickle drive (14' - 16' - 19' hdr.)

1шт.

F88599

PITMAN - sickle drive (20' header)

1шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

7

F9513

BLANK-OFF PLUG

SLUG - pitman (to prevent grease from entering tube)

1шт.

8

A26629

BEARING

- pitman socket (set of 2 each side of head)

4шт.

9

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting, pitman

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

2шт.

10

F86796

SWAYBAR - sickle drive (Replaced by F88370 when exh.)

1шт.

F88370

SWAYBAR - sickle drive (Replaces F86796)

1шт.

11

F18852

RUBBER BUSHING

PIVOT - center

2шт.

F12763

SPACER - (Not Shown)

1шт.

12

F8370

BALL

2шт.

A31186

BOOT

2шт.

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- 7/8" x 6" N.F. hex., for F86796 swaybar

1шт.

95-14

WASHER,7/8"

- U.S. std. flat 7/8"

2шт.

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex.

1шт.

25-1514

JAM NUT,Jam, 7/8"-14, G5

JAM NUT - 7/8" N.F. hex.

1шт.

O3885A

WASHER

- for F86796 swaybar (not shown)

2шт.

13

F13465

SCREW

ANGLE - sickle drive support, upper (14 ft. header)

1шт.

F13466

ANGLE - sickle drive support, upper 16' - 19' 10' header)

1шт.

14

F10808

SUPPORT - bearing, sickle drive

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

8шт.

92-6

LOCK WASHER,3/8"

8шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

8шт.

15

F13468

ANGLE - sickle drive support, lower (14 ft. header)

1шт.

F13469

SCREW

ANGLE - sickle drive support, lower (16' - 19' - 20' header)

1шт.

16

F10787

BRACE - L.H. sickle drive shield (see feeder spout braces)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

17

F10367

SHIELD - sickle drive

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

18

F10786

BRACE - R.H. sickle drive shield (see feeder spout braces)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

19

F1260

SHEAVE - (6-3/4" O.D.) sickle drive (14 ft. and 16 ft. headers)

1шт.

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

F1302

SHEAVE

- (7-1/2" O.D.) sickle drive (19' - 20' header)

1шт.

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

20

F19270

FLANGE

- (Replaces F62225)

4шт.

11-614

BOLT

- 3/8" x 7/8" rhd. sq. nk.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

21

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - drive shaft

2шт.

22

F62226

COLLAR

1шт.

23

F77084

SHAFT - crank, sickle drive

1шт.

24

O164CU

KEY - (2-3/16" long)

1шт.

F13540

"V" BELT - sickle drive (14 ft. header) not shown

1шт.

F13541

BELT

Sickle Drive, 16, 19, 20 foot Headers, Not Shown

1шт.
