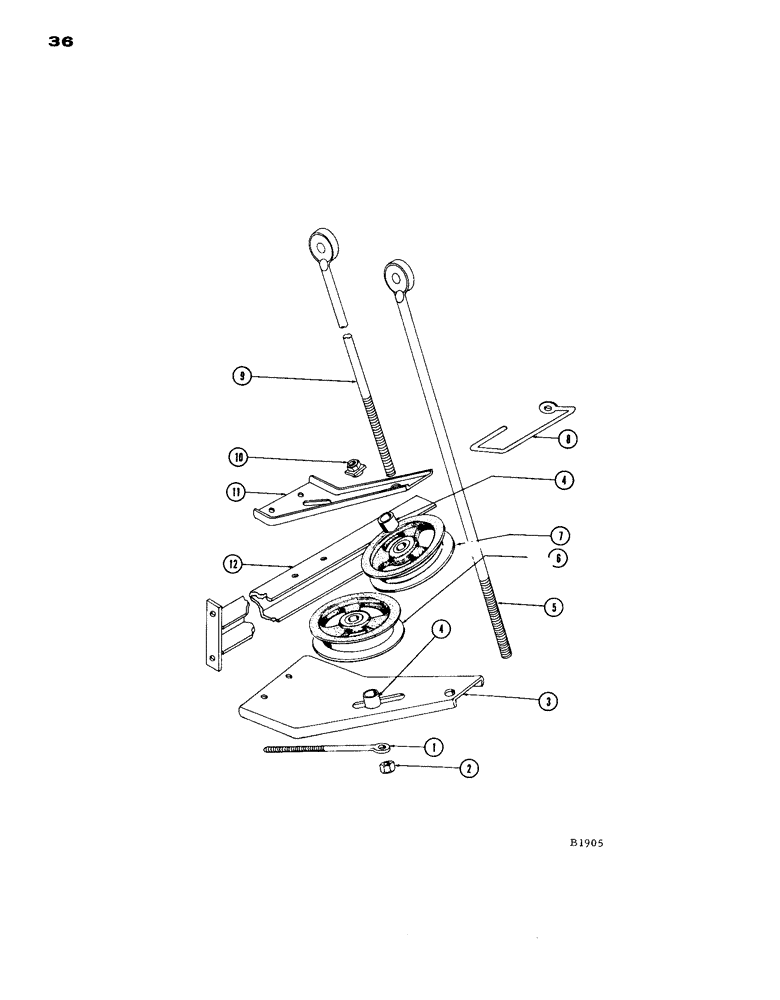

Запчасти Case IH 1660 (036) - SICKLE DRIVE IDLER AND TIGHTENER (58) - ATTACHMENTS/HEADERS

1

F9585

EYEBOLT - sickle drive belt tightener

1шт.

2

25-1010

NUT,5/8"-11, G5

2шт.

3

F79674

BRACKET

- lower idler

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

4

F10566

SPACER - (7/8" O.D. x 2-1/32" long)

2шт.

195-41

WASHER,5/8"

- SAE std. flat 5/8"

2шт.

5

F11434

EYEBOLT - lower bracket

1шт.

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

6

F86210

SHEAVE - lower idler, sickle drive

1шт.

F16246

BEARING, BALL

BEARING

1шт.

O3338BF

SNAP RING

1шт.

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- 5/8" x 3" N.F. hex.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

1шт.

7

F86211

SHEAVE - upper idler, sickle drive

1шт.

T20623

BEARING ASSY,0.64" ID x 1.5748" OD x 0.72"

BEARING

1шт.

O3338BF

SNAP RING

1шт.

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

1шт.

8

F11539

GUIDE - sickle belt

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

9

F11433

EYEBOLT - upper bracket

1шт.

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

10

F75313

LOCKNUT - for bolt of F86211 sheave

1шт.

11

F11431

BRACKET - upper idler

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

12

F87338

CHANNEL - support (14 ft.)

1шт.

F79682

CHANNEL - support (16 ft. and 19 ft.)

1шт.
