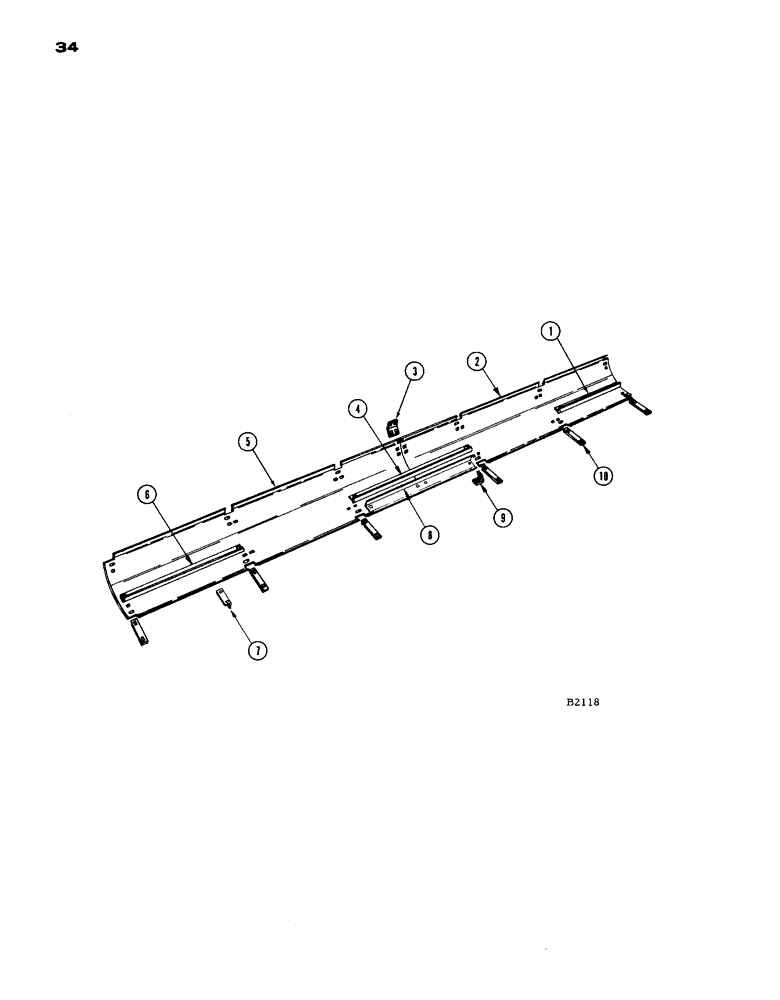

Запчасти Case IH 1660 (034) - 14 FT. AND 16 FT. HEADER SKID ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F12407

REINFORCEMENT - outer, L.H. (14 ft. header)

1шт.

F14087

REINFORCEMENT - outer, L.H. (16 ft. header)

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

2

F14081

SKID PLATE - L.H. (14 ft. header)

1шт.

F14085

SKID PLATE - L.H. (16 ft. header) Before #8359001 Replaced by F30011 when stocks are exh.

1шт.

F30011

SKID PLATE - L.H. (16 ft. header) #8359001 and after

1шт.

3

F19989

SPLICE - skid plate

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

4

F14083

REINFORCEMENT - inner

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

5

F14082

SKID PLATE - R.H. (14 ft. header)

1шт.

F14086

SKID PLATE - R.H. (16 ft. header) Before #8359001 Replaced by F30012 when stocks are exh.

1шт.

F30012

SKID PLATE - R.H. (16 ft. header) #8359001 and after

1шт.

6

F12413

REINFORCEMENT - outer, R.H. (14 ft. header)

1шт.

F14088

REINFORCEMENT - outer, R.H. (16 ft. header)

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

F12412

SUPPORT

1шт.

114-104

BOLT,Hex, 5/16" - 24 x 1", Gr 5

- 5/16" x 1" N.F. hex.

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

129-122

NUT,5/16"-24, G5

2шт.

8

F14084

PLATE - splice

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

9

F12411

CLIP - rear

6шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

4шт.

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

129-122

NUT,5/16"-24, G5

6шт.

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

- 3/8" x 7/8" N.F. hex.

6шт.

195-104

WASHER,3/8"

- SAE std. flat 3/8"

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

10

F12410

CLIP - front

7шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.

14шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

14шт.
