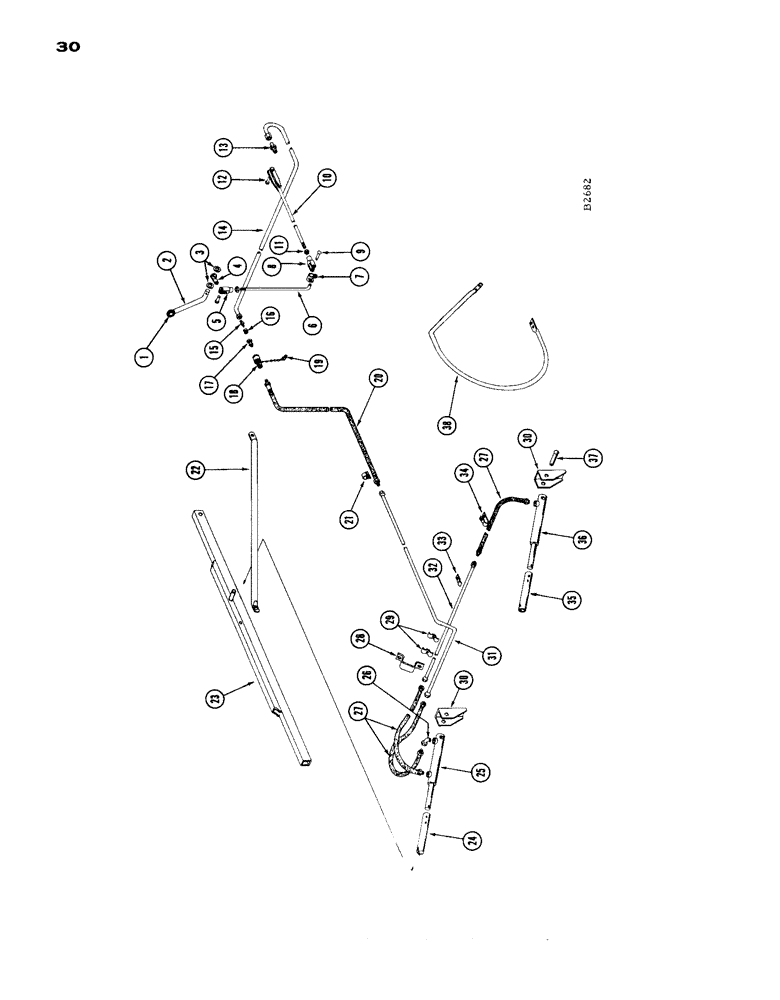

Запчасти Case IH 1660 (030) - HYDRAULIC REEL LIFT (58) - ATTACHMENTS/HEADERS

1

F21683

KNOB

- reel lift lever

1шт.

2

F13172

LEVER - control

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

195-29

WASHER,7/16"

- SAE std. 7/16"

2шт.

4

F86484

ARM - lever, reel lift

1шт.

135-54

ROLL PIN

PIN - driv-loc

1шт.

5

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - for F12318, Ref. 6

1шт.

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

6

F12381

ROD - reel lift control

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

7

F1082

BELLCRANK - reel lift

1шт.

8

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - for Ref. 7 and Ref. 10

1шт.

9

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

10

F87532

ROD - control, lower (reel lift)

1шт.

11

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" - 24 N.F. hex. jam

1шт.

12

F13790

PIN

- clevis, for F87532, Ref. 10

1шт.

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

13

F87759

ADAPTER - port (see F88156)

1шт.

14

F87533

LINE - hydraulic, Serial Range: valve-coupler

1шт.

15

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - #6FTX-S Parker

1шт.

16

F13219

SCREW

GROMMET - rubber

1шт.

17

F87147

NIPPLE - quick connect, Pioneer #4010-2

1шт.

18

F87146

COUPLER - quick connect, Pioneer #4050-2

1шт.

19

F87149

PLUG - dust, Pioneer #4005-2

1шт.

20

F12397

HOSE - hydrualic (feeder spout) see Ref. 27

1шт.

21

F12398

CLIP - hose

1шт.

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- 7/16" x 1-1/4" N.F. hex.

1шт.

92-7

LOCK WASHER,7/16"

1шт.

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

1шт.

22

F87398

BRACE - reel arm (see page 15)

2шт.

23

F88606

ARM - reel support, R.H. (see page 15) Replaces F87390

1шт.

F87393

ARM - reel, L.H. (Replaced by F88607 when stock is exh.)

1шт.

F88607

ARM - reel, L.H. (see page 15) Replaces F87393

1шт.

24

F14893

EXTENSION - ram, R.H. (Replaces F13501)

1шт.

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.F. hex.

1шт.

131-58

LOCK NUT,1/2"-20, G5

LOCKNUT - 1/2" Esna #21-NTE-080

1шт.

25

F84728

PUSH ROD

RAM - R.H., reel lift (Replaced by F88631)

1шт.

F88626

COUPLING - restricted

1шт.

F88631

CYLINDER ASSY.

RAM - R.H., reel lift (Replaces F84728 and F88626 when stocks are exhausted)

1шт.

26

217-8015

ELBOW - 1/4" CS-S-90deg. Parker (Before #8334601)

1шт.

27

F12397

HOSE - hydraulic (lift rams) see Ref. 20

3шт.

28

F12399

CLAMP - double, hose

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-104

NUT,1/4"-20, G5

2шт.

29

F12067

CLIP - double, for Ref. 31 and 32

2шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-104

NUT,1/4"-20, G5

2шт.

30

FF12401

BRACKET - ram mounting

2шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

92-5

LOCK WASHER,5/16"

3шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

3шт.

31

F87347

LINE - hydraulic (14 ft. header) feeder spout

1шт.

F87348

LINE - hydraulic (16 ft. header) feeder spout

1шт.

F87349

LINE - hydraulic (19 ft. header) feeder spout

1шт.

F30040

LINE - hydraulic (20 ft. header) feeder spout

1шт.

32

F86488

LINE - hydraulic (14 ft. header), Serial Range: ram-ram

1шт.

F86490

LINE - hydraulic (16 ft. header), Serial Range: ram-ram

1шт.

F87346

LINE - hydraulic (19 ft. header), Serial Range: ram-ram

1шт.

F30039

LINE - hydraulic (20 ft. header), Serial Range: ram-ram

1шт.

33

A27033

CLIP - hydraulic line, L.H. side

2шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

195-18

WASHER,1/4"

FLATWASHER - 1/4"

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-104

NUT,1/4"-20, G5

2шт.

34

F12398

CLIP - hose, L.H. side

2шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

95-4

WASHER,1/4"

- flat 1/4"

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-104

NUT,1/4"-20, G5

2шт.

35

F14894

EXTENSION - ram, L.H. (Replaces F13502)

1шт.

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.F. hex.

1шт.

131-58

LOCK NUT,1/2"-20, G5

LOCKNUT - 1/2" Esna #21-NTE-080

1шт.

36

F86479

RAM - L.H., reel lift

1шт.

37

MT2854S

PIN - for reel lift rams

2шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

38

F87388

LOOP - divider, L.H.

1шт.

F87387

LOOP - divider, R.H.

1шт.

F87180

SEAL

KIT - for Ref. 25 (Includes 1 back-up washer, 1 seal washer, 1 piston ring and 4 "O"rings) not shown

1шт.

F86628

KIT

SEAL KIT - for Ref. 36 (Includes 1 backup washer, 1 "O" ring, 1 seal, 1 lock ring, 1 seal washer and 1 screw) not shown

1шт.
