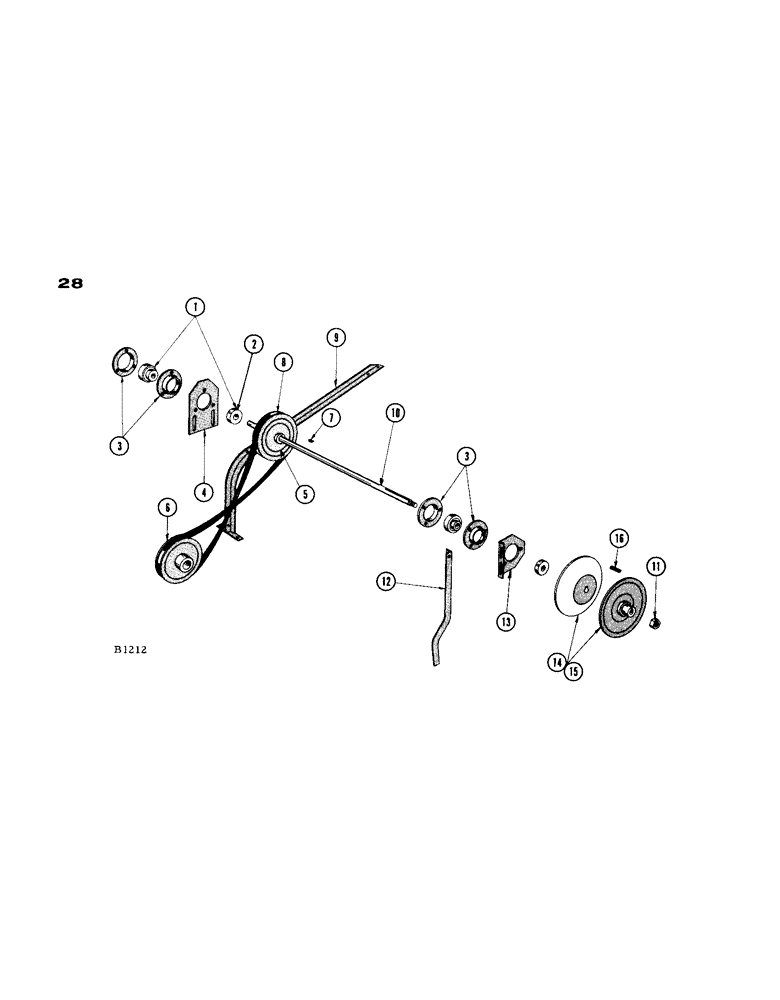

Запчасти Case IH 1660 (028) - DRAPER PICKUP, PICKUP DRIVE JACKSHAFT (58) - ATTACHMENTS/HEADERS

1

3074CSA

BALL BEARING

- jackshaft

2шт.

2

F62108

COLLAR

1шт.

3

B18282

FLANGE

- for Ref. 1

4шт.

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

6шт.

4

F8529

BRACKET - bearing, R.H. end of jackshaft

1шт.

111-324

CARRIAGE BOLT,Short NK, 3/8"-16 x 7/8", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

195-522

WASHER,5/16"

- 3/8" SAE std. flat

2шт.

129-123

NUT,3/8"-24, G5

2шт.

O418L

WASHER - for ref. 4

2шт.

5

F77186

SHEAVE - (6-1/2") roller drive

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

6

F81889

SHEAVE - (8") rear roller drive

1шт.

7

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

2шт.

135-360

PULLEY

PIN - Type "A" driv-loc, 1/4" x 1-3/4"

1шт.

8

F8549

"V" BELT - rear roller drive

1шт.

9

F88429

ANGLE - mtg., L.H. (Replaces F87800 when stock is exhausted)

1шт.

F87800

ANGLE - mtg., L.H. (Replaced by F88429)

1шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

2шт.

195-104

WASHER,3/8"

- plain 3/8"

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

F8551

JACKSHAFT - (1" rd. x 43-1/8" long) 14 ft. header

1шт.

F9796

JACKSHAFT - (1" rd. x 55-1/8" long) 16 ft. header

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

195-109

WASHER,3/4"

- plain 3/4"

1шт.

11

131-45

X

NUT - 3/4" #49 Esna

1шт.

12

F14048

ANGLE - outer, jackshaft support

1шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

2шт.

129-121

NUT,1/4"-28, G5

2шт.

13

F8544

BRACKET - bearing, L.H. end of jackshaft Commondities same as Ref. 4.

1шт.

14

F1313

SHEAVE

HALF - variable speed (drives jackshaft) driven

1шт.

15

F1314

SHEAVE HALF - variable speed (drives jackshaft) driven

1шт.

16

F8896

KEY - (1/4" sq. x 3-3/4" long) for Ref. 14 and 15

1шт.

O4227CH

SNAP RING - for Ref. 14 and 15 (not shown)

1шт.
