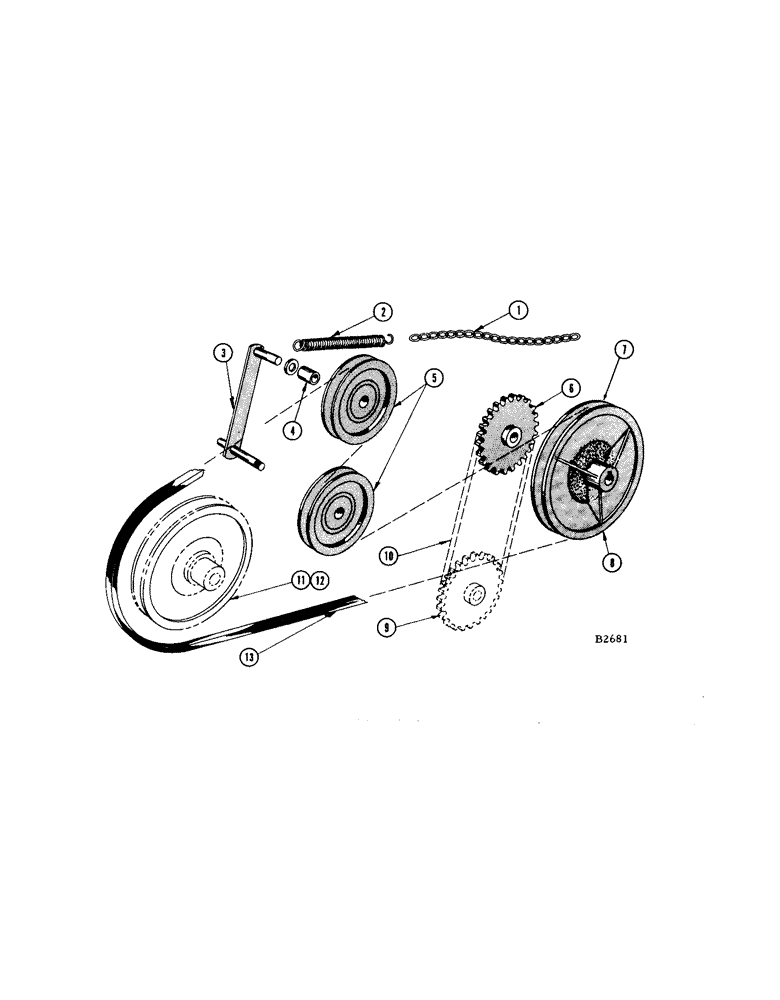

Запчасти Case IH 1660 (028[A]) - DRAPER PICKUP, JACKSHAFT DRIVE (58) - ATTACHMENTS/HEADERS

1

O1876CH1

CHAIN - tightener tension

1шт.

2

146EB

SPRING - tightener tension

1шт.

3

F77600

BRACKET - tightener, jackshaft drive

1шт.

132-89

COTTER PIN,3/16" x 3/4"

Pin, Split (Cotter), 3/16" x 3/4"

1шт.

4

11524K

BUSHING - (1" O.D. x 1-1/2" long) for F13064 sheave

2шт.

5

F13064

SCREW

SHEAVE - idler and tightener

2шт.

14-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

BOLT - 5/8" x 3-3/4" N.F. hex.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

2шт.

6

F87368

SPROCKET - (15T) on reel drive jackshaft

1шт.

7

F1970

SHEAVE HALF - stationary

1шт.

8

F1971

SHEAVE HALF - movable

1шт.

9

F87365

SPROCKET - (26T) drives reel drive jackshaft (reference) (Before #8366851)

1шт.

F98027

SPROCKET - reel drive (#8366851 and after)

1шт.

10

O895CB

X

CHAIN - pickup main drive (NSS - see chain page)

1шт.

11

F1313

SHEAVE

HALF - female

1шт.

12

F1314

SHEAVE HALF - male

1шт.

13

F14230

BELT

"V" BELT - jackshaft drive

1шт.
