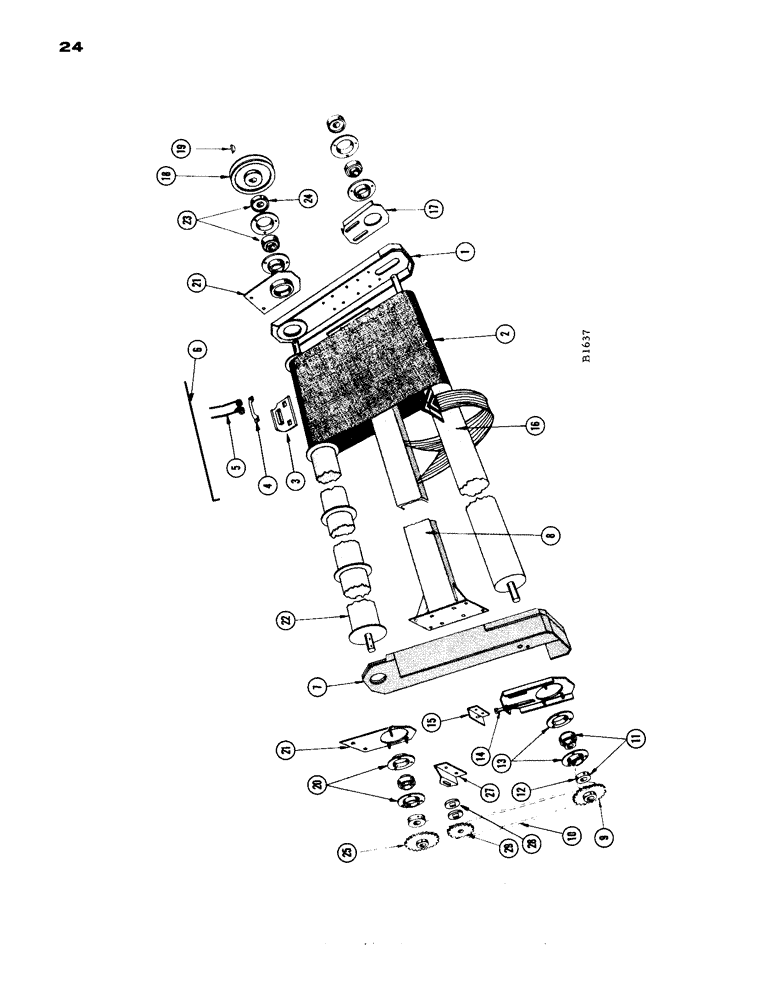

Запчасти Case IH 1660 (024) - 4 BELT DRAPER PICKUP (58) - ATTACHMENTS/HEADERS

1

F77368

END SHEET - L.H.

1шт.

2

F91853

BELT, CONVEYOR 57.13" L, (42 fingers) 57.13" L

4шт.

3

F10861

CLIP - hold down

42шт.

121-6

BOLT - 1/4" x 3/4" slotted elevator w/o ribs

84шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

84шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

84шт.

4

F15245

RETAINER - spring finger

42шт.

5

F15243

SPRING

FINGER - spring

42шт.

F91854

LACING KIT - belt

1шт.

6

F22395

PIN - hinge

1шт.

NSS

NOT SOLD SEPARAT

LACING - belt

2шт.

NSS

NOT SOLD SEPARAT

PIN - pilot

1шт.

7

F87793

END SHEET - R.H.

1шт.

8

F87811

TUBE - torque

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

111-354

BOLT

- 3/8" x 1-1/4" rhd. sh. sq. nk.

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

195-104

WASHER,3/8"

- SAE std. flat 3/8"

8шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

9

F77273

SPROCKET - (10T) front conveyor roller drive, R.H. end

1шт.

10

F8655

X

CHAIN - lower roller drive (NSS - see chain page)

1шт.

11

3074CSA

BALL BEARING

- front conveyor roller shaft

2шт.

12

F62108

COLLAR

1шт.

13

B18282

FLANGE

- for Ref. 11

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

6шт.

92-5

LOCK WASHER,5/16"

6шт.

14

F9423

SCREW - adjusting

2шт.

15

F77596

ANGLE - adjusting, for F9423 screw

2шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

16

F77269

ROLLER - front, conveyor

1шт.

135-360

PULLEY

PIN - driv-loc, 1/4" x 1-3/4"

2шт.

17

F77369

SCREW

PLATE - bearing, front adjusting

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

92-5

LOCK WASHER,5/16"

4шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" SAE std. flat

4шт.

18

F81889

SHEAVE - rear roller drive, L.H. end

1шт.

135-360

PULLEY

PIN - driv-loc Type "A", 1/4" x 1-3/4"

1шт.

19

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

20

B18282

FLANGE

- for 3074CSA bearing

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

6шт.

92-5

LOCK WASHER,5/16"

6шт.

21

F77175

BRACKET - bearing, for Ref. 22

2шт.

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

4шт.

425-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

22

F77171

ROLLER - rear, conveyor

1шт.

135-360

PULLEY

PIN - driv-loc, 1/4" x 1-3/4"

1шт.

23

3074CSA

BALL BEARING

- rear conveyor roller shaft

2шт.

24

F62108

COLLAR

1шт.

25

F77273

SPROCKET - (10T) rear conveyor roller drive, R.H. end

1шт.

F8549

"V" BELT - rear roller drive (not shown)

1шт.

27

F8658

BRACKET - tightner, conveyor chain drive

1шт.

11-1032

X,Short NK, 5/8"-11 x 2", G2

BOLT - 5/8" x 2" rhd. sq. nk.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

28

O2287CS

WASHER - (1-5/16" O.D. x 21/32" I.D. sq. hole) for Ref. 27

2шт.

29

F8659

SPROCKET - (11T) converyor chain tightener

1шт.
