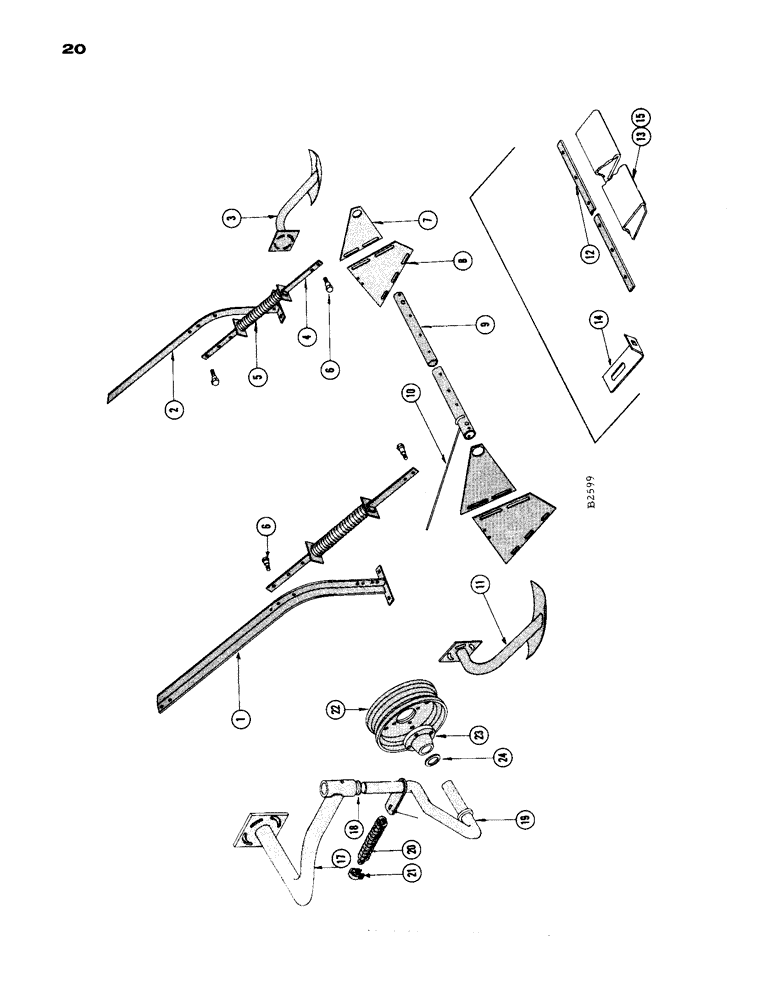

Запчасти Case IH 1660 (020) - DRAPER PICKUP, SUPPORTS, CAST WHEEL ATTACHMENT (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
F88428
ANGLE - mtg., R.H. (Replaces F87799 when stock is exh.)
1шт.
F87799
ANGLE - mtg., R.H. (Replaced by F88428)
1шт.
129-123
NUT,3/8"-24, G5
4шт.
195-104
WASHER,3/8"
- SAE std. flat 3/8"
4шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
2
F88429
ANGLE - mtg., L.H. (Replaces F87800 when stock is exhausted)
1шт.
F87800
ANGLE - mtg. L.H. (Replaced by F88429)
1шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
195-104
WASHER,3/8"
- SAE std. flat 3/8"
2шт.
3
F77372
RUNNER - L.H.
1шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
4шт.
92-6
LOCK WASHER,3/8"
4шт.
95-6
WASHER,3/8"
- plain 3/8"
4шт.
4
F77374
SUPPORT ARM - spring seat
4шт.
114-104
BOLT,Hex, 5/16" - 24 x 1", Gr 5
- 5/16" x 1" N.F. hex.
2шт.
129-122
NUT,5/16"-24, G5
2шт.
5
V13820
SPRING - for support arms
2шт.
6
O156CB
BOLT - shoulder, connects support arms
4шт.
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
7
F9981
BRACKET - windguard pipe
2шт.
114-304
BOLT,Hex, 7/16" - 20 x 2-1/4", Gr 5
Hex, 7/16"-20 x 2 1/4", G5
2шт.
425-117
NUT,7/16"-20, G5
- 7/16" N.F. hex.
4шт.
8
F9631
BRACKET - beater support
2шт.
114-102
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5
4шт.
129-122
NUT,5/16"-24, G5
4шт.
195-103
WASHER,5/16"
- SAE std. flat 5/16"
8шт.
9
F9638
PIPE - windguard (4 belt draper)
1шт.
F22283
PIPE - windguard (5 belt draper)
1шт.
113-321
BOLT,Hex, 7/16" - 14 x 4", Gr 5
2шт.
230-4117
LOCK NUT,7/16"-14, GA
NUT - 7/16" gripco jam
4шт.
132-99
COTTER PIN,3/16" x 2"
Pin, Split (Cotter), 3/16" x 2"
2шт.
10
F9639
TINE - windguard (19 used on 5 belt draper)
15шт.
11
F77373
RUNNER - R.H.
1шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
4шт.
92-6
LOCK WASHER,3/8"
4шт.
95-6
WASHER,3/8"
- SAE std. flat 3/8"
4шт.
12
F22274
WIPER - finer
2шт.
14-410
SCREW,Hex, 1/4" - 28 x 5/8", Gr 5
BOLT - 1/4" x 5/8" N.F. hex.
13шт.
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
13шт.
95-4
WASHER,1/4"
- plain 1/4"
13шт.
25-114
NUT,1/4"-28, G5
- 1/4" N.F. hex.
13шт.
129-121
NUT,1/4"-28, G5
6шт.
13
F22273
SHIELD - sickle drive (Replaced by F14816)
2шт.
14
F14802
CLIP - finger wiper shield (Replaces F12150)
4шт.
15
F14816
SHIELD - sickle drive (Replaces F22273 when stock is exh.)
2шт.
F14136
ANGLE - finer wiper (pick-up header)
2шт.
111-324
CARRIAGE BOLT,Short NK, 3/8"-16 x 7/8", G2
BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2
14шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
14шт.
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
14шт.
17
F78891
ARM - L.H. support, gauge wheel
1шт.
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING - 1/8" str.
1шт.
F78892
ARM - R.H. support, gauge wheel
1шт.
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING - 1/8" str.
1шт.
19
F86973
AXLE - gauge wheel
2шт.
18
B18275
WASHER
- (1-1/2" O.D. x 1-1/32" I.D. #12 ga.) axle
4шт.
132-307
COTTER PIN,1/4" x 1 3/4"
PIN, Split (Cotter), 1/4" x 1 3/4"
4шт.
20
O2818BF
SPRING - gauge wheel axle
2шт.
21
F12970
CLAMP - spring
2шт.
14-420
BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5
2шт.
25-114
NUT,1/4"-28, G5
- 1/4" N.F. hex.
4шт.
22
F11478
WHEEL - gauge, 2 disc halves, for 12 x 3.50 semi- pneumatic tire
2шт.
14-510
SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd
BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd
8шт.
25-115
NUT,5/16"-24, G5
- 5/16" NF hex
8шт.
23
F1355
HUB - gauge wheel
2шт.
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - 1/8" str.
2шт.
14-514
BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd
8шт.
25-115
NUT,5/16"-24, G5
- 5/16" NF hex
8шт.
24
A28764
WASHER - (1-3/4" O.D. x 1-1/32" I.D. #16 ga.) axle
6шт.
Выбрано товаров: 73
