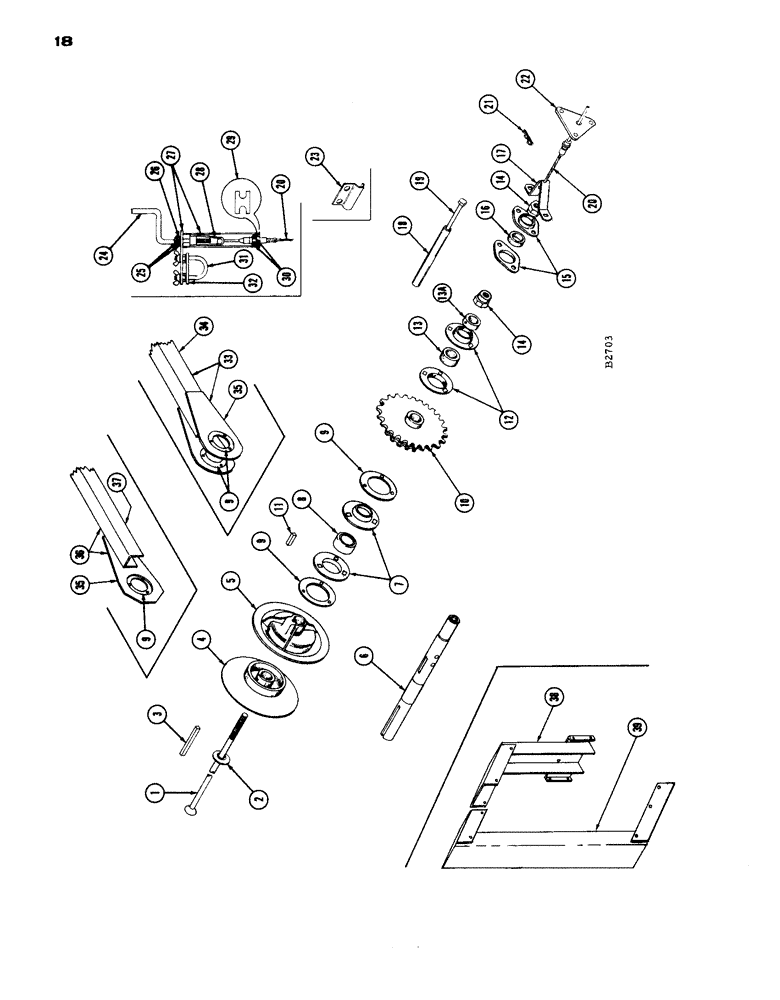

Запчасти Case IH 1660 (018) - REMOTE CONTROLLED V. S. DRIVE, FOR STD. REELS AND DRAPER PICKUP (58) - ATTACHMENTS/HEADERS

1

F13524

SCREW

SHAFT - For F13519, Ref. 6

1шт.

2

F13523

SCREW

WASHER - thrust

1шт.

3

O818B

KEY

- 5/16" sq. x 3-3/4", for Ref. 4, 5 and 6

1шт.

4

F1971

SHEAVE HALF - movable

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" grease

1шт.

5

F1970

SHEAVE HALF - stationary

1шт.

6

F13519

SCREW

JACKSHAFT - reel

1шт.

7

F62225

FLANGE

- bearing

2шт.

8

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - used w/o collar

1шт.

9

F13520

SPACER - for Ref. 33, 35 or 36

2шт.

10

F87397

SPROCKET ASSY.

SPROCKET - (24T and 38T) reel drive (Before #8366851)

1шт.

F98028

SPROCKET - reel drive (#8366851 and after)

1шт.

181-809

SCREW - 1/4" x 3/4" sq. hd. cup pt. N.C. set

1шт.

F87368

SPROCKET - (15T) for draper pickup

1шт.

11

O2237HT

KEY - 5/16" sq. x 1", for Ref. 6 and 10

1шт.

12

F62225

FLANGE

- bearing

2шт.

111-342

BOLT - 3/8" x 1" rhd. sq. nk. Grade 5 (3/4" thd.)

3шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

13

F82927

RACE

BEARING

1шт.

13a

F62234

COLLAR

1шт.

14

F13525

SCREW

NUT - adjusting, for Ref. 1

2шт.

15

F13526

FLANGED BEARING

FLANGETTE - for Ref. 16

2шт.

16

K3380

BEARING

1шт.

17

F13527

SCREW

BRACKET - cable

1шт.

18

O30958HT

SPACER - for Ref. 12 and 22

3шт.

19

113-251

BOLT,Hex, 3/8" - 16 x 7-1/2", Gr 5

- 3/8" x 7-1/2" N.C. hex.; LW (192-21) nut (129-103)

3шт.

20

F13530

CABLE - control, 14 ft. header

1шт.

F13531

SCREW

CABLE - control, 16 ft. and 19 ft. headers

1шт.

F30047

CABLE - control, 20 ft. header

1шт.

21

136-6

HAIRPIN - cotter, for Ref. 20

1шт.

22

F13528

SCREW

PLATE - mounting

1шт.

23

F13539

CLAMP - cable (14' - 16' - 19' hdr.)

1шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

LW (92-4) Nut (129-101) Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

24

F87370

CRANK - w/washer

1шт.

25

D26421

WASHER

2шт.

26

F13537

THRUST BEARING

BEARING - thrust

1шт.

27

F87372

HOUSING - crank

1шт.

28

F87371

CLEVIS and NUT

1шт.

29

F13538

SPACER

2шт.

30

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5; LW (192-19) nut (129-101)

2шт.

31

F14109

"U" BOLT

1шт.

195-521

WASHER,5/16", SAE

- 5/16" flat

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

129-419

WING NUT,5/16"-18

- 5/16" N.C.

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

32

F14110

PLATE - "U" bolt

1шт.

33

F87393

ARM - reel, L.H. (14' - 16' - 19') Replaced by F88607 when exh.

1шт.

34

F88607

ARM - reel, L.H. (14' - 16' - 19') Replaces F87393

1шт.

F88610

ARM - reel, R.H. (20 ft. hdr.)

1шт.

35

F30046

PLATE - pivot (for F88607, F88610 or F30067)

2шт.

36

F87369

BRACE - jackshaft, pick-up hdr. (Replaced by F30067 when exh.)

1шт.

37

F30067

BRACE - jackshaft, pick-up hdr. (Replaces F87369)

1шт.

C3690S

SPACER - (3/8" x 1-1/4" long) for F87369 or F30067

1шт.

38

F87366

WRAPPER - upper front, reel drive chain shield (14' - 16' - 19')

1шт.

F88598

WRAPPER - upper front, reel drive chain shield (20')

1шт.

39

F13576

SCREW

WRAPPER - rear, reel drive chain shield

1шт.

F13565

SCREW

CHAIN - drives reel drive jackshaft (NSS - See Chain Page, for standard headers) (Before #8366851)

1шт.

F52649

X

CHAIN - drives reel drive jackshaft (NSS - See Chain Page, for pick-up header) (Before #8366851)

1шт.

F30503

CHAIN - drives reel drive jackshaft (NSS - See Chain Page) (#8366851 and after)

1шт.
