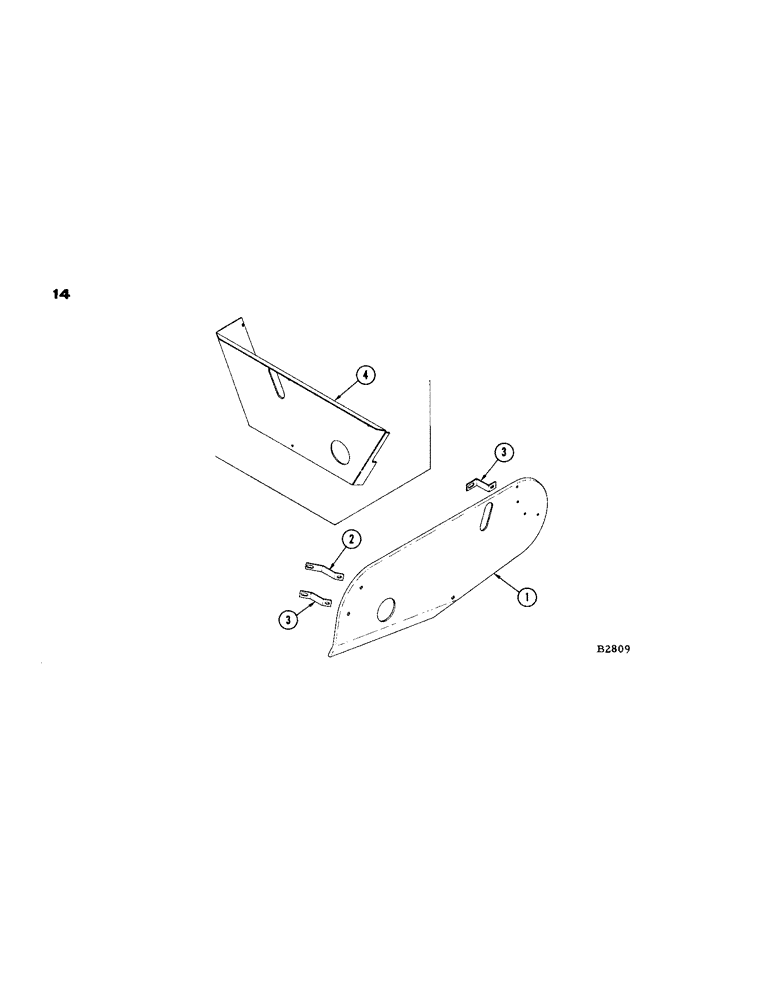

Запчасти Case IH 1660 (014) - REEL AND AUGER GUARD (58) - ATTACHMENTS/HEADERS

1

F78831

SHIELD - auger chain (14' - 16' - 19' hdr.)

1шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

195-102

WASHER,1/4"

- SAE std. 1/4"

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

2

F10547

CLIP - auger chain shield

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" SAE std.

1шт.

92-5

LOCK WASHER,5/16"

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

3

F10548

CLIP - chain shield

2шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

2шт.

195-102

WASHER,1/4"

- SAE std. 1/4"

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

129-121

NUT,1/4"-28, G5

2шт.

4

F88601

SHIELD - auger chain (20 ft. hdr.)

1шт.
