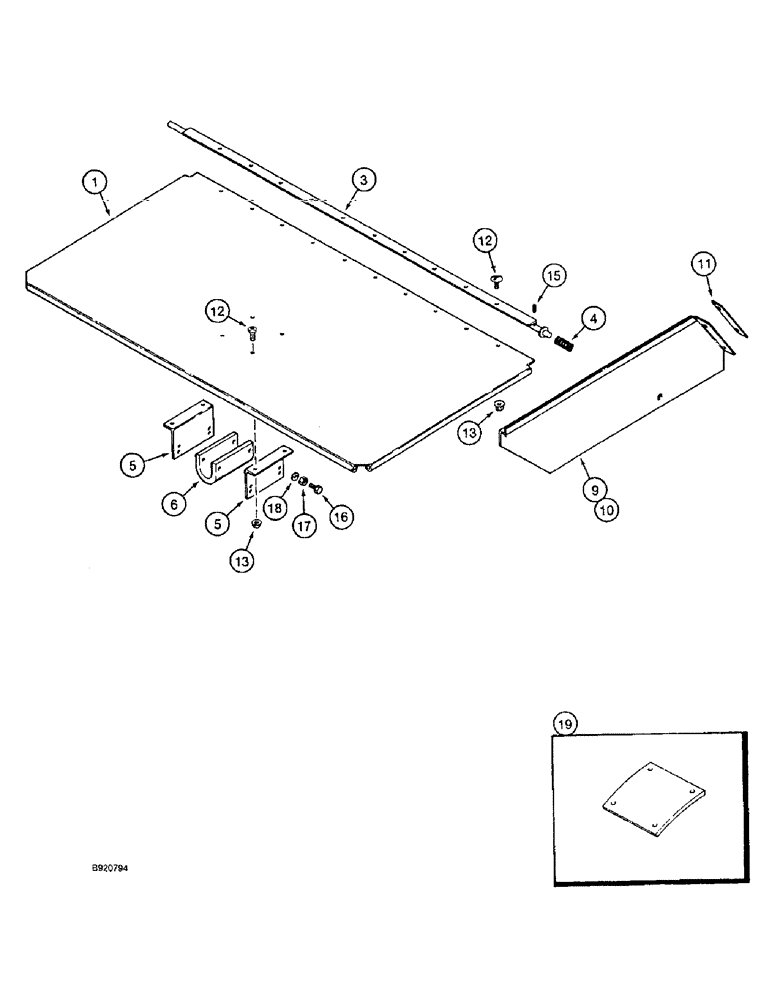

Запчасти Case IH 1644 (5-22) - STEERING AXLE SHIELD (04) - STEERING

1

1325596C2

SHIELD

steering axle

1шт.

3

195450C2

SUPPORT ASSY.

HINGE axle shield

1шт.

4

203942C1

SPRING

shield pivot

1шт.

5

183093C1

BRACKET

shield support

2шт.

6

183094C1

CUSHION

SUPPORT axle shield

1шт.

9

1325374C3

COVER

PLATE hood extension, left hand

1шт.

10

1325375C3

COVER

PLATE hood extension, right hand

1шт.

11

1325376C1

PLATE

BRACKET hood extension retaining

2шт.

12

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

16шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

15

38-1814

LOCK PIN,1/8" x 7/8", Slotted

1/8" x 7/8", Slotted

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

17

232-4115

LOCK NUT,5/16"-18, GC

4шт.

18

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

19

1345126C1

CUSHION

axle shield

1шт.

20

1968976C1

SEALING STRIP

TRIM edge, not shown

2шт.
