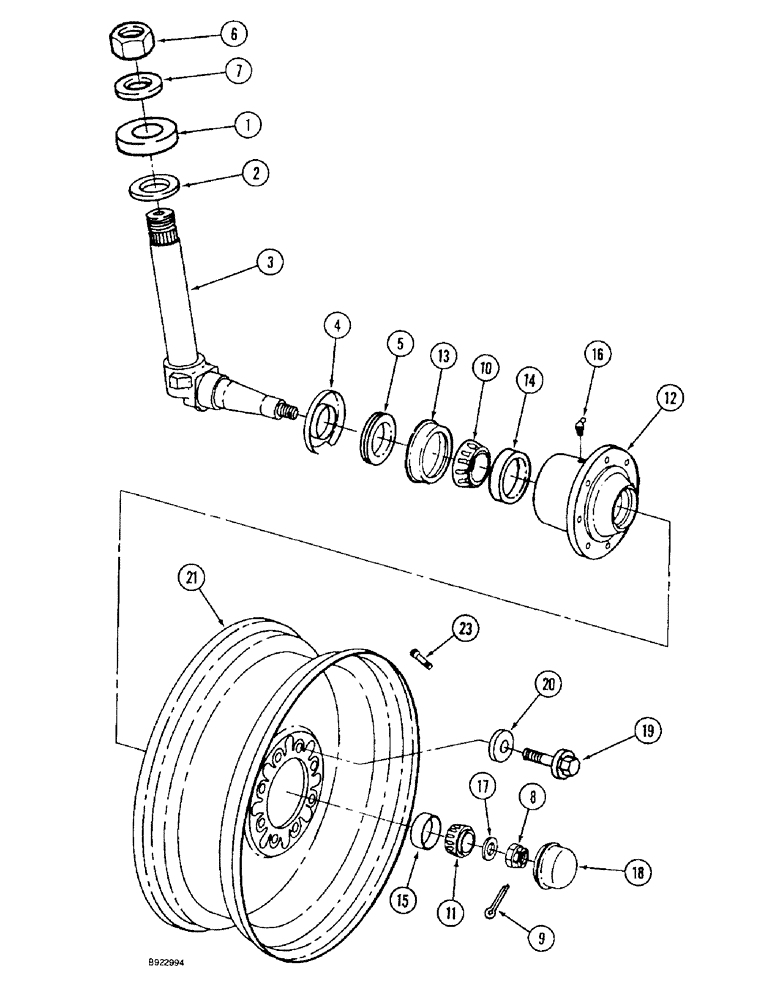

Запчасти Case IH 1644 (5-20) - STEERING KNUCKLE, HUB AND WHEELS, NONADJUSTABLE AND (04) - STEERING
№
Артикул
Название
Примечание
Количество
1
185106C91
BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W
thrust knuckle
2шт.
2
15943DA
SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk
Felt, Special knuckle pivot
2шт.
3
1315374C1
STEERING KNUCKLE
2шт.
4
1259522C1
SHIELD
dust
1шт.
5
491641C1
SEAL
hub
1шт.
6
425-1522
JAM NUT,Jam, 1 3/8"-12, G5
hex, jam, 1-3/8 inch NF
2шт.
7
495-81218
WASHER,35.71mm ID x 69.85mm OD x 1.37mm Thk
flat, 1-13/32 x 2-3/4 x 3/64 inch
2шт.
8
1259683C1
NUT
hex, slotted, 30 mm - 1.5
2шт.
9
732-6363
COTTER PIN,M6.3 x 63
6 x 63 mm
2шт.
10
ST753B
BEARING ASSY,66.67mm ID x 22mm W
tapered roller
2шт.
11
130504H
ROLLER BEARING,42.887 mm ID x 25.48 mm
tapered roller
2шт.
12
1259528C1
HUB
ASSEMBLY wheel, Includes: Ref. 13 - 16
2шт.
13
1264549C1
SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk
hub seal
1шт.
14
A26744
BEARING CUP,110.025 mm OD x 18.875 mm
CUP tapered roller, inner, 4-5/16 inch OD
1шт.
15
130503H
BEARING CUP
CUP tapered roller, outer, 3-17/64 inch OD
1шт.
16
219-17
LUBE NIPPLE,3/16" NPTF
2шт.
16
219-404
LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF
2шт.
17
896-12030
WASHER,33mm ID x 56mm OD x 5mm Thk
flat, 33 x 56 x 5 mm, hardened
2шт.
18
189425C1
HUB CAP
wheel hub
2шт.
19
414064C1
BOLT,Hex, 9/16" - 18 x 1 1/2"
BOLT hex flange, special wheel
16шт.
20
396-41066
WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk
flat, 21/32 x 1-1/2 x 3/16 inch, hardened, use with 186642C2 wheel only
16шт.
21
186642C2
WHEEL
18.4 - 16 inch tire
2шт.
21
672128R91
WHEEL
11.00 x 16 and 12.4 x 16 inch tire
2шт.
21
188759C2
RIM
WHEEL WHEEL 10 x 24 inch (for 11.25 x 24 inch tire)
2шт.
21
1541719C1
RIM
WHEEL WHEEL 12 x 24 inch, for 14.9 x 24 inch tire, Replaces 376196R91
2шт.
22
1970153C1
RIM
WHEEL WHEEL drive, steering for 16.9 x 26 and 18.4 x 26 tire, not shown
2шт.
23
536705R91
VALVE
inflation, 5/8 inch diameter
2шт.
23
179482C1
VALVE STEM
inflation, 7/16 inch diameter
2шт.
Выбрано товаров: 28
