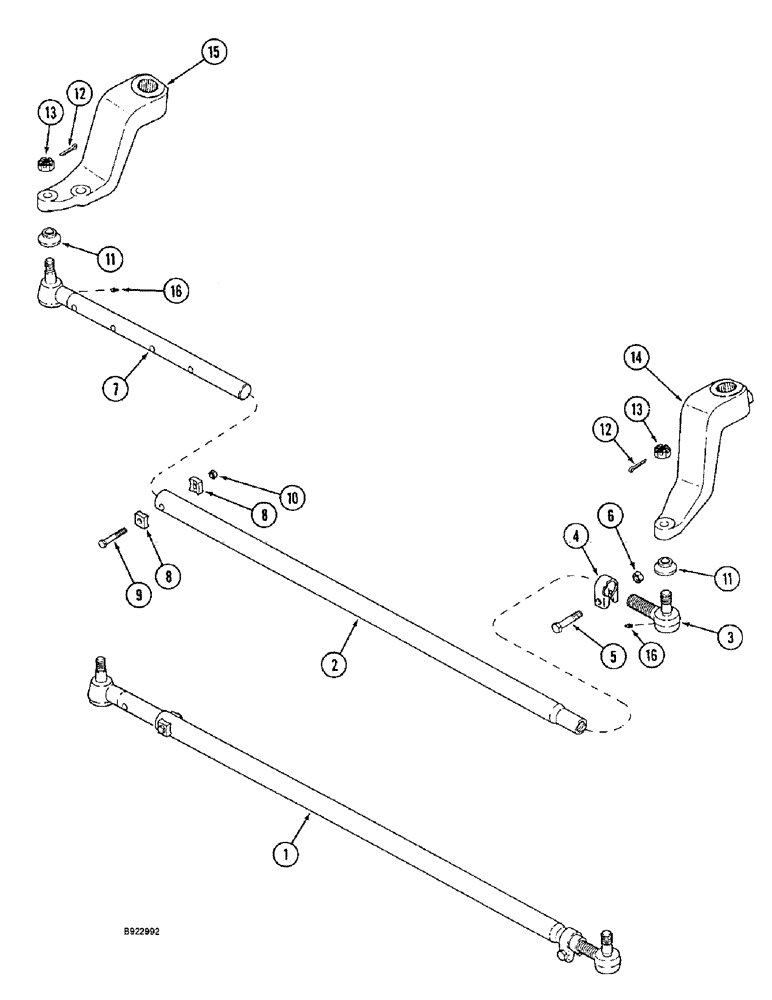

Запчасти Case IH 1644 (5-18) - STEERING TIE ROD, ADJUSTABLE AXLE, WITHOUT POWER GUIDE AXLE (04) - STEERING

1

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY tie, order components, Includes: Ref. 2 - 10

1шт.

2

1300170C1

TUBE

tie rod for 92 to 120 inch axle

1шт.

2

185174C1

TUBE

TUBE for 67 to 91 inch axle

1шт.

3

1302687C1

JOINT

END tie rod, right hand, use with 1300170C1, Ref. 2 tube

1шт.

3

179228C1

END ASSY.

tie rod, right hand, use with 185174C1, Ref. 2 tube

1шт.

4

225265R1

CLAMP

tie rod, right hand, Includes: Ref. 5 and 6

1шт.

5

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

1шт.

6

231-4118

LOCK NUT,1/2"-13, GB

hex, self-locking, 1/2 inch NC

1шт.

7

1302686C1

JOINT

END tie rod, left hand, use with 1300170C1, Ref. 2 tube

1шт.

7

193371C1

END ASSY.

tie rod, left hand, use with 185174C1, Ref. 2 tube

1шт.

8

A43369

CLAMP

tie rod, left hand

1шт.

9

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

1шт.

11

382562R1

SEAL

end

2шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

2шт.

13

425-1310

SLOTTED NUT,5/8"-18, G5

2шт.

14

193912C3

STEERING ARM

steering, right hand

1шт.

15

193911C3

ARM

steering left hand

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

If used

2шт.

10

232-4636

LOCK NUT,3/8"-24, GC

1шт.
