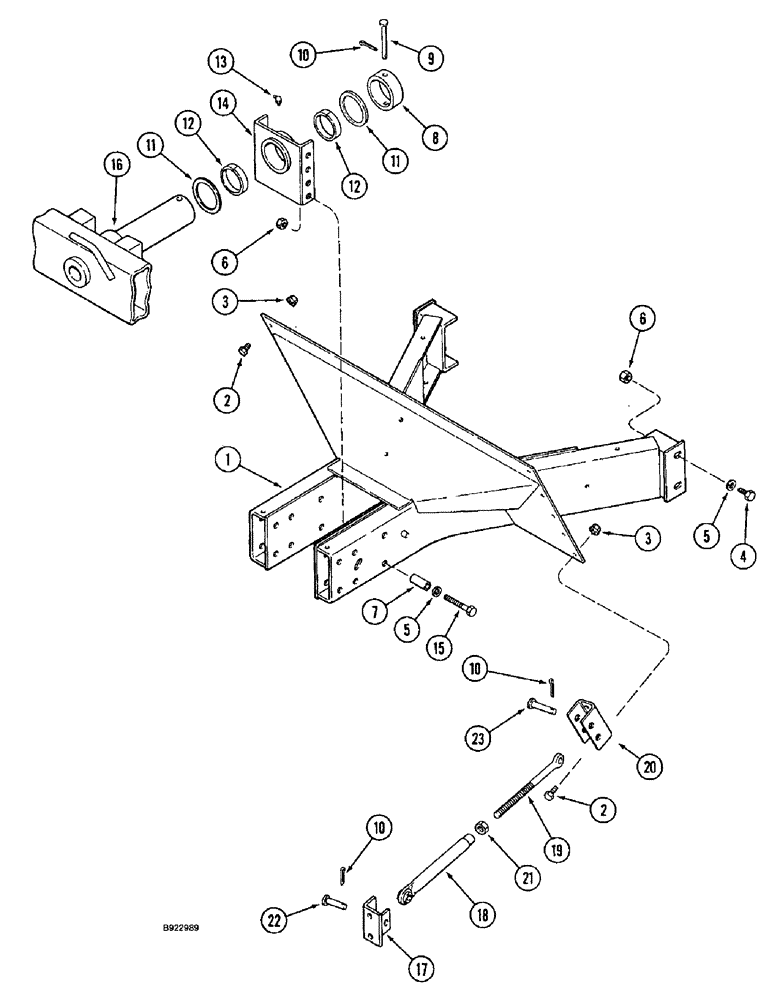

Запчасти Case IH 1644 (5-12) - STEERING AXLE SUPPORT, ADJUSTABLE AXLES (04) - STEERING

1

1308816C2

SUPPORT

steering axle

1шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

10шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

4

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

BOLT hex, 3/4 NC x 1-1/2 inch, grade 8

4шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

8шт.

7

177748C1

SPACER

13/16 x 1-1/4 x 2-13/16 inch

12шт.

8

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

axle pivot

1шт.

9

439-11288

HEADED PIN,19.05mm OD x 139.7mm L

headed, 3/4 x 5-1/2 inch, grade 2

1шт.

10

432-1620

COTTER PIN,1/4" x 1 1/4"

4шт.

11

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

flat, special axle pivot

3шт.

12

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING axle pivot

2шт.

13

219-17

LUBE NIPPLE,3/16" NPTF

2шт.

14

182792C93

SUPPORT ASSY.

pivot, front, includes 182794C1, Ref. 12 bushing

1шт.

15

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

16

REF

INSTRUCTION

AXLE steering, parts list Figure 5-14

1шт.

17

183494C1

SUPPORT ASSY.

BRACKET adjusting rod, rear

2шт.

Used with 92 to 120 inch and 108 to 120 inch adjustable axles only.

1шт.

18

181444C1

TIE-ROD,1" - 8

BODY adjusting rod, rear

2шт.

Used with 92 to 120 inch and 108 to 120 inch adjustable axles only.

1шт.

19

181442C3

EYEBOLT,1" - 8 x 381mm

BOLT, EYE ROD adjusting rear

2шт.

Used with 92 to 120 inch and 108 to 120 inch adjustable axles only.

1шт.

20

1541603C1

SUPPORT

BRACKET adjusting rod, front

2шт.

Used with 92 to 120 inch and 108 to 120 inch adjustable axles only.

1шт.

21

425-1016

NUT,1"-8, G5

Hex

2шт.

22

439-11456

HEADED PIN,22.23mm OD x 88.9mm L

headed, 7/8 x 3-1/2 inch, grade 2

2шт.

23

23729R1

HEADED PIN,22.23mm OD x 76.2mm L

2шт.
