Запчасти Case IH 1644 (5-06) - STEERING SYSTEM, PUMP TO CYLINDER (04) - STEERING

1

1542690C1

PUMP

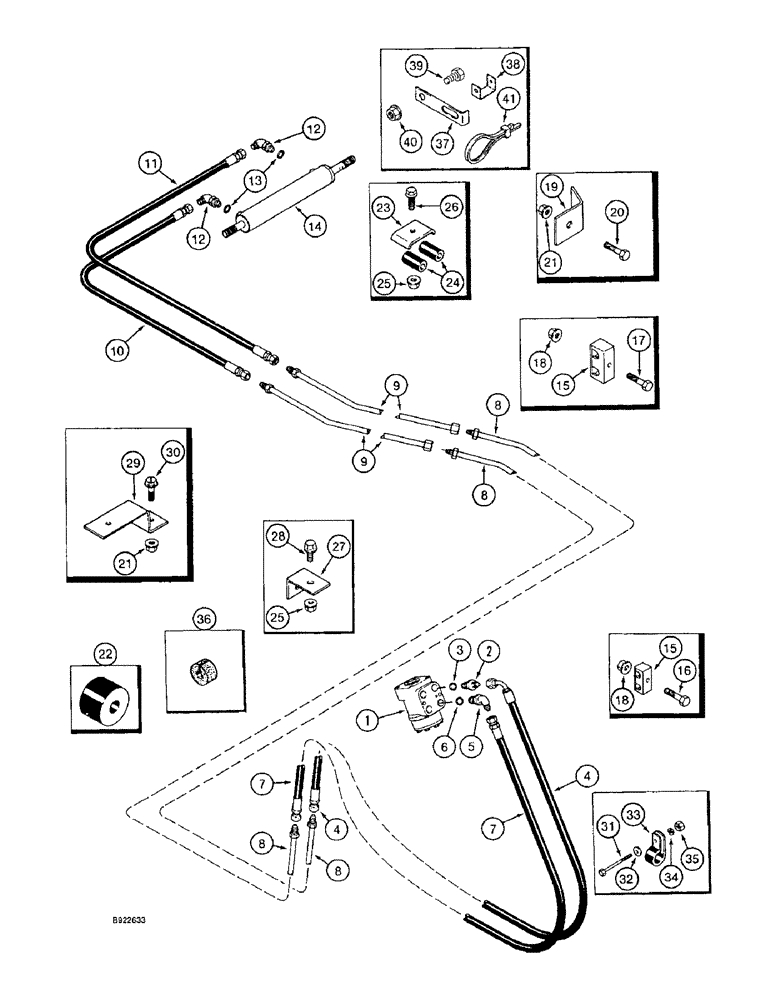

ASSEMBLY steering hand hydrostatic, parts list Figure 5-8

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16 - 18 flare x 3/4 - 16 inch O-ring boss, Includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

111174A1

HOSE ASSY.

135 inch (3420 mm) long, steering hand pump, left hand

1шт.

5

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

139519C2

HYDRAULIC HOSE

135 inch (3429 mm) long, steering hand pump, right hand

1шт.

8

1541565C1

TUBE

steering, intermediate

2шт.

9

196791C1

HYD TUBE,0.375" OD

steering, rear

2шт.

10

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

68 inch (1727 mm) long, cylinder, lower

1шт.

11

178962C1

HOSE ASSY.

60 inch (1524 mm) long, cylinder, upper

1шт.

11

183920C1

HOSE ASSY.

77 inch (1956 mm) long, cylinder, upper, 120 inch axle

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16 - 18 inch flare x adj O-ring boss, Includes: Ref. 13

2шт.

14

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

2 (51) ID x 9 inch (229 mm) stroke steering, without power guide axle, parts list Figure 5-10

1шт.

14

127913C93

STEERING CYLINDER

ASSEMBLY 2-1/4 (57) ID x 9 inch (229 mm) stroke steering, with power guide axle, parts list Figure 5-26

1шт.

15

183825C1

CLAMP

steering tube, for 3/8 inch tube

3шт.

16

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

hex, 1/4 NC x 1-3/4 inch

1шт.

17

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

19

178960C1

BRACKET

SUPPORT steering rear tube

1шт.

20

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

21

231-5146

FLANGE NUT,3/8"-16

2шт.

22

167955C2

SEAL

GROMMET steering cylinder hoses

2шт.

23

165602C1

CLAMP

steering tube

1шт.

24

163490C1

RUBBER INSULATOR

INSULATOR rubber, 3/8 ID x 1-13/64 inch long

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

26

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

BOLT hex flange, 5/16 NC x 1-1/4 inch

1шт.

27

183899C1

ANGLE

support, hand pump hose

1шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

29

196517C1

SUPPORT TUBE

steering tube

1шт.

30

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

31

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

BOLT hex, 5/16 NC x 4-1/2 inch

1шт.

32

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

flat, 11/32 x 1 x 3/64 inch

1шт.

33

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

1-7/8 inch diameter, steering hose

1шт.

34

492-11031

LOCK WASHER,5/16"

1шт.

35

425-105

NUT,5/16"-18, G5

1шт.

36

167955C2

SEAL

GROMMET steering cylinder hoses

2шт.

37

111863A1

STRAP

BRACKET steering hose support

1шт.

38

111862A1

SUPPORT

steering hose

1шт.

39

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

40

231-5146

FLANGE NUT,3/8"-16

1шт.

41

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch pump hoses

2шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
