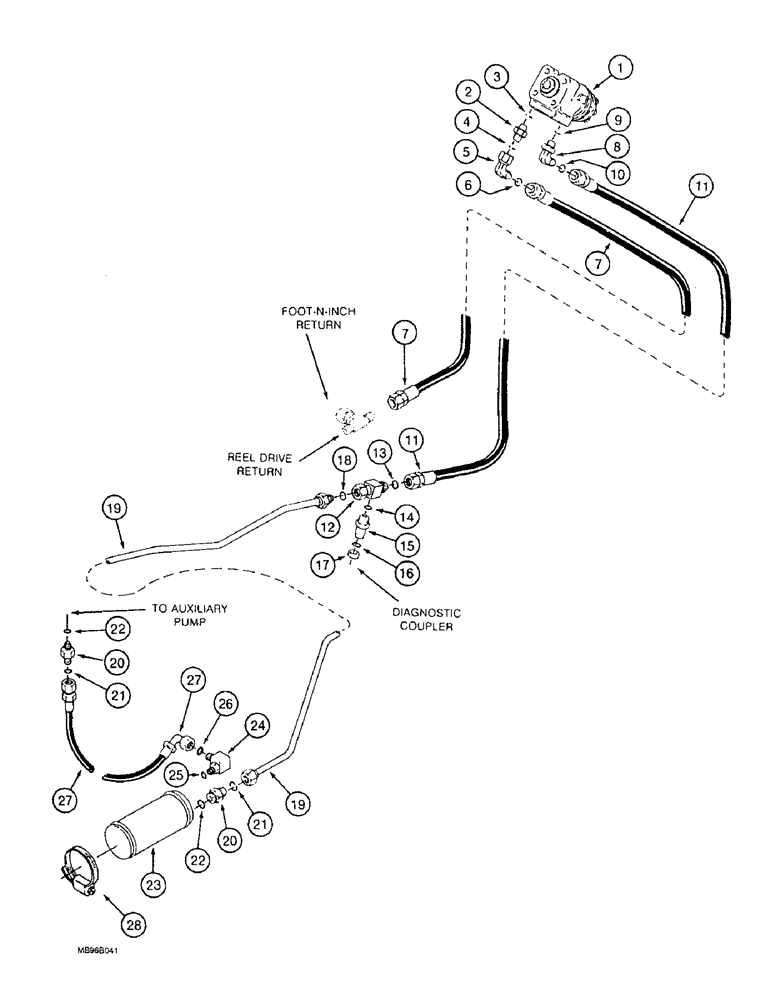

Запчасти Case IH 1644 (5-04) - STEERING SYSTEM, SUPPLY AND RETURN (04) - STEERING

1

1542690C1

PUMP

ASSEMBLY steering hand parts list Figure 5-8

1шт.

2

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER straight, 11/16 - 16 face seal x 3/4 - 16 inch O-ring boss, Includes: Ref. 3 and 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

201-319

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl Ref 6

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

1989505C1

HOSE

39 inch (990 mm) long, steering hand pump return, foot-N-inch, parts list page 6-17 for continuation of system

1шт.

8

201-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

90 degree, 11/16 - 16 inch face seal x 3/4 - 16 inch adj O-ring boss, Includes: Ref. 9 and 10

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

1989504C1

HOSE

86 inch (2185 mm) long, steering hand pump

1шт.

12

1541791C1

TEE

special, steering diagnostic, Includes: Ref. 13

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

1541849C1

COUPLING

ASSEMBLY diagnostic to check pressure order 1543171C1, see this Figure, Includes: Ref. 16 and 17

1шт.

17

H434163

DUST CAP

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

1989287C2

HYD TUBE

steering pressure

1шт.

20

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

straight, 13/16 - 16 face seal x 9/16 - 18 inch O-ring boss, Includes: Ref. 21 and 22

2шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

1994631C2

LIMITER, TRAVEL

LIMITER ATTENUATOR 0.7 liter

1шт.

24

1541627C1

ELBOW

special, restrictor

1шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

1989363C2

HOSE

43-5/16 inch (1100 mm) long, steering pressure

1шт.

28

214-1552

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm, W/ Liner

adj 2-13/16 - 3-3/4 inch diameter

2шт.

1543171C1

COUPLING, BREAK AWAY

COUPLER female, used to check pressure, see Ref. 15

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
