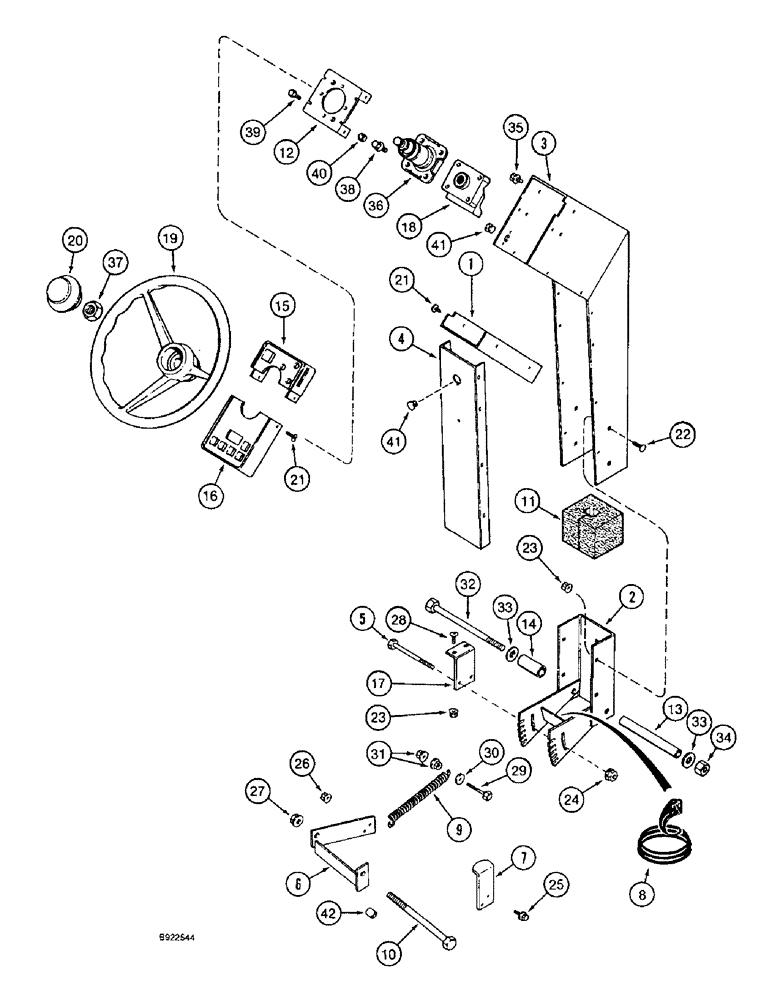

Запчасти Case IH 1644 (5-02) - STEERING SUPPORT AND WHEEL (04) - STEERING

1

1327540C3

CHANNEL

steering post cover

1шт.

2

1321449C1

SECTOR

RACK steering column pivot

1шт.

3

1327550C4

SUPPORT

PEDESTAL steering column

1шт.

4

1327551C1

CHANNEL

steering post cover

1шт.

5

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

BOLT hex, 5/16 NC x 4-1/2 inch

1шт.

6

193235C3

PIVOT

release, steering

1шт.

7

193239C2

BAR

PLATE steering release

1шт.

8

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

TRIM edge, 3 inch (76 mm) long, cut from 1330108CX bulk, see this Figure

1шт.

9

183608C1

SPRING

pedal return

1шт.

10

413-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

hex, 1/2 NC x 7-1/2 inch

1шт.

11

1324844C1

SEAL

steering pedestal

1шт.

12

1283223C2

SUPPORT

steering pump

1шт.

13

1321442C1

TUBE,13.51 mm ID, 19.05 mm OD

steering column pivot

1шт.

14

1321441C1

SPACER

steering column

1шт.

15

1327546C1

COVER

steering column upper, front

1шт.

16

1327547C4

COVER

steering column upper, rear

1шт.

17

193263C1

SUPPORT

steering pivot stop pin

1шт.

18

1542690C1

PUMP

ASSEMBLY steering hand parts list Figure 5-8

1шт.

19

1321683C1

WHEEL (STEERING)

1шт.

20

1329895C2

CAP ASSY.

steering wheel

1шт.

21

1321447C1

SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL

self-tapping, pan Phillips, 1/4 NC x 1/2 inch

17шт.

22

1321448C1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

carriage, 5/16 NC x 3/4 inch

6шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

24

232-4115

LOCK NUT,5/16"-18, GC

1шт.

25

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

BOLT hex flange, 1/4 NC x 3/4 inch

2шт.

26

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

27

231-4118

LOCK NUT,1/2"-13, GB

hex, self-locking, 1/2 inch NC

1шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

29

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

31

231-5146

FLANGE NUT,3/8"-16

2шт.

32

326-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 8

BOLT hex, 1/2 NC x 8 inch, grade 8

1шт.

33

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

34

232-4118

NUT,1/2"-13, GC

1шт.

35

1327574C1

FLANGE BOLT,Hex Serr, 5/16" - 18 x 1/2", Gr 5

hex flange, polyseal, 5/16 NC x 1/2 inch

4шт.

36

1282041C91

SHAFT ASSY.

COLUMN steering

1шт.

37

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

hex, special, 18 mm - 2.5, Includes: Ref. 37

1шт.

38

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

39

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

40

561277R1

SPACER,5/8" Tube x 1/2"

13/32 x 5/8 x 7/16 inch

2шт.

41

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch

2шт.

42

159716C1

SPACER,3/4" Tube x 5/8"

tubular, 17/32 x 3/4 x 9/16 inch

1шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk, 600 inch (15240 mm) long, see Ref. 8

1шт.
