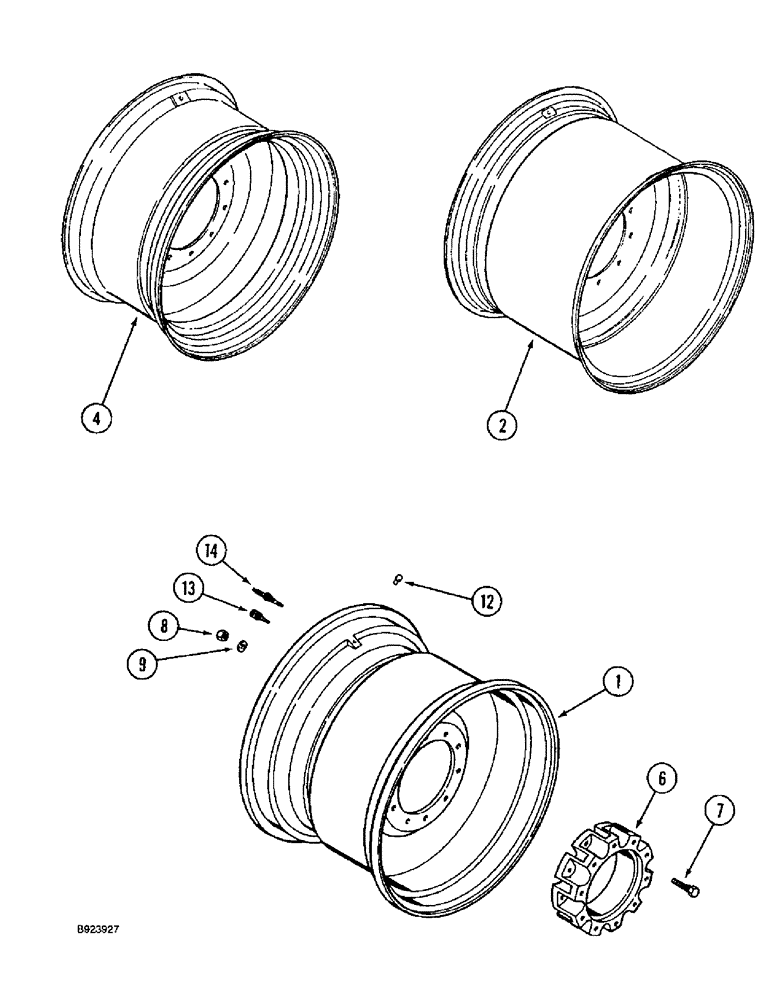

Запчасти Case IH 1644 (6-44) - DRIVE WHEELS AND SPACERS (03) - POWER TRAIN

1

193599C2

WHEEL ASSY.

drive, 23.1 x 26 in. tire, alternate with 188792C1

2шт.

1

188792C2

WHEEL ASSY.

drive, 23.1 x 26 in, tire, alternate with 192599C2

2шт.

1

196197C3

WHEEL ASSY.

drive, 28L x 26 in. tire

2шт.

2

184480C2

WHEEL ASSY.

drive, 30.5L x 32 in. tire

2шт.

4

184482C1

RIM

WHEEL WHEEL drive, 24.5 x 32 in. tire

2шт.

6

178912C92

RETAINER

SPACER wheel, 3 in.

2шт.

6

188124C91

RETAINER

SPACER wheel, 2 in.

2шт.

7

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel, used in spacer only

20шт.

8

429-1112

NUT,3/4"-16, G5

hex, 3/4 in. NF, grade 8

20шт.

9

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

20шт.

12

417194C1

PLUG

valve hole for tubeless tire

2шт.

12

383697R1

PLUG

valve hole for tube type tire

2шт.

13

179482C1

VALVE STEM

inflation, 7/16 in. dia.

2шт.

14

407184C1

VALVE STEM

CORE valve, inflation

2шт.
