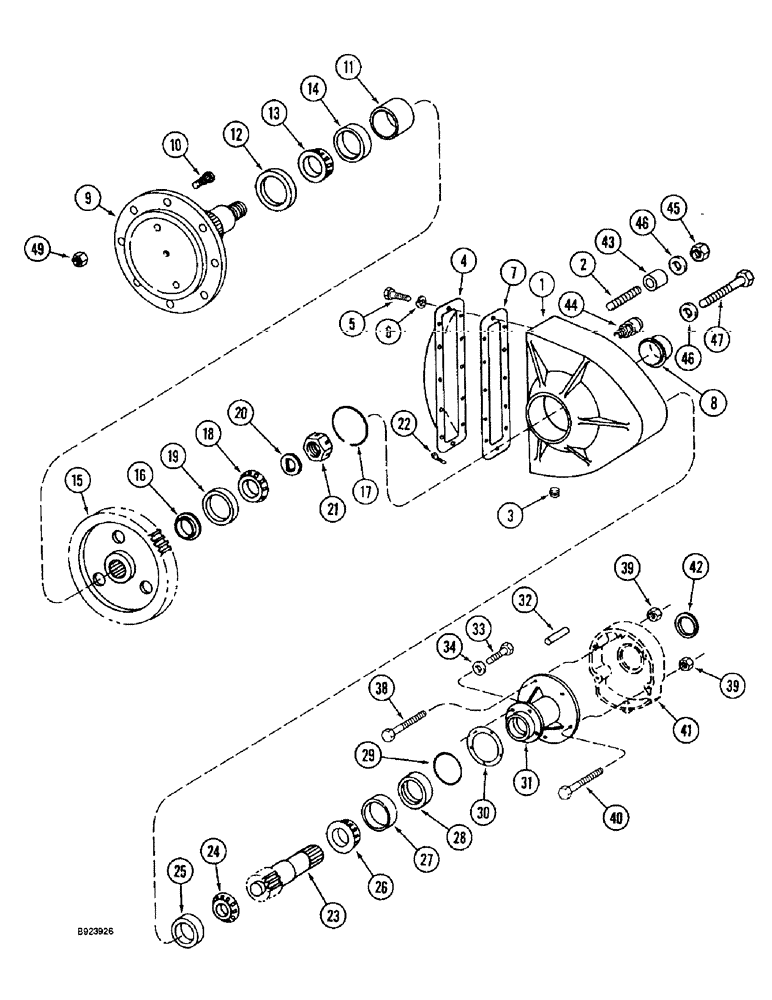

Запчасти Case IH 1644 (6-40) - FINAL DRIVE, PRIOR TO P.I.N. JJC0098060 (03) - POWER TRAIN

1323474C94

REDUCER

DRIVE ASSY., final, left hand, Includes: Ref. 1 - 29

1шт.

1323475C94

REDUCER

DRIVE ASSY., final, right hand, Includes: Ref. 1 - 29

1шт.

1

1277169C1

HOUSING

final drive, left hand

1шт.

1

1277170C1

HOUSING

final drive, right hand

1шт.

2

1277171C1

STUD

housing mounting

6шт.

3

444595

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

square head, 3/4 in. PT

2шт.

4

587078R91

PAN ASSY.

COVER housing

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

12шт.

6

492-11038

LOCK WASHER,3/8"

12шт.

7

184229C2

GASKET

GASKET cover

1шт.

8

107622C3

BEARING CAP,92.4 mm ID x 114.3 mm OD x 45.7 mm

driveshaft, inner, bearing

1шт.

9

1536597C1

SHAFT

final drive, Includes: Ref. 10

1шт.

10

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel

10шт.

11

107627C1

SPACER

shaft, outer

1шт.

12

59881C1

OIL SEAL,96.14mm ID x 133.5mm OD x 11.89mm Thk

outer

1шт.

13

63461C91

BEARING ASSY,3.25" ID x 5.25" OD x 1.5625"

tapered roller, outer, 3-1/4 in. ID

1шт.

14

160301R1

BEARING ASSY,133.35mm OD x 32.55mm W

CUP tapered roller bearing, outer

1шт.

15

107628C1

GEAR

final drive, 69 teeth

1шт.

16

107626C1

SPACER

gear, inner

1шт.

17

107625C1

RING

snap, retaining

1шт.

18

298033R91

TAPERED BEARING,53.98mm ID x 36.51mm W

CONE tapered roller, 2-1/8 in. ID, inner

1шт.

19

107624C1

BEARING CUP,104.78mm OD x 28.57mm W

CUP, inner, 4-1/8 in. OD

1шт.

20

404076R1

WASHER

final drive shaft

1шт.

21

1975476C1

SLOTTED NUT

hex, shaft retaining, final drive

1шт.

22

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

23

184180C2

SHAFT

pinion, 13 teeth

1шт.

24

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

tapered roller, outer pinion shaft, 1-5/16 in. ID

1шт.

25

50213V

BEARING CUP

CUP tapered roller, outer pinion shaft, 2-3/4 in. OD

1шт.

26

56934D

ROLLER BEARING,2.1663" ID x 3.8125" OD x 0.8268"

tapered roller, 2-3/16 in. ID

1шт.

27

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP, inner pinion shaft

1шт.

28

380186R92

OIL SEAL

oil, adapter housing

1шт.

29

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

REF

INSTRUCTION

DRIVE ASSY, final, left hand, Includes: Ref. 30 - 34

1шт.

REF

INSTRUCTION

DRIVE ASSY., final, right hand, Includes: Ref. 30 - 34

1шт.

30

405627R1

SHIM

adapter housing, 0.003 in. thick

1шт.

30

376467R1

SHIM

adapter housing, 0.007 in. thick

1шт.

30

184348C1

SHIM

adapter housing, 0.015 in. thick

1шт.

30

184349C1

SHIM

adapter housing, 0.030 in. thick

1шт.

31

60002C91

ADAPTER

brake housing, left hand, includes Ref. 32 Pin

1шт.

31

60004C91

ADAPTER

brake housing, right hand, Includes: Ref. 32

1шт.

32

141279

DOWEL,1/2" x 3/4"

dowel, 1/2 x 3/4 in.

1шт.

33

28138R1

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 8

hex, 7/16 NC x 1-1/8 in., grade 8

5шт.

34

26272R1

WASHER,.469" x 59/64" x .105", HDN

flat, 154/32 x 59/64 x 1/16 in.

5шт.

38

113-320

BOLT,Hex, 7/16" - 14 x 5-1/2", Gr 5

4шт.

39

425-107

NUT,7/16"-14, G5

10шт.

40

413-780

BOLT,Hex, 7/16" - 14 x 5", Gr 5

BOLT hex, 7/16 NC x 5 in.

6шт.

41

REF

INSTRUCTION

HOUSING, see Figure 7-05A

2шт.

42

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

brake housing

2шт.

43

1315371C1

BUSHING

DOWEL, housing end plate, main axle end plate

4шт.

44

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

FITTING, housing, oil, 1/8 in. PT

2шт.

45

429-1012

NUT,3/4"-10, G8

hex, NC

12шт.

46

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

14шт.

47

27356R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

hex, 3/4 NC x 2 in., grade 8

2шт.

49

429-1112

NUT,3/4"-16, G5

hex, 3/4 in. NF, grade 8

20шт.
