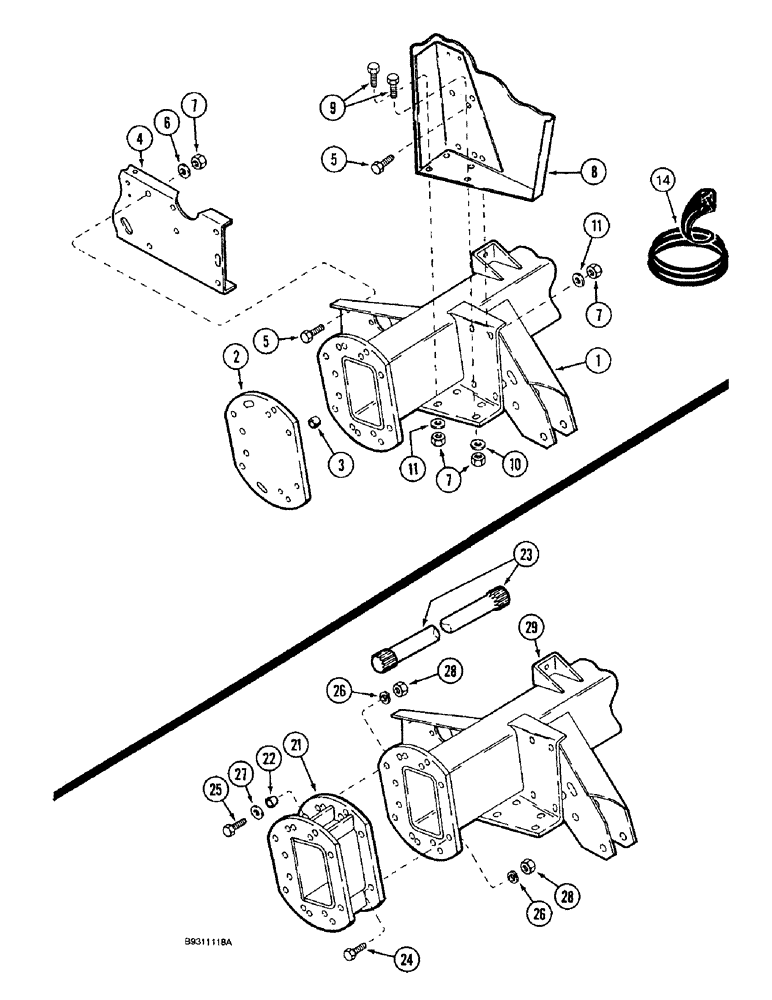

Запчасти Case IH 1644 (6-39A) - DRIVE AXLE AND EXTENSION, P.I.N. JJC0098060 AND AFTER (03) - POWER TRAIN

1

184451C2

AXLE

drive

1шт.

2

177336C1

COVER

end plate, if used, drive axle

2шт.

3

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

tapered, end plate, if used, drive axle

4шт.

4

REF

INSTRUCTION

SUPPORT, separator side, right hand, see Figure 9H-06, drive axle

1шт.

5

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

hex, 5/8 NC x 1-1/4 in., grade 8, drive axle

22шт.

6

495-81030

WASHER,21/32" x 2" x .179"

flat, 21/32 x 2 x 11/64 in., drive axle

14шт.

7

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

hex, serrated flange, 5/8 in. NC, grade 8, drive axle

30шт.

8

REF

INSTRUCTION

POST, separator front, right hand, see Figurte 6H-06, drive axle

1шт.

9

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

Drive axle

8шт.

10

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

flat, hardened, 21/32 x 1-1/2 x 3/16 in., drive axle

4шт.

11

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

flat, special, 41/64 x 1-1/4 x 1/8 in., drive axle

12шт.

14

122150A1

PROTECTION STRIP

TRIM edge, 7in., 179 mm, long, cut from 1330108CX bulk trim, see below, drive axle

1шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk 600 in., 15240 mm, long, drive axle

1шт.

21

177345C3

EXTENSION

drive axle, 6 in., axle extension, single wheel, short extension

2шт.

22

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

tapered, axle extension, single wheel, short extention

8шт.

23

184223C1

SHAFT

axle, left hand, axle extension, single wheel, short extension

1шт.

23

184224C1

SHAFT

axle, right hand, axle extension, single wheel, short extension

1шт.

24

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

Axle extension, single wheel, short extension

12шт.

25

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

Axle extension, single wheel, short extension

4шт.

26

492-11075

LOCK WASHER,3/4"

axle extension, single wheel, short extension 3/4"

16шт.

27

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat, Axle extension, single wheel, short extension

8шт.

28

429-1012

NUT,3/4"-10, G8

hex, NC, Axle extension, single wheel, short extension

16шт.

29

REF

INSTRUCTION

AXLE drive, see Ref. 1, 184451C2 axle above, axle extension, single wheel, short extension

1шт.
