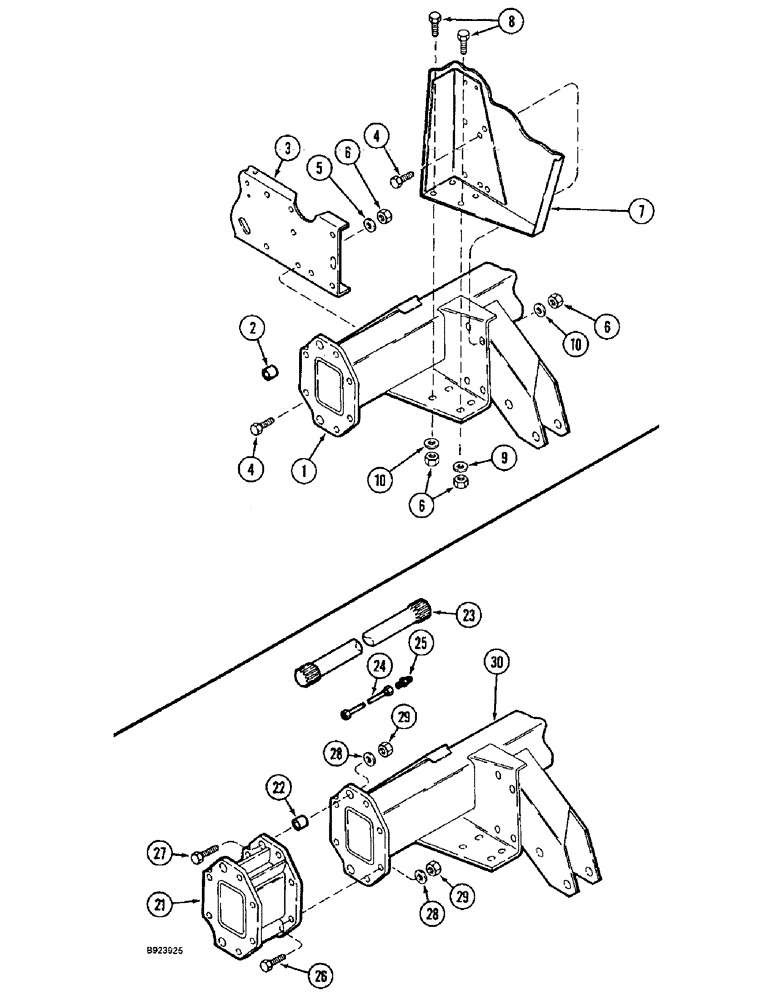

Запчасти Case IH 1644 (6-38) - DRIVE AXLE AND EXTENSION, PRIOR TO P.I.N. JJC0098060 (03) - POWER TRAIN

1

1324584C3

CENTER AXLE

HOUSING, drive axle

1шт.

2

1315371C1

BUSHING

DOWEL, housing end plate, drive axle

4шт.

3

REF

INSTRUCTION

SUPPORT separator side, right hand, see Figure 9H-06 for correct assy., drive axle

1шт.

4

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

hex, 5/8 NC x 1-1/4 in., grade 8, drive axle

18шт.

5

495-81030

WASHER,21/32" x 2" x .179"

flat, 21/32 x 2 x 11/64 in., drive axle

10шт.

6

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

hex, serrated flange, 5/8 in. NC, grade 8, drive axle

26шт.

7

REF

INSTRUCTION

POST separator front, right hand, see Figure 9H-06 for correct assy., drive axle

1шт.

8

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

Drive axle

8шт.

9

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

flat, hardened, 21/32 x 1-1/2 x 3/16 in., drive axle

4шт.

10

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

flat, special, 41/64 x 1-1/4 x 1/8 in., drive axle

12шт.

21

1315370C3

AXLE

EXTENSION, 8 in., axle extension, short axle

2шт.

22

1315371C1

BUSHING

DOWEL, housing end plate, axle extension, short axle

4шт.

23

184221C1

SHAFT

axle, right hand, axle extension, short axle

1шт.

23

184220C1

SHAFT

axle, left hand, axle extension, short axle shaft length is 701.25 mm

1шт.

24

1322647C1

HYD TUBE

ASSY., brake extension, not serviced separately, use 8 in. length of 990094C2 tube 1/4 OD, (1) 9403525 tube nut and (1) 9403447 tube sleeve, axle extension, short axle

2шт.

NSS

NOT SOLD SEPARAT

TUBE, 1/4 OD x 8 in., cut from 990094C2, see below, axle extension, short axle

1шт.

218-341

TUBE NUT,37 Degree, 7/16"-20, Type B

hex, 7/16 in. NF, axle extension, short axle

1шт.

218-361

SLEEVE,37 Degree, 1/4" Tube

1/4 in. tube OD, axle extension, short axle

1шт.

25

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR straight, 7/16-20 in. flare, axle extension, short axle

2шт.

26

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

Axle extension, short axle

12шт.

27

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

Axle extension, short axle

4шт.

28

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

Axle extension, short axle

20шт.

29

329-1012

NUT,3/4"-10, G8

Axle extension, short axle

16шт.

30

1324584C3

CENTER AXLE

HOUSING drive axle, axle extension, short axle

1шт.

990094C2

HOSE

TUBE bulk, brake, 1/4 (6) OD x 300 in., 7620mm, long, axle extension, short axle

1шт.
