Запчасти Case IH 1644 (6-37E) - TRANSMISSION, INPUT SHAFT GEAR AND SHIFTER RAILS, P.I.N. JJC0098060 AND AFTER (03) - POWER TRAIN

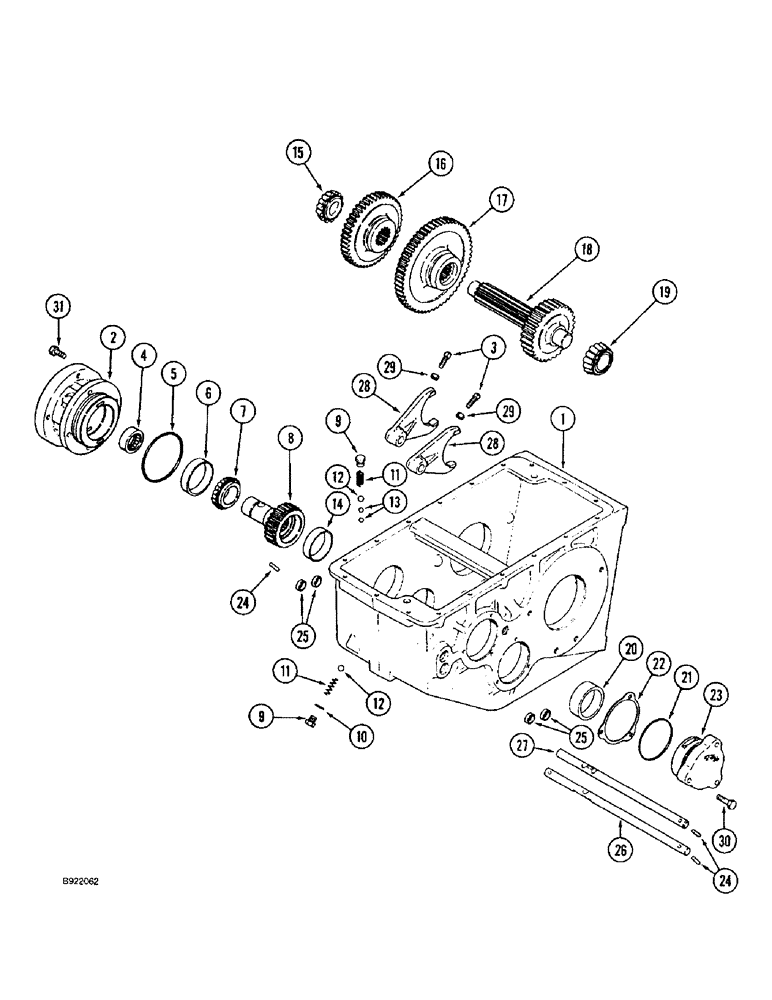

Схема запчастей Case IH 1644 - (6-37E) - TRANSMISSION, INPUT SHAFT GEAR AND SHIFTER RAILS, P.I.N. JJC0098060 AND AFTER (03) - POWER TRAIN
12
12
1
24
29
15
8
17
30
31
22
25
23
11
18
6
29
4
5
10
3
28
11
28
9
9
16
14
27
7
13
20
25
24
21
19
2
28

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOUSING transmission, see Figure 6-37A for correct assy.

1шт.

2

180944C1

HOUSING ASSY.

input shaft

1шт.

3

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

set, 38 NF x 1 in., shifter fork

2шт.

4

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

needle, 1-3/4 in. ID

1шт.

5

238-5348

O-RING,0.21" Thk x 4.35" ID, -348, Cl 5, 75 Duro

1шт.

6

130503H

BEARING CUP

CUP tapered roller, 3-17/64 in. OD, input shaft

1шт.

7

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

tapered roller, 1-25/32 in. ID, input shaft

1шт.

8

401890R1

SHAFT

gear, input pinion, 26 teeth

1шт.

9

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 10

2шт.

11

64600C1

SPRING

shifter detent

2шт.

12

211-1016

BALL,12.7mm OD, Gr 24

Chrome alloy steel, grade 24

2шт.

13

211-1014

BALL,7/16" Dia

steel, chrome alloy, grade 24

2шт.

14

50213V

BEARING CUP

CUP tapered roller, left hand drive shaft, 2-3/4 in. OD

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

tapered roller, left hand drive shaft, 1-5/16 in. ID

1шт.

16

530700R1

GEAR

second and third sliding, 26 and 46 teeth

1шт.

17

401889R1

GEAR

first sliding, 58 teeth

1шт.

18

1349025C1

SHAFT

drive gear, 36 teeth

1шт.

19

290099C91

TAPERED BEARING,39.69mm ID x 22.1mm W

tapered roller, right hand drive shaft, 2-7/8 in. OD

1шт.

20

290100C1

BEARING CUP,73.05mm OD x 17.78mm W

CUP, tapered roller, right hand drive shaft, 1-9/16 in. ID

1шт.

21

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

22

401883R1

SHIM

0.003 in. thick

1шт.

22

401884R1

SHIM

0.005 in. thick

1шт.

22

401885R1

SHIM

0.007 in. thick

1шт.

22

184195C1

SHIM

0.030 in. thick

1шт.

23

130791C1

BEARING CAP,65.5 mm ID x 101.51 mm OD x 58.7 mm

bearing retainer

1шт.

24

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

3шт.

25

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

oil, shifter rail

4шт.

26

121658C4

SHAFT

second and third gear shifter

1шт.

27

121659C2

SHAFT

first gear shifter

1шт.

28

401897R2

FORK

gear shifter

2шт.

29

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

30

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT hex, 3/8 NC x 1-3/8 in.

3шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 34
