Запчасти Case IH 1644 (6-37C) - TRANSMISSION, DIFFERENTIAL PINION SHAFT AND GEARS, P.I.N. JJC0098060 AND AFTER (03) - POWER TRAIN

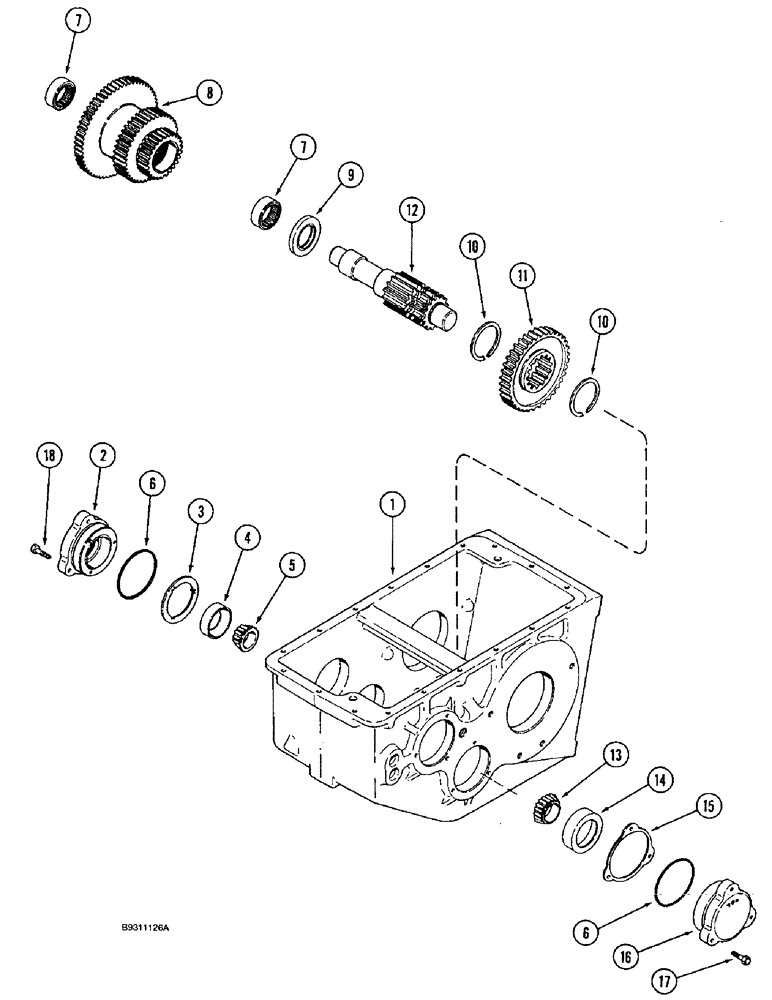

Схема запчастей Case IH 1644 - (6-37C) - TRANSMISSION, DIFFERENTIAL PINION SHAFT AND GEARS, P.I.N. JJC0098060 AND AFTER (03) - POWER TRAIN
12
9
16
3
1
8
2
18
5
10
6
14
7
6
13
10
4
11
17
15
7

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOUSING transmission, see Figure 6-37A for correct assy.

1шт.

2

188893C1

BEARING COVER,59.75 mm ID x 101.51 mm OD x 47.5 mm

HOUSING bearing, left hand

1шт.

3

530704R2

THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk

thrust

1шт.

4

131312C1

BEARING CUP

CUP tapered roller, 2-27/32 in. OD, left hand, pinion shaft

1шт.

5

871244R1

ROLLER BEARING

tapered roller, left hand, pinion shaft

1шт.

6

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

2шт.

7

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

needle

2шт.

8

530699R1

PINION

GEAR, spool 59, 39 and 27 teeth

1шт.

9

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

spool gear

1шт.

10

196693H1

RING

snap, change gear

2шт.

11

1349026C1

GEAR

driven, change, 36 teeth

1шт.

12

401878R1

SHAFT

SHAFT, 14 teeth

1шт.

13

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

tapered roller, right hand, pinion shaft

1шт.

14

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CUP tapered roller, right hand, pinion shaft

1шт.

15

401883R1

SHIM

0.003 in. thick

1шт.

15

401884R1

SHIM

0.005 in. thick

1шт.

15

401885R1

SHIM

0.007 in. thick

1шт.

15

184195C1

SHIM

0.030 in. thick

1шт.

16

403363R1

BEARING CAP,73.4 mm ID x 101.5 mm OD x 54.1 mm

CAGE bearing, right hand

1шт.

17

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT hex, 3/8 NC x 1-3/8 in.

3шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

Выбрано товаров: 21
