Запчасти Case IH 1644 (6-37A) - TRANSMISSION, HOUSING AND DIFFERENTIAL, P.I.N. JJC0098060 AND AFTER (03) - POWER TRAIN

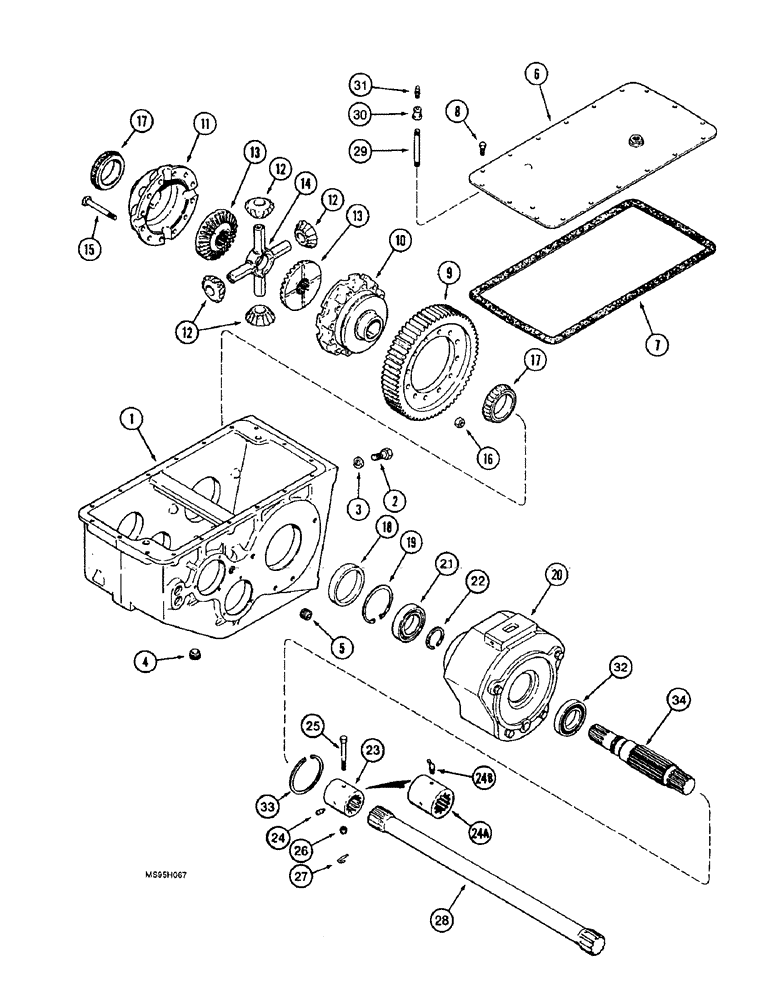

Схема запчастей Case IH 1644 - (6-37A) - TRANSMISSION, HOUSING AND DIFFERENTIAL, P.I.N. JJC0098060 AND AFTER (03) - POWER TRAIN
27
28
10
20
31
17
8
29
6
24
13
32
21
1
34
15
30
26
18
13
24a
16
17
14
12
7
2
9
22
23
24b
25
5
19
3
12
12
33
11
4

Артикул

Название

Примечание

Количество

1

401873R2

HOUSING

transmission

1шт.

2

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

4шт.

3

392-21062

LOCK WASHER,5/8"

5/8"

4шт.

4

221-887

PLUG

square socket, 3/4 in. PT

1шт.

5

217-442

PLUG,3/4" - 14

hex socket, 3/4 in. PT

1шт.

6

184167C1

COVER ASSY

transmission housing

1шт.

7

401860R1

GASKET

cover, housing

1шт.

8

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

15шт.

9

404085R1

GEAR

driven, 66 teeth

1шт.

1968235C1

DIFFERENTIAL

ASSY., transmission, Includes: Ref. 10 - 18

1шт.

404081R1

CASE ASSY.

KIT housing, differential, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING, right hand, differential

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING, left hand, differential

1шт.

12

361061R3

PINION

GEAR, 15 teeth, differential

4шт.

13

404084R1

PINION

GEAR bevel, 28 teeth, differential

2шт.

14

393637R2

DIFF. SPIDER

1шт.

15

404171R2

BOLT,1/2" - 20 x 4"

BOLT special, differential housing

12шт.

16

29-218

NUT,1/2"-20, G8, Hvy

hex, 1/2 in. NF, grade 8

12шт.

17

ST2096

BEARING ASSY,73.03mm ID x 25.4mm W

tapered roller, differential

2шт.

18

ST981

BEARING CONE,112.71mm OD x 19.05mm W

tapered roller, differential

2шт.

19

100-21393

SNAP RING,3.938", Int, #393

2шт.

20

REF

INSTRUCTION

HOUSING, brake, see Figure 7-5A, Ref. 9 gear

2шт.

21

ST265

BALL BEARING,55mm ID x 100mm OD x 21mm Thk

ball, differential shaft

2шт.

22

358059R1

SNAP RING

snap, bearing

2шт.

23

184341C1

SLEEVE

COUPLING ASSY., axle drive shaft, Includes: Ref. 24

4шт.

24

219-14

LUBE NIPPLE,1/4" NPTF

Straight

1шт.

24a

184341C2

SPLINED COUPLING

ASSY., axle drive shaft, replaces 184341C1 coupling assembly

4шт.

24b

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING grease, 65 deg., 1/4 drive type x 3/4 in.

1шт.

25

27653R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

BOLT hex, drilled, 3/8 NC x 3-1/2 in., grade 8

4шт.

26

654049R1

LOCK NUT

hex, self locking, 3/8 in. NC

4шт.

27

21864R1

COTTER PIN

retaining, S type

4шт.

28

1309012C1

SHAFT

final drive, left hand

1шт.

28

402725R2

SHAFT

final drive, right hand

1шт.

29

221-1114

LUBE NIPPLE,1/8" NPT x 4 1/2"

1шт.

30

144098

REDUCER

COUPLING, 1/4 PT to 1/8 in. PT

1шт.

31

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE vent, includes felt washer 1/8 PT x 1 in.

1шт.

32

574273R91

BEARING ASSY,2.1654" ID x 3.937" OD x 0.8268"

ball

2шт.

33

184131C1

SNAP RING,#393, 4.234", Int

2шт.

34

1342912C1

SHAFT

differential

2шт.

Выбрано товаров: 39
