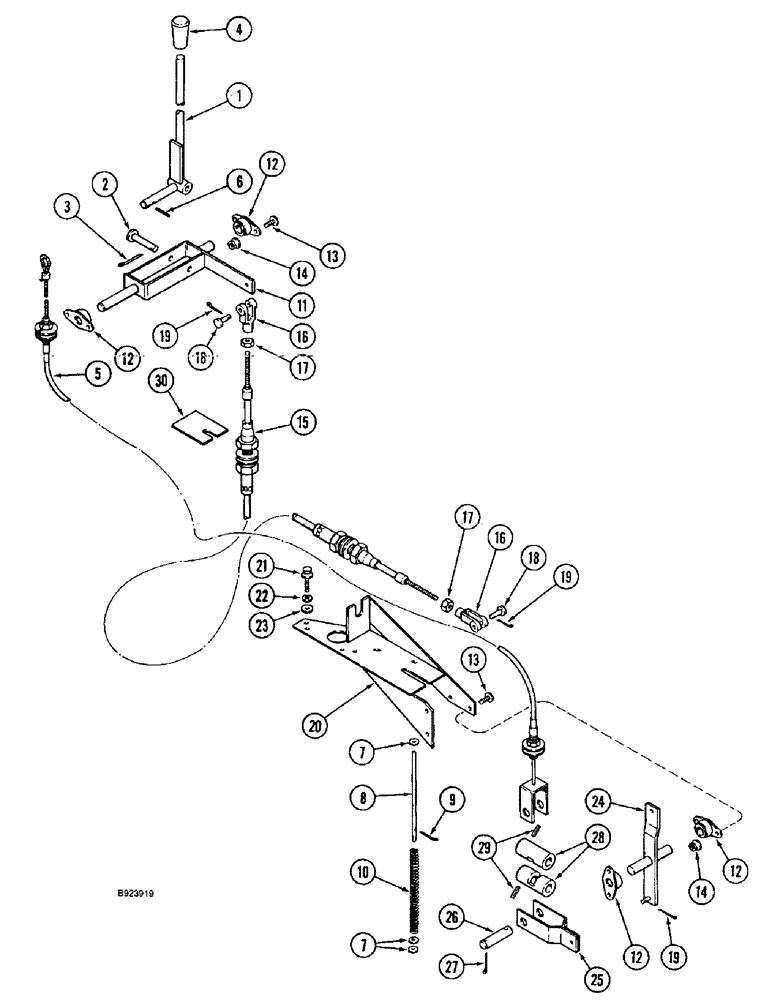

Запчасти Case IH 1644 (6-26) - TRANSMISSION GEAR SHIFT CONTROL (03) - POWER TRAIN

1

224865C1

LEVER

gear shift

1шт.

2

439-5840

HEADED PIN,1/2" x 2 1/2"

1/2 x 2-1/2 in.

1шт.

3

432-1216

COTTER PIN,3/16" x 1"

1шт.

4

193194C2

HANDLE

GRIP lever, hand control

1шт.

5

1321297C3

CABLE

transmission link, Serial Range: -JJC0098060

1шт.

5

1321289C3

CABLE

transmission link, Start Serial: JJC0098060

1шт.

6

17045R1

LOCK PIN,5/32" x 1 3/8", Slotted

2шт.

7

495-81112

WASHER,.344" x 3/4" x .120"

flat, 11/32 x 3/4 x 7/64 in.

3шт.

8

194445C1

ROD

spring, anchor

1шт.

9

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

10

47822D

SPRING

shifting retractor

1шт.

11

1276181C1

BRACKET

SUPPORT gear shift

1шт.

12

A63366

SPHERICAL BEARING,19mm ID

pivot

4шт.

13

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

8шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

15

196659C1

CABLE ASSY.

control shift rail, Serial Range: -JJC0098060

1шт.

15

1329390C1

CABLE ASSY.

control shift rail, Start Serial: JJC0098060

1шт.

16

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

2шт.

17

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

18

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

Hardened

2шт.

19

432-612

COTTER PIN,3/32" x 3/4"

3шт.

20

194442C1

SUPPORT ASSY.

shift linkage

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

22

492-11038

LOCK WASHER,3/8"

3шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

3шт.

24

194439C1

LEVER ASSY.

shift, lower

1шт.

25

194437C1

LINK

shift, rail control

1шт.

26

195108C2

PIN

pivot, lug

1шт.

27

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

28

192689C1

PIN,34.93mm OD x 73.7mm L

shift, rail extension

2шт.

29

138-2053

PIN,1/4" x 1 1/4", Coiled

2шт.

30

196511C1

LARGE PLATE

PLATE, LARGE SUPPORT cable, nut

1шт.
