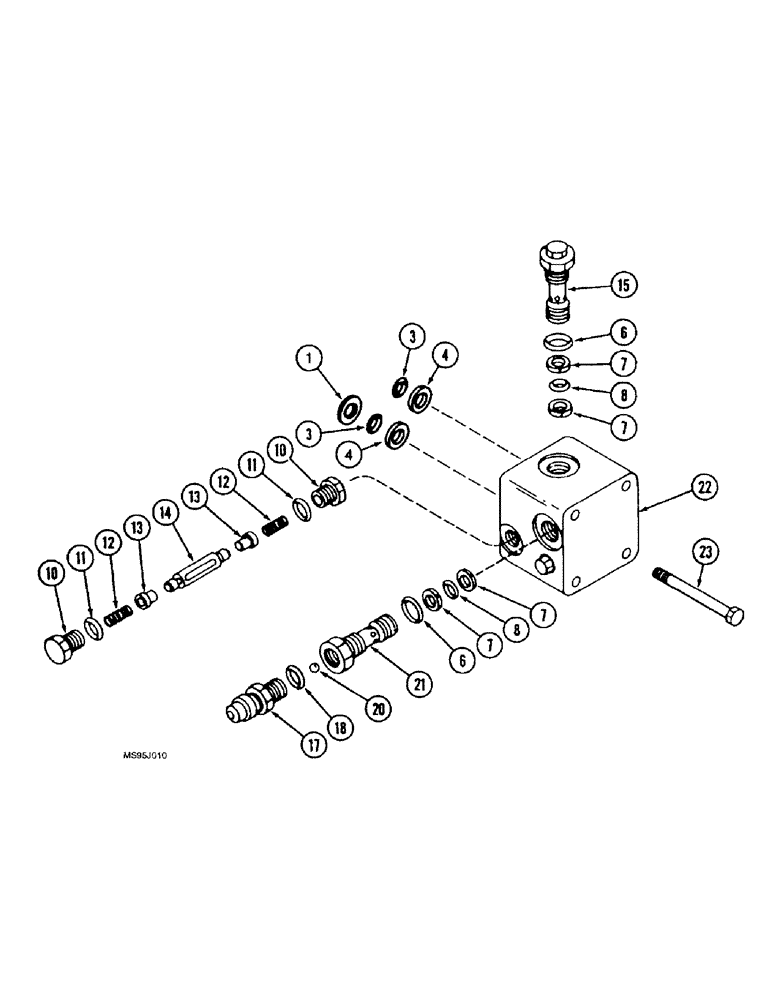

Запчасти Case IH 1644 (6-24) - HYDROSTATIC MOTOR, SINGLE SPEED, RELIEF VALVE BLOCK (03) - POWER TRAIN

1971432C2

VALVE

BLOCK ASSY., relief valve, Includes: Ref. 1 - 22

1шт.

140747C92

SEAL KIT

KIT seal, valve block, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

RING square, 3/4 x 7/8 x 1/16 in.

1шт.

3

NSS

NOT SOLD SEPARAT

O_RING, 3/4 ID x 1/16 in. wide

2шт.

4

NSS

NOT SOLD SEPARAT

RING backup

2шт.

393885R91

GASKET KIT

seal, relief valve, Includes: Ref. 6 - 8

3шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

7

393887R1

BACK-UP RING

2шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

145559C91

KIT

shuttle valve, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG, order 145559C91 kit

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

12

145560C1

SPRING

shuttle valve

2шт.

13

NSS

NOT SOLD SEPARAT

VALVE shuttle

2шт.

14

NSS

NOT SOLD SEPARAT

SPOOL shuttle kit

1шт.

15

140761C1

VALVE PRESSURE RELIE

Assy, low

1шт.

1971415C2

VALVE

ASSY., feathering relief, replaces 1971415C1 valve, Includes: Ref. 17 - 21

2шт.

17

NSS

NOT SOLD SEPARAT

CONNECTOR special

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING, 1/4 in. OD tube

1шт.

20

NSS

NOT SOLD SEPARAT

BALL steel, 1/4 in.

1шт.

21

NSS

NOT SOLD SEPARAT

CARTRIDGE valve

1шт.

22

NSS

NOT SOLD SEPARAT

BLOCK valve

1шт.

23

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

hex, 3/8 NC x 4 in.

4шт.
