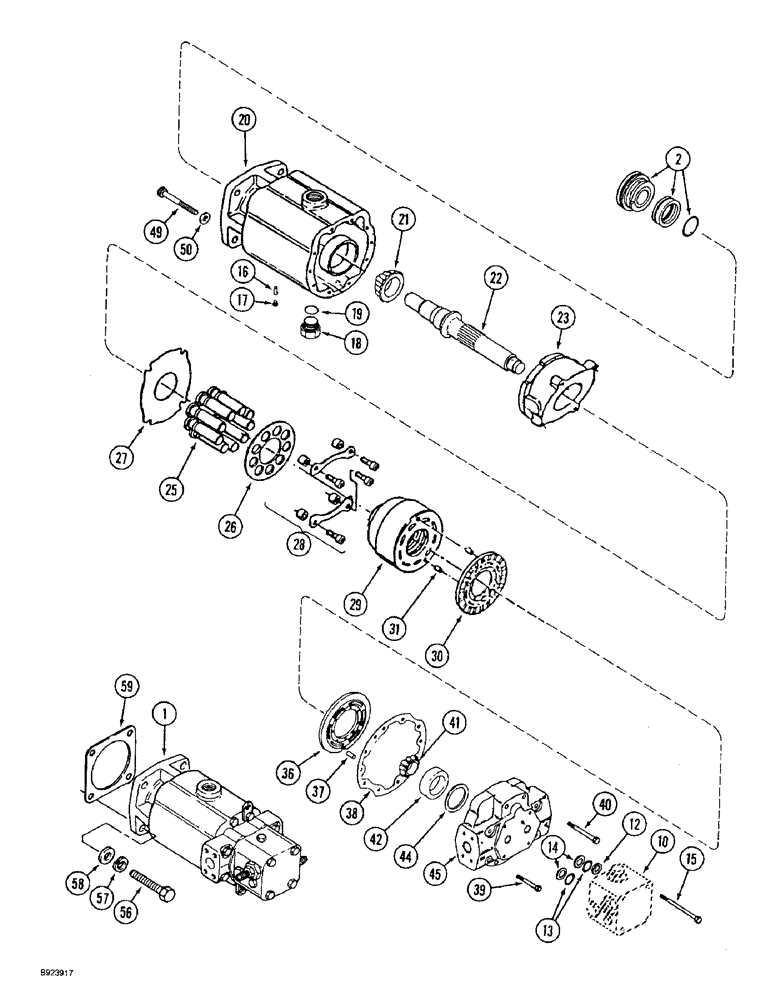

Запчасти Case IH 1644 (6-20) - HYDROSTATIC MOTOR, SINGLE SPEED (03) - POWER TRAIN

1

1343746C1

MOTOR, HYDRAULIC

ASSY., hydrostatic, new, part number stamped on part, Includes: Ref. 2 - 40

1шт.

1343747C1

REMAN-HYDROSTAT MOTO

1644, N.A. Only

1шт.

1343748C1

CORE-HYDROSTAT MOTOR

Return Number, For N.A. Only

1шт.

2

1346205C1

SEAL KIT

SEAL shaft, three piece

1шт.

10

REF

INSTRUCTION

BLOCK ASSY., relief valve, see Figure 6-24

1шт.

140747C91

SEAL KIT

seal replacement, valve block, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

RING square, 3/4 x 7/8 x 1/16 inch

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

631458C1

RING

backup

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

hex, 3/8 NC x 4 in.

4шт.

16

37-1516

DOWEL,5/16" x 1"

PIN, harnened, 5/16 x 1 in.

1шт.

17

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

tapered roller, 3-1/2 in. OD

1шт.

21

92742C1

TAPERED BEARING

tapered roller, 1-7/8 in. ID

1шт.

22

1346188C1

SHAFT

output

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE, swash, fixed

1шт.

1978053C1

KIT

rotating, cylinder, Includes: Ref. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON, cylinder block

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE, retaining

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE, retaining, clear

1шт.

28

NSS

NOT SOLD SEPARAT

KIT, hold down

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL, cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE, bearing

1шт.

31

140754C1

PIN

dowel, 5/16 x 5/8 in.

2шт.

36

92732C1

PLATE

valve

1шт.

37

140754C1

PIN

dowel, 5/16 x 5/8 in.

3шт.

38

92735C2

GASKET

end cover

1шт.

39

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

40

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

6шт.

REF

INSTRUCTION

MOTOR ASSY., hydrostatic, Includes: Ref. 41 - 50

1шт.

41

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

tapered roller, 5/8 in.ID, output shaft

1шт.

42

140759C1

BEARING CUP

CUP tapered roller, 2-1/4 in. OD, output shaft

1шт.

44

140760C91

SHIM KIT

KIT, for bearing

1шт.

45

NSS

NOT SOLD SEPARAT

Cover end

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

sealing

2шт.

56

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

56

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

57

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

58

283856C1

WASHER

flat, 17/32 x 1 x 3/16 in.

4шт.

59

166506C1

GASKET,0.81mm Thk

mounting

1шт.
