Запчасти Case IH 1644 (6-06) - HYDROSTATIC PUMP AND MOTOR SYSTEM (03) - POWER TRAIN

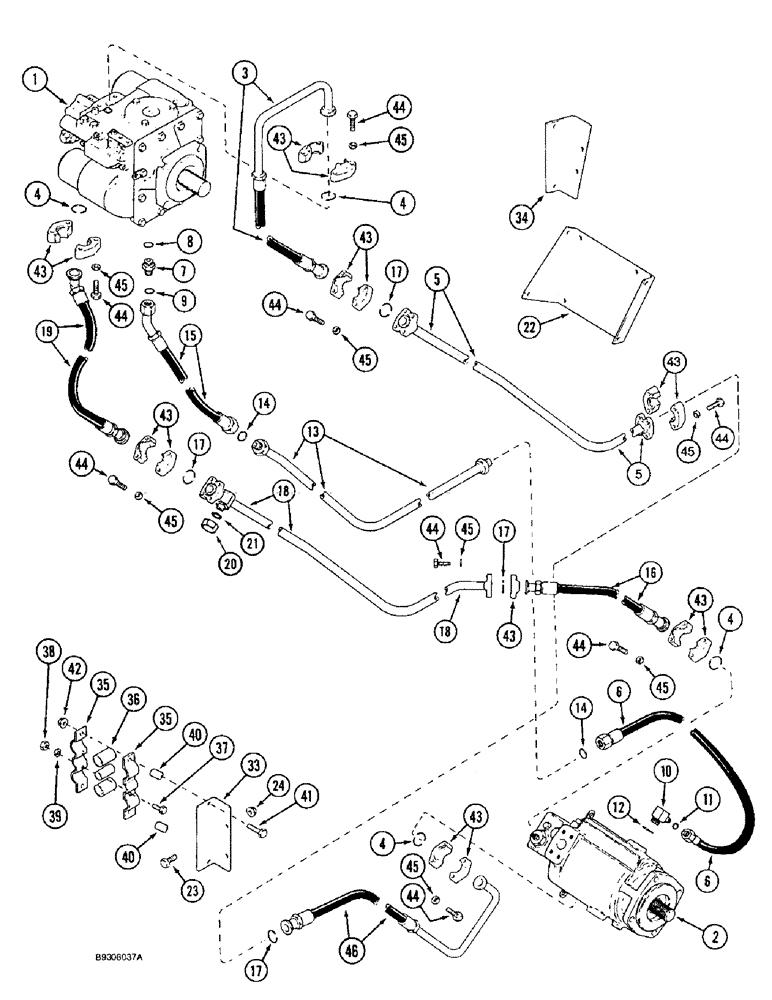

Схема запчастей Case IH 1644 - (6-06) - HYDROSTATIC PUMP AND MOTOR SYSTEM (03) - POWER TRAIN
46
43
16
45
4
44
45
43
6
4
44
43
41
45
42
13
17
14
35
19
39
38
35
43
44
5
20
40
33
4
17
9
2
45
23
37
18
44
7
5
34
15
14
43
3
44
44
17
17
1
43
45
44
40
44
36
11
22
4
8
45
45
6
21
10
43
12
43
24
45
18

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSY. hydrostatic, see Figures 6-14 and 6-18

1шт.

2

1343746C1

MOTOR, HYDRAULIC

ASSY. hydrostatic, see Figures 6-20 and 6-24

1шт.

3

1979955C2

HOSE

reverse pressure, upper, 33-7/8 in., 860 mm, long

1шт.

4

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

With power guide axle

2шт.

5

1979929C1

TUBE

reverse pressure

1шт.

5

1541757C2

HYD TUBE,1" OD, 2045.6, 225.2 mm Length

TUBE, reverse pressure with tee, with power axle guide

1шт.

6

1979939C1

HOSE

housing drain, lower, 25-3/4 in., 653 mm, long, Serial Range: -JJC0098060

1шт.

6

1347141C2

HOSE

housing drain, lower, 35 in., 889 mm, long, Start Serial: JJC0098060

1шт.

7

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - straight,, Incl Ref 8 and 9

2шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

10

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

90 deg., 1-7/16-12 face seal x 1-1/16-12 in. adj. o-ring boss, Includes: Ref. 11 and 12

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

13

1979932C1

HYD TUBE

TUBE case drain

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

15

1979936C1

HOSE

housing drain, upper, 16-1/2 in., 420 mm, long

1шт.

16

1979953C3

HOSE,25.4mm ID x 717mm L

forward lower pressure, 27-7/8 in., 706 mm, long

1шт.

17

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

18

1979928C1

TUBE

forward pressure, not shown

1шт.

18

1541756C2

HYD TUBE

TUBE, forward pressure, with power guide axle

1шт.

19

1347124C2

HOSE,25.4mm ID x 550mm L

forward pressure, upper, 21-5/8 in., 550 mm, long

1шт.

20

201-907

CAP,1-3/16" - 12 ORFS

If used, Includes Ref. 21

2шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

22

1979941C1

SUPPORT

hydrostatic tube, rear

1шт.

23

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

24

231-5146

FLANGE NUT,3/8"-16

6шт.

33

1347034C1

SUPPORT

BRACKET, tube, rear

1шт.

34

1347033C1

SUPPORT

BRACKET, tube, front

1шт.

35

1347156C1

SHIN

CLAMP tube, half

6шт.

36

187935C1

STRIP

SLEEVE, pressure tube clamp

9шт.

37

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

38

425-105

NUT,5/16"-18, G5

6шт.

39

492-11031

LOCK WASHER,5/16"

6шт.

40

1979761C1

SPACER

3/8" ID x 1

6шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

42

231-5146

FLANGE NUT,3/8"-16

6шт.

43

S97224

CLAMP

CLAMP split flange, 1 in.

16шт.

44

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

32шт.

45

492-11044

LOCK WASHER,7/16"

32шт.

46

1979956C1

HOSE

reverse pressure, lower, 23-1/2 in., 594 mm, long

1шт.

Выбрано товаров: 42
