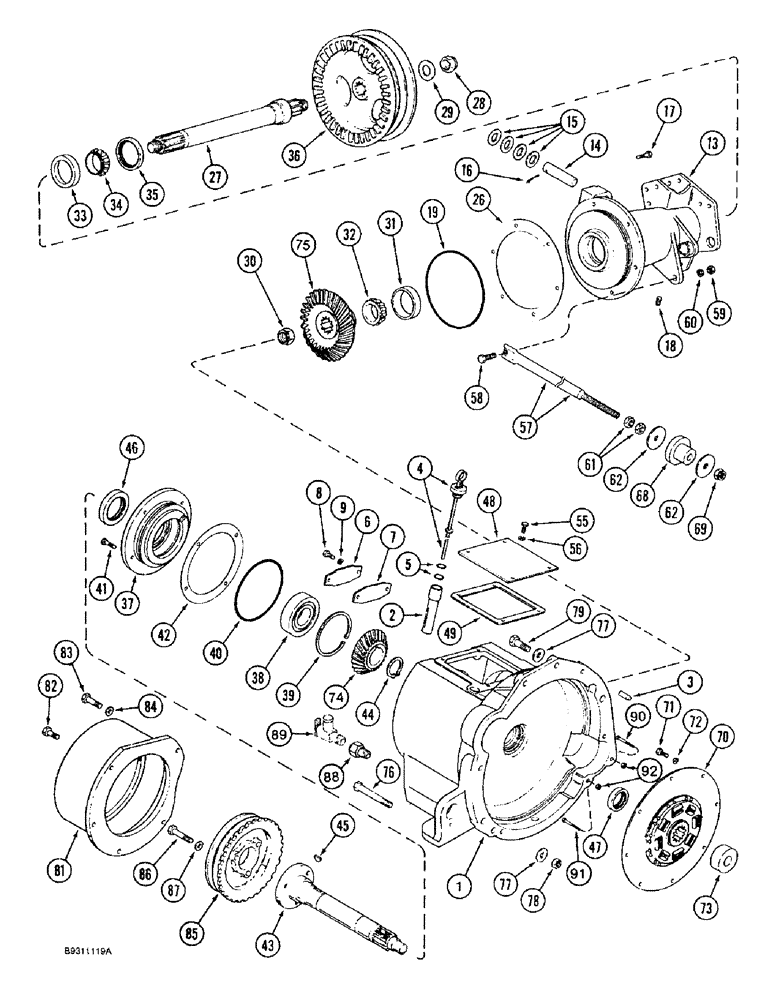

Запчасти Case IH 1644 (6-02) - POWER TAKEOFF DRIVE (03) - POWER TRAIN

1

184433C3

HOUSING

power takeoff drive, Includes: Ref. 2 and 3

1шт.

2

188072C1

TUBE,25.4 mm OD, 127 mm Length

dipstick, oil

1шт.

3

1330136C1

DOWEL

PIN dowel, locating

2шт.

4

186019C91

DIPSTICK

PTO housing oil, Includes: Ref. 5

1шт.

5

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

6

185056C1

COVER

bolt access hole

1шт.

7

185057C2

GASKET,0.91mm Thk

access cover

1шт.

8

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

13

1329747C1

HOUSING

separator drive, Includes: Ref. 14

1шт.

14

195439C2

PIN,25.29mm OD x 101.6mm L

clutch housing separator drive

1шт.

15

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

flat, 1-1/32 x 1-3/4 x 1/16 in.

4шт.

16

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

18

50057K

PLUG

separator housing

1шт.

19

188279C1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 6, 90 Duro

8 ID x 1/8 in. wide

1шт.

188195C1

SHIM KIT

KIT shim, separator drive housing, Includes: Ref. 26

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM, 0.005 in., separator housing

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM, 0.007 in., separator housing

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM, 0.010 in., separator housing

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM, 0.030 in., separator housing

1шт.

27

1329745C1

SHAFT

pulley, separator drive

1шт.

28

18521R1

LOCK NUT,1"-14, G8

hex, self locking, 1 in. NF

1шт.

29

396-31106

WASHER,1.06" ID x 2" OD x 0.22" Thk

flat, hardened, 1-1/16 x 2 x 7/32 in.

2шт.

30

194737C1

LOCK NUT

hex, special, 1 in. NF

1шт.

31

ST987

BEARING CUP

CUP tapered roller bearing, separator housing, rear, 3-17/64 in. OD

1шт.

32

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

tapered roller, separator housing, rear, 1-25/32 in. ID

1шт.

33

376463C1

BEARING CUP

tapered roller, separator housing, front, 3-15/64 in. OD

1шт.

34

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

tapered roller, separator housing, front, 2 in, ID

1шт.

35

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

oil, separator housing

1шт.

36

191461C1

PULLEY,110mm OD

drive, 11 in. OD

1шт.

37

192817C2

FLANGE,92.02 mm ID x 241.249 mm OD x 54.61 mm

drive shaft bearing, housing

1шт.

38

1541765C1

BEARING, BALL,55 mm ID x 120 mm OD x 29 mm

drive shaft, standard, 4-23/32 in. OD

1шт.

38

1541766C1

BEARING, BALL,55 mm ID x 120 mm OD x 29 mm

drive shaft, optional, 4-23/32 in. OD

1шт.

39

100-22475

SNAP RING,4.78", Int, #475

1шт.

40

238-8260

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

1шт.

41

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

188196C1

SHIM KIT

KIT shim housing, PTO drive shaft, Includes: Ref. 42

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM bearing hub, 0.030 in.

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM bearing hub, 0.010 in.

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM bearing hub, 0.007 in.

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM bearing hub, 0.005 in.

1шт.

43

192816C2

SHAFT

drive, PTO

1шт.

44

100-12200

SNAP RING,#200, Ext

1шт.

45

126-176

WOODRUFF KEY,#128, 5/16" x 2-1/8", HT

Drive shaft

1шт.

46

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

pump housing, shaft 3-5/8 in. OD drive

1шт.

47

173559C92

SEAL,45.59mm ID x 66.73mm OD x 11mm Thk

drive plate end, shaft 2-5/8 in. OD drive

1шт.

48

192275C1

COVER

housing

1шт.

49

191830C2

GASKET

PTO cover

1шт.

55

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

56

492-11038

LOCK WASHER,3/8"

4шт.

57

1315648C1

ROD

ROD snubber

1шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

59

425-108

NUT,1/2" - 13, Gr 5

1шт.

60

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

61

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

2шт.

62

107813R1

WASHER

flat, 21/32 x 2-1/2 x 11/64 in.

2шт.

68

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR, engine snubber

1шт.

69

232-46110

LOCK NUT,5/8"-11, GC

1шт.

70

184429C2

CLUTCH DISC,352.4mm OD

CLUTCH DISK PLATE, PTO drive

1шт.

184429C2R

REMAN-CLUTCH DISC

1644 (1/93-12/94)

1шт.

184429C2C

CORE-CLUTCH DISC

Return Number

1шт.

71

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

8шт.

72

392-21038

LOCK WASHER,3/8"

3/8"

8шт.

73

1324896C2

BUSHING,29.99mm ID x 71.98mm OD x 27mm L

flywheel PTO

1шт.

192801C1

GEAR-SET

KIT, separator drive, 43 and 28 teeth, matched set, Includes: Ref. 74 and 75

1шт.

74

NSS

NOT SOLD SEPARAT

GEAR, drive shaft, 28 teeth

1шт.

75

NSS

NOT SOLD SEPARAT

GEAR, separator drive shaft, 43 teeth

1шт.

76

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

hex, 5/8 NC x 4 in.

4шт.

77

495-81027

WASHER,21/32" x 1 1/2" x .120"

flat, 21/32 x 1-1/2 x 7/64 in.

6шт.

78

425-1010

NUT,5/8"-11, G5

4шт.

79

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 in.

2шт.

81

1303141C2

HOUSING

hydrostatic pump

1шт.

82

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

3шт.

83

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

84

283856C1

WASHER

flat, 17/32 x 1 x 3/16 in.

2шт.

85

1330488C1

PULLEY

drive, auxiliary pump, 8.85 in. OD

1шт.

86

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

3шт.

87

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

3шт.

88

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

89

301803R1

SHUT-OFF VALVE

PTO drain

1шт.

90

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

91

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

hex, 3/8 NC x 3-1/4 in.

1шт.

92

425-106

NUT,3/8"-16, Cl 5

2шт.
