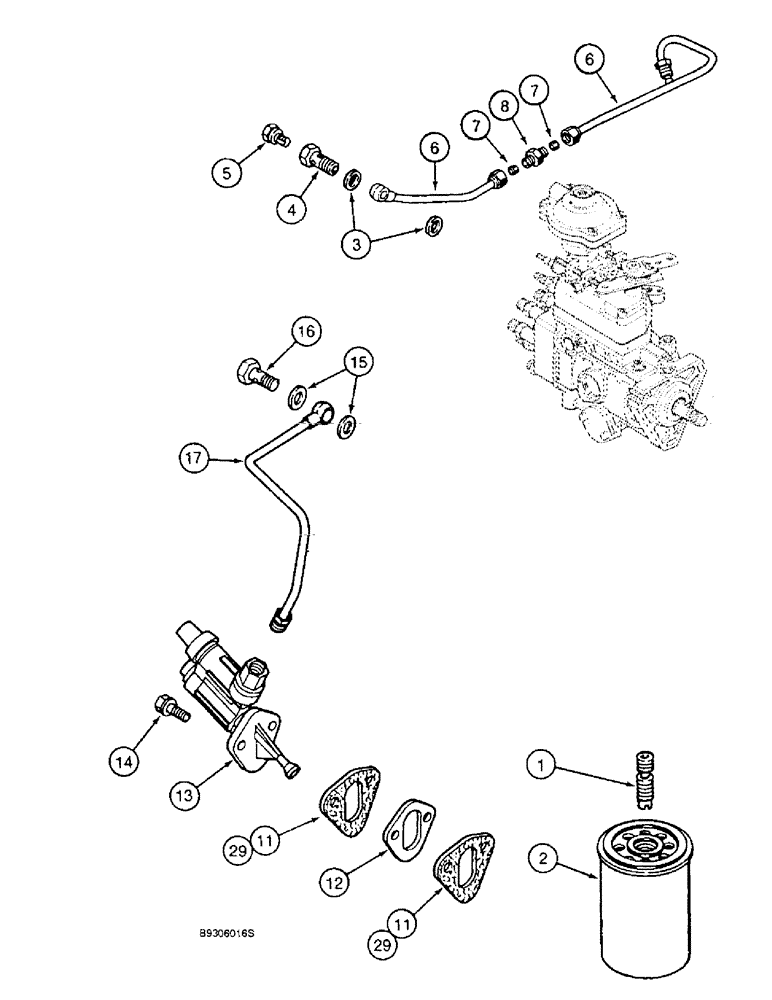

Запчасти Case IH 1644 (3-04) - FUEL FILTER AND LIFT PUMP, 6TA-590 ENGINE (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
J925955
ADAPTER,M16 x 1.5 x M16 x 1.5
fuel filter, Replaces J903845
1шт.
2
J903640
FILTER, FUEL
1шт.
3
J918191
PACKING RING
WASHER sealing, special, 12 x 18 x 1 mm
2шт.
J905860
BANJO BOLT
BOLT ASSEMBLY banjo hex, special, Includes: Ref. 4 and 5
1шт.
4
NSS
NOT SOLD SEPARAT
BOLT banjo hex, special
1шт.
5
NSS
NOT SOLD SEPARAT
SCREW hex, special, vent
1шт.
6
J918640
FUEL TUBE
TUBE fuel supply, two piece, Includes: Ref. 7 and 8
1шт.
7
222-103
SLEEVE,5/16" Tube
2шт.
8
222-4
FITTING,9/16"-24, Flex Tube
ADAPTER compression, 5/16 inch tube OD
1шт.
11
J923054
GASKET
mounting, fuel transfer pump, Replaces J914304
2шт.
12
J914284
SPACER
fuel transfer pump mounting
1шт.
13
J918076
PUMP
transfer, fuel, see J926764 repair kit in this Figure
1шт.
14
845-8025
BOLT,Hex Flg, M8 x 25mm, Cl 8.8
2шт.
15
J918191
PACKING RING
WASHER sealing, special, 12 x 18 x 1 mm
2шт.
17
J914753
FUEL TUBE,8 mm OD x 292.3 mm L
fuel supply, lift pump
1шт.
J920544
GASKET KIT
repair, seal, lift pump, no longer available, for service order J926764 kit in this Figure, Includes: Ref. 18 - 22
1шт.
18
NSS
NOT SOLD SEPARAT
VALVE check, not shown
2шт.
19
NSS
NOT SOLD SEPARAT
GASKET check valve, not shown
2шт.
20
NSS
NOT SOLD SEPARAT
SEAL O-ring, not shown
1шт.
21
NSS
NOT SOLD SEPARAT
SEAL O-ring, not shown
3шт.
22
NSS
NOT SOLD SEPARAT
SEAL O-ring, not shown
1шт.
J926764
GASKET KIT
transfer pump repair, Replaces J923615, Includes: Ref. 23 - 29
1шт.
23
NSS
NOT SOLD SEPARAT
VALVE check, not shown
1шт.
24
NSS
NOT SOLD SEPARAT
GASKET check valve, not shown
2шт.
25
NSS
NOT SOLD SEPARAT
SEAL O-ring, not shown
1шт.
26
NSS
NOT SOLD SEPARAT
SEAL O-ring, not shown
2шт.
27
NSS
NOT SOLD SEPARAT
SEAL O-ring, not shown
1шт.
28
NSS
NOT SOLD SEPARAT
VALVE check, not shown
1шт.
29
J923054
GASKET
mounting, fuel transfer pump, Replaces J914304
2шт.
Выбрано товаров: 30
