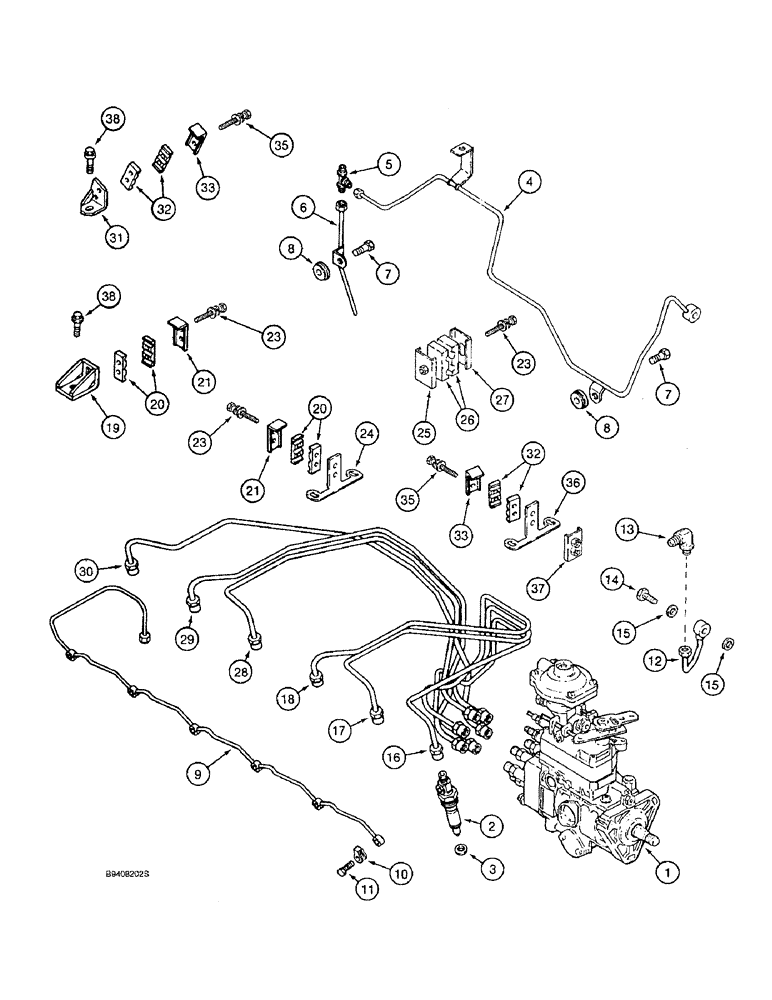

Запчасти Case IH 1644 (3-03A) - FUEL INJECTION SYSTEM, 6TA-590 ENGINE, ENGINE SERIAL NUMBER 44896558 AND AFTER (02) - FUEL SYSTEM

1

J924062

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY fuel, new parts list, Figure 3-6

1шт.

2

J919339

NOZZLE INJECTION

ASSEMBLY fuel, new 7 mm tip, see Figure 3-8, Includes: Ref. 3

6шт.

2

JR919339

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

2

JC919339

CORE-FUEL INJECTOR

Return Number,\r\n INJECTION NOZZLE

6шт.

3

J906659

SEAL

injector nozzle, 7 mm tip

1шт.

4

J925279

FUEL TUBE,4.76 mm OD x 819.3 mm L

fuel drain, pump to tee

1шт.

5

222-121

TEE,3/16", Flex Tubing

Remove and discard hex nuts before assembly, Fuel drain tubes

1шт.

6

J905692

FUEL TUBE

fuel return tee to fuel tank return

1шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

8

J900267

SEAL

cover bolt

2шт.

9

J909696

TUBE

TUBE manifold, fuel drain

1шт.

10

J903380

SEAL

connector

6шт.

11

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special fuel

6шт.

12

J910004

FUEL TUBE,4.76 mm OD x 101.9 mm L

injection pump aneroid

1шт.

13

J910265

ELBOW

male adapter

1шт.

14

J903729

BANJO BOLT,M8 x 1 x 17mm

BOLT banjo aneroid tube

1шт.

15

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

J926387

FUEL TUBE,252, 177.5 mm L

TUBE ASSEMBLY fuel injector, Includes: Ref. 16 - 27

1шт.

16

J926389

FUEL TUBE,2 mm ID x 6.35 mm OD x 872.5 mm L

fuel injector, No. 1 cylinder

1шт.

17

J926390

FUEL TUBE,2 mm ID x 6.35 mm OD x 872.5 mm L

fuel injector, No. 2 cylinder

1шт.

18

J926391

FUEL TUBE,2 mm ID x 6.35 mm OD x 872.5 mm L

fuel injector, No. 3 cylinder

1шт.

19

J917777

BRACE

fuel tube

1шт.

20

J917747

CLAMP

fuel tube

4шт.

21

J904519

SUPPORT

tube retaining

2шт.

23

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

Replaces J917712 bolt and J903723 washer

6шт.

24

J925301

BRACE

tube

1шт.

25

J917717

BRACE

BRACKET fuel tube

2шт.

26

J917746

CLAMP

fuel tube

4шт.

27

J904711

SUPPORT

BRACKET fuel tube

2шт.

J926388

FUEL TUBE,195.4, 160 mm L

TUBE ASSEMBLY fuel injector, Includes: Ref. 28 - 37

1шт.

28

J926392

FUEL TUBE,2 mm ID x 6.35 mm OD x 872.5 mm L

fuel injector, No. 4 cylinder

1шт.

29

J926393

FUEL TUBE,2 mm ID x 6.35 mm OD x 872.5 mm L

fuel injector, No. 5 cylinder

1шт.

30

J926394

FUEL TUBE,2 mm ID x 6.35 mm OD x 872.5 mm L

fuel injector, No. 6 cylinder

1шт.

31

J917778

BRACE

fuel tube

1шт.

32

J917747

CLAMP

fuel tube

6шт.

33

J904519

SUPPORT

tube retaining

2шт.

35

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

Replaces J917712 bolt and J903723 washer

6шт.

36

J924019

BRACE

tube

1шт.

37

J917716

BRACE

BRACKET fuel tube

2шт.

38

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special

2шт.
