Запчасти Case IH 1644 (2-52) - ENGINE RAILS AND SUPPORTS (01) - ENGINE

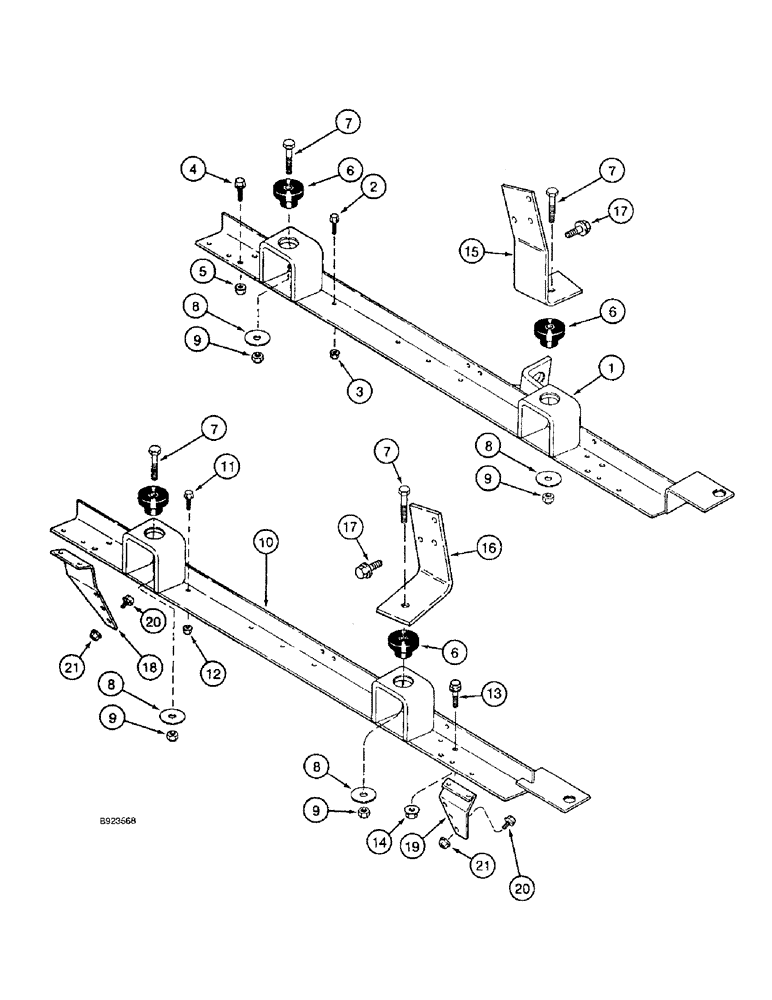

Схема запчастей Case IH 1644 - (2-52) - ENGINE RAILS AND SUPPORTS (01) - ENGINE
18
14
21
12
9
6
2
16
3
1
6
17
8
8
7
6
15
9
13
8
5
17
9
10
20
9
7
7
20
7
4
8
21
19
11

Артикул

Название

Примечание

Количество

1

1315653C3

RAIL ASSY.

SUPPORT engine rail, left hand

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR engine snubber front and rear

4шт.

7

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.

8

107813R1

WASHER

flat, 21/32 x 2-1/2 x 11/64 inch

4шт.

9

232-41110

NUT,5/8"-11, GC

4шт.

10

1315654C3

RAIL ASSY.

SUPPORT engine rail, right hand

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

12

231-5146

FLANGE NUT,3/8"-16

6шт.

13

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

15

1329705C1

SUPPORT

engine, left hand front

1шт.

16

1329706C1

SUPPORT

engine, right hand front

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

6шт.

18

1330098C2

SUPPORT

engine, right hand rear, Replaces 1329775C1

1шт.

19

1330099C2

SUPPORT

engine, right hand front, Replaces 1329776C1

1шт.

20

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

10шт.

21

231-5146

FLANGE NUT,3/8"-16

10шт.

Выбрано товаров: 21
