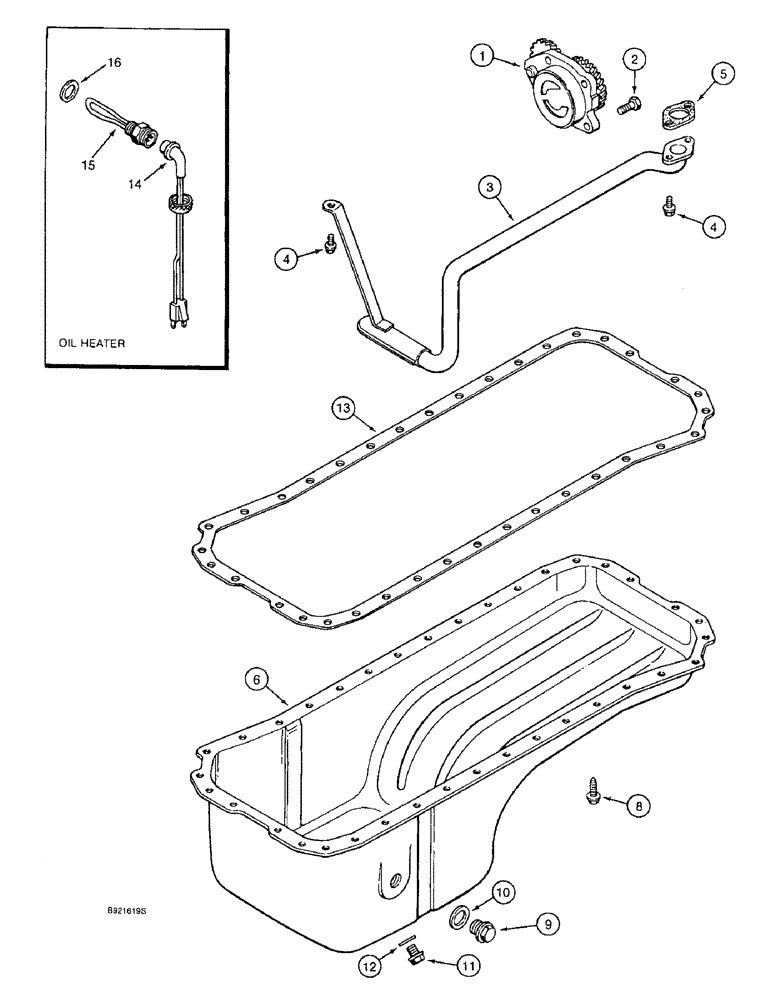

Запчасти Case IH 1644 (2-48) - OIL PUMP AND OIL PAN, 6TA-590 ENGINE, ENGINE OIL HEATER (01) - ENGINE

JR926203

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP remanufactured, North America only, Replaces JR924720 and JR918212

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER use this part number to return pump core for credit when using a remanufactured assembly, Replaces JC924720 and JC918212

1шт.

1

J926203

PUMP, ENGINE OIL

ASSEMBLY new, Replaces J924720 and J918212

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Full Thd

4шт.

3

J909373

TUBE

with screen, oil suction

1шт.

4

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

5

J914383

GASKET

mounting, oil suction tube

1шт.

Part of KIT, part number A77676

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL engine

1шт.

8

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

36шт.

9

J924148

PLUG,M22 x 1.5

hex magnetic, special, 22 mm - 1.5, Replaces J904386

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

11

J924147

PLUG,M18 x 1.5

hex magnetic, special, 18 mm - 1.5, Replaces J911638

1шт.

12

J920773

SEALING WASHER

WASHER sealing, drain plug

1шт.

Part of KIT, part number A77676

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET oil pan

1шт.

Part of KIT, part number A77676

1шт.

A77676

GASKET KIT

oil pan, includes Refs. 5, 12, and 13.

1шт.

A77490

KIT

heater, engine oil, Includes: Ref. 14 and 15

1шт.

When A77490 kit is ordered, Ref. 10, J902425 washer must also be ordered.

1шт.

14

J905113

CABLE

engine block heater, 6 feet long, oil

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt, engine oil

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, engine oil heater

1шт.

When A77490 kit is ordered, Ref. 10, J902425 washer must also be ordered.

1шт.
