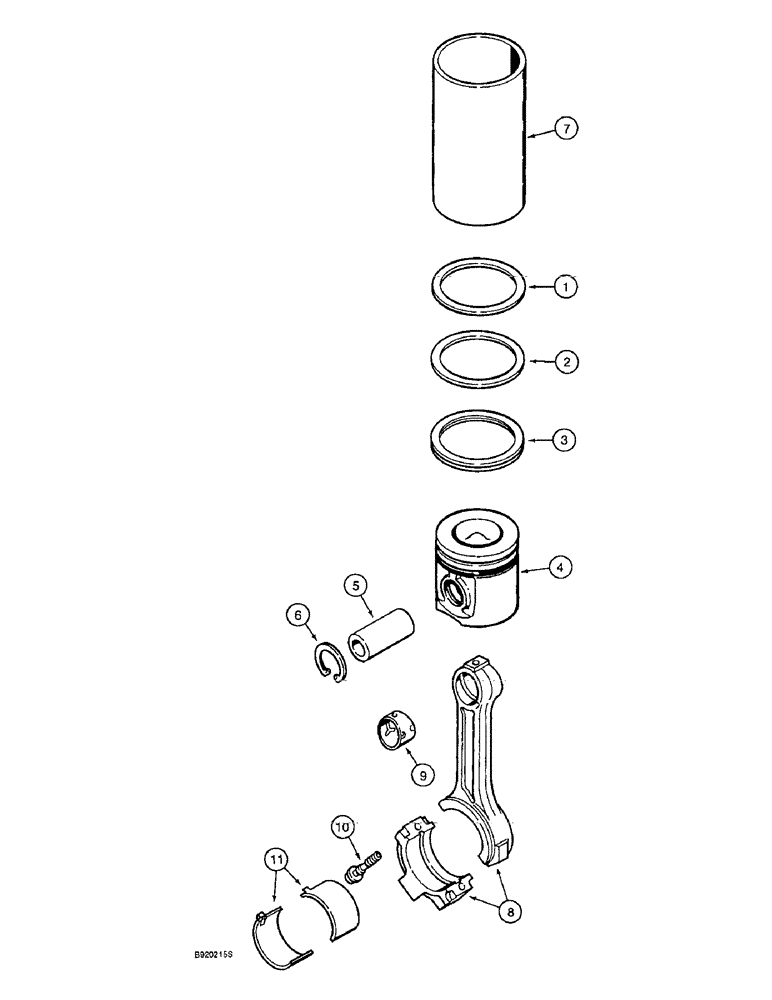

Запчасти Case IH 1644 (2-44) - PISTONS, 6TA-590 ENGINE, PRIOR TO ENGINE SERIAL NUMBER 44937696, CONNECTING RODS (01) - ENGINE

A77733

PISTON

KIT standard, Includes: Ref. 1 - 6

6шт.

A77727

PISTON RING SET

KIT standard, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, standard, stamped 7156

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap

2шт.

A77734

PISTON

KIT 0.5 mm oversize, Includes: Ref. 1 - 6

6шт.

A77728

PISTON RING SET

KIT 0.5 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 0.5 mm oversize, stamped 7157

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap

2шт.

A77735

PISTON

KIT 1.00 mm oversize, Includes: Ref. 1 - 6

6шт.

A77729

PISTON RING SET

KIT 1.00 mm over size, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.00 mm oversize, stamped 7158

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap

2шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair (when liner is installed, use A77733 piston kit)

1шт.

J925232

ROD, CONNECTING

ASSEMBLY new, Replaces J901569, Includes: Ref. 8 - 10

6шт.

JR925232

ROD

Assembly connecting, remanufactured, component parts shown in this Figure do not apply to the remanufactured assembly, Replaces JR901569, Includes: Ref. 8 - 10

6шт.

JC925232

CORE-ROD CONNECTING

Core-Connecting Rod Return Number use this part number to return connecting rod for credit when using a remanufactured assembly, Replaces JC901569, Includes: Ref. 8 - 10

6шт.

84145405R

REMAN-CONNECTING ROD

1644 PRIOR TO ENGINE S/N 44937696 (1/93-12/94), Reman For New PN J925232

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

JC942581

CORE-ROD CONNECTING

Return Number

6шт.

JC901569

CORE-ROD CONNECTING

Core-ConnectingRod Return Number, Connecting Rod

6шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting, includes both halves

1шт.

9

J901085

BUSHING

Connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex, special, connecting rods

2шт.

11

A77465

BEARING SET

KIT upper and lower set, standard

6шт.

11

A77466

BEARING SET

KIT upper and lower set, 0.25 mm undersize

6шт.

11

A77467

BEARING LINER

KIT upper and lower set, 0.50 mm undersize

6шт.

11

A77468

BEARING SET

KIT upper and lower set, 0.75 mm undersize

6шт.

11

A77469

BEARING SET

KIT upper and lower set, 1.00 mm undersize

6шт.
