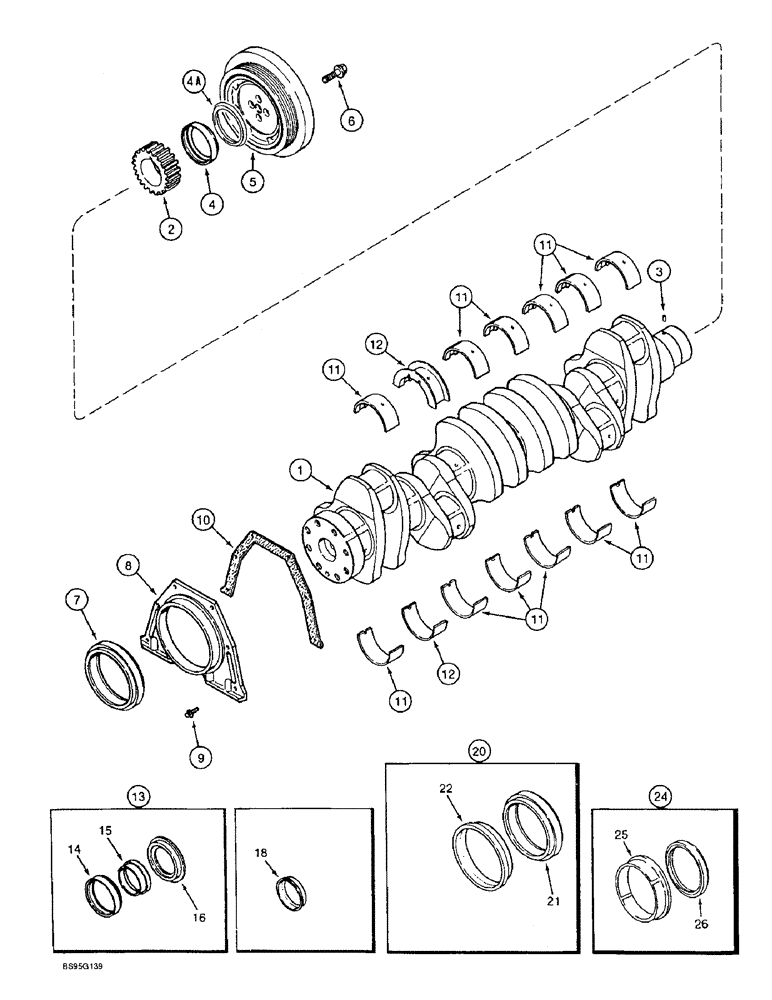

Запчасти Case IH 1644 (2-40) - CRANKSHAFT, 6TA-590 ENGINE (01) - ENGINE

JR918324

CRANKCASE

CRANKSHAFT ASSEMBLY engine, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 and 3

1шт.

JC908032

CORE-CRANKSHAFT

RETURN NUMBER use this part number to return crankshaft core for credit when using a remanufactured assembly, Includes: Ref. 2 and 3

1шт.

1

J918324

CRANKSHAFT

ASSEMBLY engine, new, Includes: Ref. 2 and 3

1шт.

2

J929027

PINION

GEAR crankshaft, Replaces J919681

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, front, order Ref. 13 kit

1шт.

4a

J926430

SHAFT SEAL

dust, crankshaft, service repair only

1шт.

5

NLS

NO LONGER SERVICED

PULLEY crankshaft, vibration

1шт.

6

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange, special, 12 - 1.25 x 36 mm

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL oil, rear, order Ref. 20 KIT

1шт.

8

J921043

REAR COVER

RETAINER seal

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Heavy

6шт.

10

J928493

GASKET

rear cover retainer, Replaces J914386

1шт.

11

A77405

CRANKSHAFT BEARING

main, upper and lower set, standard

6шт.

11

A77472

BEARING SET

main, upper and lower set, 0.25 mm undersize

6шт.

11

A77474

BEARING SET

main, upper and lower set, 0.50 mm undersize

6шт.

11

A77476

BEARING SET

main, upper and lower set, 0.75 mm undersize

6шт.

11

A77478

BEARING SET

main, upper and lower set, 1.00 mm undersize

6шт.

12

A77406

CRANKSHAFT BEARING

main thrust, upper and lower set, standard

1шт.

12

A77473

THRUST BEARING

main, upper and lower set, 0.25 mm undersize

1шт.

12

A77475

THRUST BEARING

main, upper and lower set, 0.50 mm undersize

1шт.

12

A77477

THRUST BEARING

main, upper and lower set, 0.75 mm undersize

1шт.

12

A77479

THRUST BEARING

main, upper and lower set, 1.00 mm undersize

1шт.

12

A77841

THRUST BEARING

main, upper and lower set, 0.50 mm undersize, 0.50 mm oversize

1шт.

12

A77840

THRUST BEARING

main, upper and lower set, 1.00 mm undersize, 1.00 mm oversize

1шт.

13

J904353

GASKET KIT

oil seal, crankshaft front, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

18

J906080

PACKAGE, REPAIR

SLEEVE wear, crankshaft front

1шт.

20

A77809

GASKET KIT

oil seal, crankshaft rear, Replaces J909410, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

24

A77810

SERVICE KIT

KIT wear sleeve, crankshaft rear, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.
