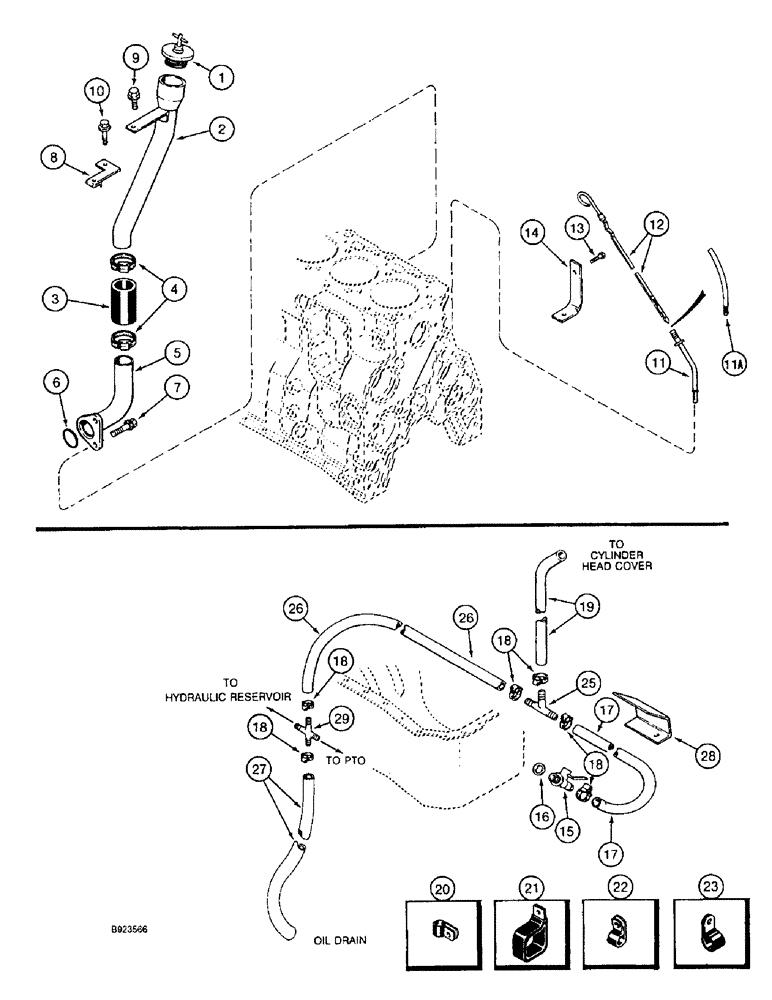

Запчасти Case IH 1644 (2-38) - CYLINDER BLOCK ATTACHING PARTS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
2
J912689
TUBE,38.1 mm OD x 371.1 mm L
oil fill, upper
1шт.
3
J912686
HOSE,38.1mm ID x 84mm L
Oil Fill
1шт.
4
214-1424
HOSE CLAMP,#24, 1.06" - 2", Type F Worm
2шт.
5
J912687
TUBE,38.1 mm ID x 195.9 mm L
oil fill, lower
1шт.
6
J906704
O-RING
sealing
1шт.
7
854-12025
BOLT,Hvy Hex, M12 x 25mm, Cl 10.9
Heavy
2шт.
8
J912683
TUBE
BRACKET support, upper oil fill
1шт.
9
845-8016
BOLT,Hvy Hex, M8 x 16mm, Cl 8.8
1шт.
10
845-8045
BOLT,Hvy Hex, M8 x 45mm, Cl 8.8
1шт.
11
J922892
TUBE,570.8, 507.15 mm L
oil dipstick
1шт.
11a
J908308
TUBE,9.52 mm OD x 124.1, 44 mm L
dipstick
1шт.
12
J907680
DIPSTICK
oil level
1шт.
13
845-8016
BOLT,Hvy Hex, M8 x 16mm, Cl 8.8
2шт.
14
J914644
BRACE
tube, oil dipstick
1шт.
15
1330429C1
DRAIN VALVE
oil
1шт.
16
J900216
PACKING RING
WASHER sealing, drain plug
1шт.
17
1329978C3
HOSE
18-1/8 inch (430 mm) long
1шт.
19
1329976C3
HOSE,15.75 mm ID x 610.00 mm
26 inch (660 mm) long, cut from 1977295CX bulk, oil drain, see this Figure
1шт.
20
515-30222
CLAMP,7/8", 1/2" Bolt
P-type, Hose retaining
3шт.
21
1301387C2
CLIP
CLAMP square, 2 inch ID, hose retaining
1шт.
22
26613R1
CLAMP,1 7/8", Insul, 1/2" Bolt
1-7/8 inch diameter, hose retaining
2шт.
23
92070C1
CLAMP,1 1/4", Insul, 7/16" Bolt
P-type, 1-1/4 inch ID, hose retaining
2шт.
24
425-148
JAM NUT,Jam, 1/2"-13, G5
Not shown
1шт.
25
1977169C1
TEE
oil drain
1шт.
26
1329977C2
HOSE,15.75 mm ID x 840.00 mm
33 inch (840 mm) long, cut from 1977295CX bulk, see this Figure
1шт.
27
1977293C3
HOSE,15.748mm ID x 1700mm L
67 inch (1700 mm) long, cut from 1977295CX bulk, see this Figure
1шт.
28
1977220C1
ANGLE
BRACKET oil drain shield
1шт.
29
119254A1
CROSS
oil drain
1шт.
1977295CX
LARGE HOSE
HOSE,LARGE bulk, 5/8 (16) x 7/8 (22) x 600 inch (15240 mm) long, see Refs. 19, 26, and 27
1шт.
Выбрано товаров: 31
