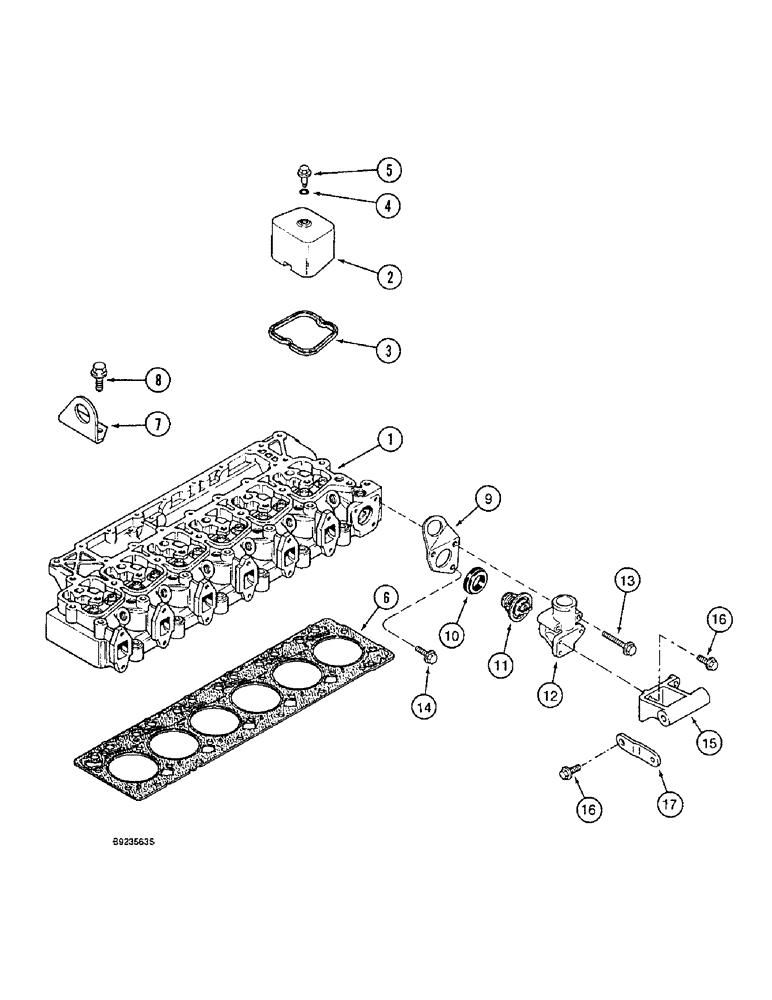

Запчасти Case IH 1644 (2-28) - CYLINDER HEAD COVERS AND GASKET, 6TA-590 ENGINE, THERMOSTAT AND HOUSING (01) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, parts list Figure 2-30

1шт.

2

J902604

COVER

rocker arm

6шт.

3

J902666

GASKET

SEAL rocker arm cover

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

6шт.

5

J907049

BOLT,Hex

hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

6

J921394

GASKET

head standard

1шт.

6

J921396

CYLINDER HEAD GASKET

head, 2 notches 0.25 mm overthick

1шт.

6

J921398

GASKET

head, 3 notches 0.50 mm overthick

1шт.

7

J908118

BRACKET

lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

9

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

A77736

THERMOSTAT

KIT coolant thermostat, housing, Includes: Ref. 10 and 11

1шт.

10

J923331

GASKET

thermostat housing

1шт.

11

NSS

NOT SOLD SEPARAT

THERMOSTAT coolant, housing

1шт.

12

J914409

HOUSING

thermostat, housing

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

Thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and housing

1шт.

15

J917484

BRACE

SUPPORT alternator mounting, thermostat and housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Thermostat and housing

4шт.

17

J910924

PLATE

BRACE alternator mounting, Replaces J903104, thermostat and housing

1шт.
