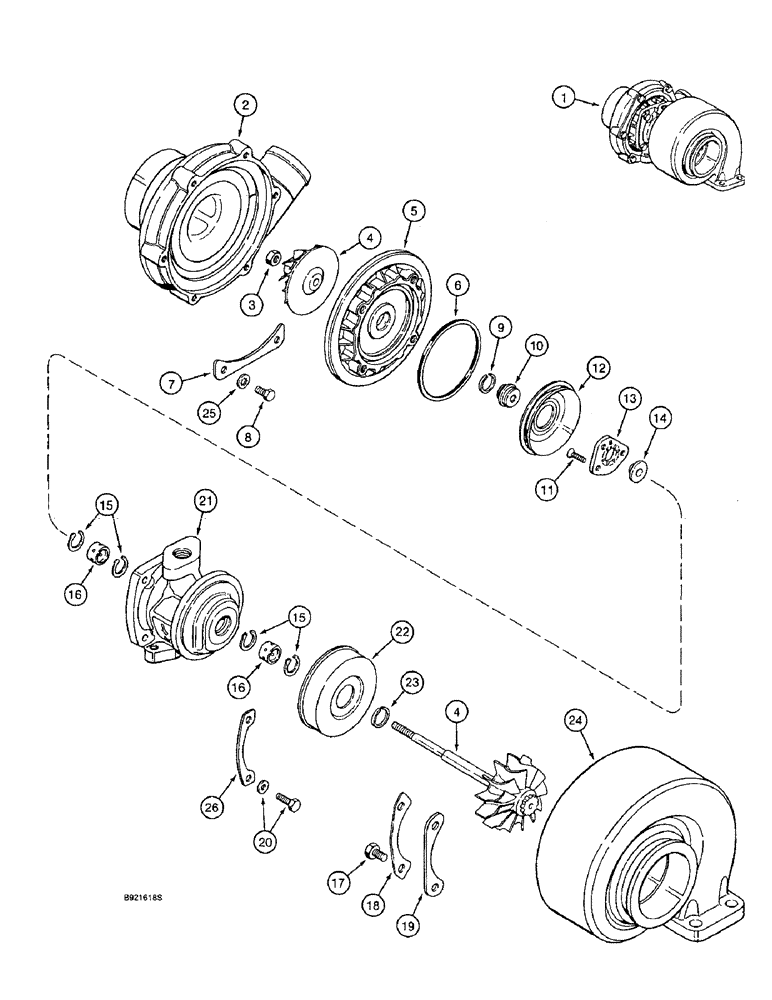

Запчасти Case IH 1644 (2-26) - TURBOCHARGER, 6TA-590 ENGINE (01) - ENGINE

1

J919113

TURBOCHARGER

ASSEMBLY engine, new, Includes: Ref. 2 - 26

1шт.

1

JR802289

REMAN-TURBOCHARGER

1644, Reman For New P/N J919113

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JR907028

REMAN-TURBOCHARGER

Assembly Engine, Remanufactured, Component parts shown in this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 26

1шт.

1

JC907028

CORE-TURBOCHARGER

Return Part Number use this part number to return turbocharger core for credit when using a remanufactured assembly, Includes: Ref. 2 - 26

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT hex, lock

1шт.

Part of turbocharger kit P/N J545652

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY turbocharger

1шт.

5

NSS

NOT SOLD SEPARAT

DIFFUSER compressor

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL diffuser

1шт.

Part of turbocharger kit P/N J545652

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE diffuser clamping

3шт.

8

NSS

NOT SOLD SEPARAT

SCREW cap

4шт.

Part of turbocharger kit P/N J545652

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL slit ring, compressor

1шт.

Part of turbocharger kit P/N J545652

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW flat head, torx

3шт.

Part of turbocharger kit P/N J545652

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

Part of turbocharger kit P/N J545652

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING snap, retaining

4шт.

Part of turbocharger kit P/N J545652

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING impeller shaft

2шт.

Part of turbocharger kit P/N J545652

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT plate retaining

4шт.

Part of turbocharger kit P/N J545652

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE lock, turbine housing

2шт.

Part of turbocharger kit P/N J545652

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE clamping, turbine housing

2шт.

20

NSS

NOT SOLD SEPARAT

BOLT hex

4шт.

Part of turbocharger kit P/N J545652

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING turbine bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL piston ring, turbine

1шт.

Part of turbocharger kit P/N J545652

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING turbine

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER lock

8шт.

Part of turbocharger kit P/N J545652

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE lock, turbine

2шт.

J545652

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes Refs. 3, 6, 8, 9, 11, 13, 15 to 18, 20, 23, and 25, Replaces J904772 KIT

1шт.
