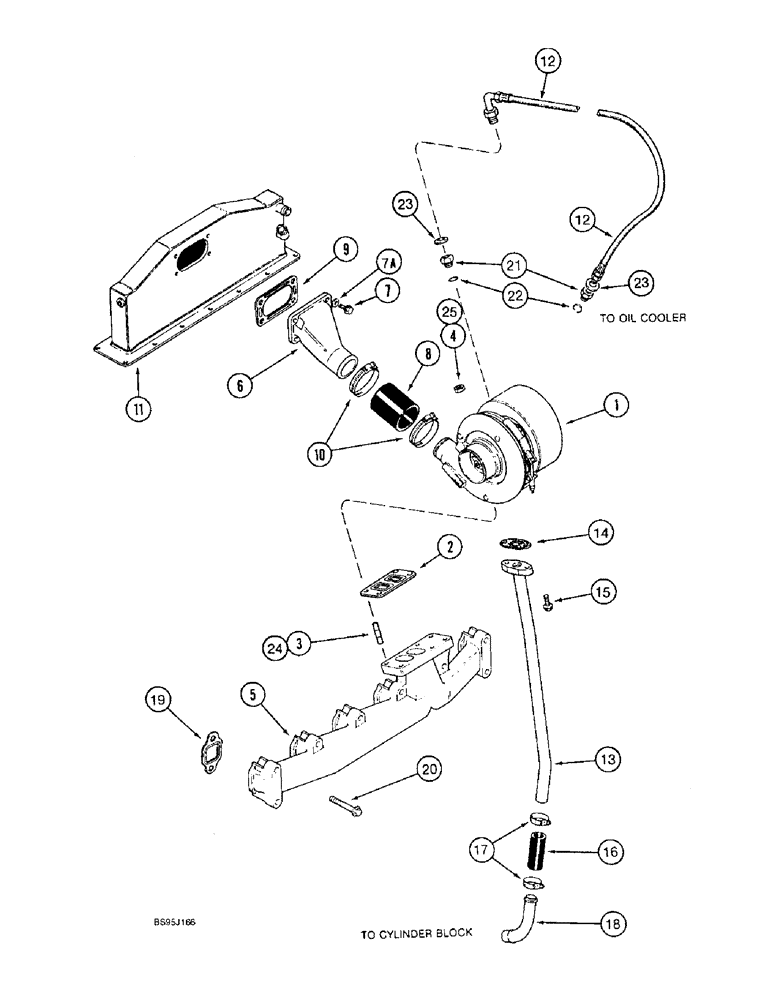

Запчасти Case IH 1644 (2-24) - TURBOCHARGER SYSTEM, 6TA-590 ENGINE (01) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY engine, parts list Figure 2-26

1шт.

2

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

3

J905417

STUD

STUD turbocharger mounting, used with Ref. 4 nut only

4шт.

4

J901961

NUT

hex, special, 10 mm - 1.25, used with Ref. 3 stud only

4шт.

5

J901683

MANIFOLD

exhaust

1шт.

6

J906918

CONNECTION

air crossover

1шт.

7

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

4шт.

7a

J918189

SEALING WASHER

WASHER sealing

4шт.

8

J916166

INTAKE AIR HOSE

2-3/4 inch (71 mm) long

1шт.

9

J914856

GASKET,1.02mm Thk

air crossover connection

1шт.

10

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

adj. 1-5/16 - 2-1/4 inch diameter

2шт.

11

J919806

AFTERCOOLER

AFTER air intake

1шт.

12

J918562

HOSE

21-3/16 inch (538 mm) long

1шт.

13

J918579

TUBE

oil drain, upper

1шт.

14

J914388

GASKET

turbo oil drain tube

1шт.

15

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

16

J903745

LARGE HOSE

HOSE,LARGE 3 inch (76 mm) long

1шт.

17

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj.

2шт.

18

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbocharger oil drain

1шт.

19

J905443

MANIFOLD GASKET

exhaust manifold

6шт.

20

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

12шт.

21

J919687

HYD CONNECTOR

ADAPTER female hex, special, Includes: Ref. 22

2шт.

22

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

23

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

24

J818823

STUD

turbocharger mounting, used with Ref. 25 nut only

4шт.

25

J818824

FLANGE NUT

hex flange, special, 10 mm - 1.5, used with Ref. 24 stud only

4шт.
