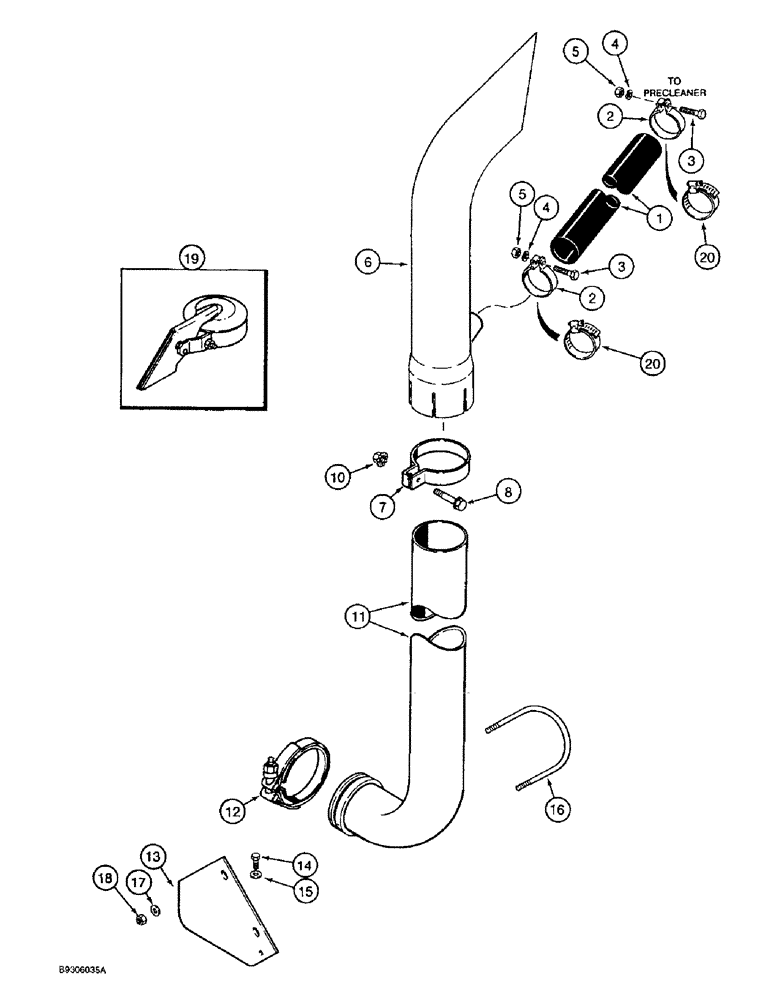

Запчасти Case IH 1644 (2-20) - EXHAUST SYSTEM (01) - ENGINE

1

119217A1

HOSE,1.25 mm ID x 178.00 mm

Cut From 407001R1 Bulk Hose, In This Figure

1шт.

2

1275854C1

CLAMP

hose, if used

2шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used with 1275854C1 clamp

2шт.

4

492-11038

LOCK WASHER,3/8"

Used with 1275854C1 clamp

2шт.

5

425-106

NUT,3/8"-16, Cl 5

Used with 1275854C1 clamp

2шт.

6

116706A1

TUBE,228.6, 203.2 mm Length

exhaust aspirator top

1шт.

7

1321280C1

CLAMP

exhaust pipe

1шт.

8

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

10

231-5146

FLANGE NUT,3/8"-16

1шт.

11

119093A1

TUBE,88.9 mm OD, 476, 197.4 mm Length

exhaust aspirator

1шт.

12

A170467

CLAMP,72mm ID

includes hardware

1шт.

13

84642C2

BRACKET

BRACKET tube support

1шт.

14

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

15

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

16

S93558

U-BOLT

3/8 inch NC

1шт.

17

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

18

231-4116

NUT,3/8"-16, GB

hex, self-locking, 3/8 inch NC

2шт.

19

1541960C2

CAP

exhaust pipe if used

1шт.

20

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj., if used, in this figure

2шт.

407001R1

HOSE,31.75mm ID x 914.4mm L, SAE 20R1

bulk 1-1/4 (32) ID x 36 inch (914 mm) long bulk

1шт.
