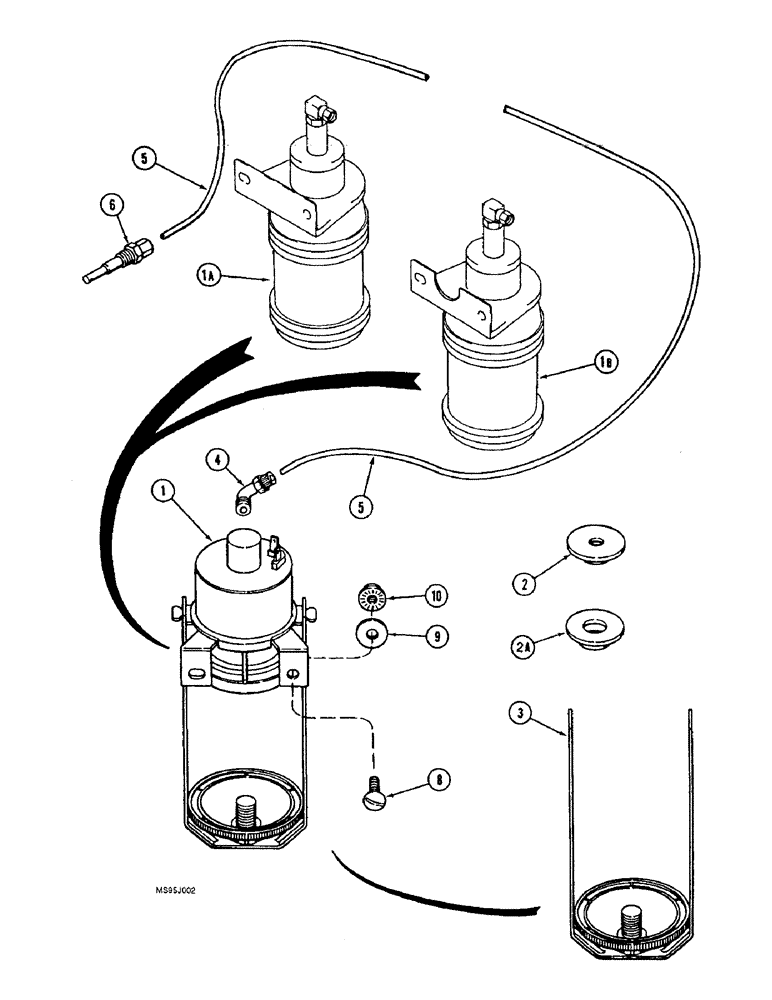

Запчасти Case IH 1644 (2-18) - ETHER STARTING SYSTEM (01) - ENGINE

1

A143381

SOLENOID

ASSEMBLY ether injection, Replaced by 185552A1, Ref. 1A and 18555A2, Ref. 1B

1шт.

1a

185552A1

SOLENOID

ether injection, 12 volt , Replaces A143381, Ref. 1 assembly, and is Replaced by 185552A2, Ref. 1B assembly

1шт.

1b

185552A2

SOLENOID

ASSEMBLY ether injection, Replaces 185552A1 Ref. 1A solenoid and A143381 Ref. 1 solenoid assembly, Includes: Ref. 2, 2A and 3

1шт.

2

395686R1

GASKET

injector solenoid, 15/64 inch diameter, used with A143381, Ref. 1 solenoid assembly only

1шт.

2a

1963571C1

GASKET

GASKET injector solenoid, 19/32 inch diameter, used with A143381, Ref. 1 solenoid assembly only

1шт.

3

121851C1

RETAINER

ether start fluid container injector, used with A143381, Ref. 1 solenoid assembly only

1шт.

4

289970C91

FITTING

ELBOW 90 degree, special 1/8-27 PT x 1/8 inch tube used with A143381 Ref. 1 solenoid assembly only

1шт.

5

A172361

TUBE

72 inch (1829 mm) long, cut from 1954063CX bulk tube, in this Figure, Serial Range: solenoid-manifold

1шт.

6

A172900

NOZZLE CAP

ASSEMBLY atomizer

1шт.

8

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

2шт.

9

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

flat, 11/32 x 1-1/4 x 1/16 inch

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

1954063CX

TUBE

bulk, 1/8 (3) OD x 1200 inch (30480 mm) long, see Ref. 5

1шт.
