Запчасти Case IH 1644 (2-12) - WATER PUMP SYSTEM, 6TA-590 ENGINE (01) - ENGINE

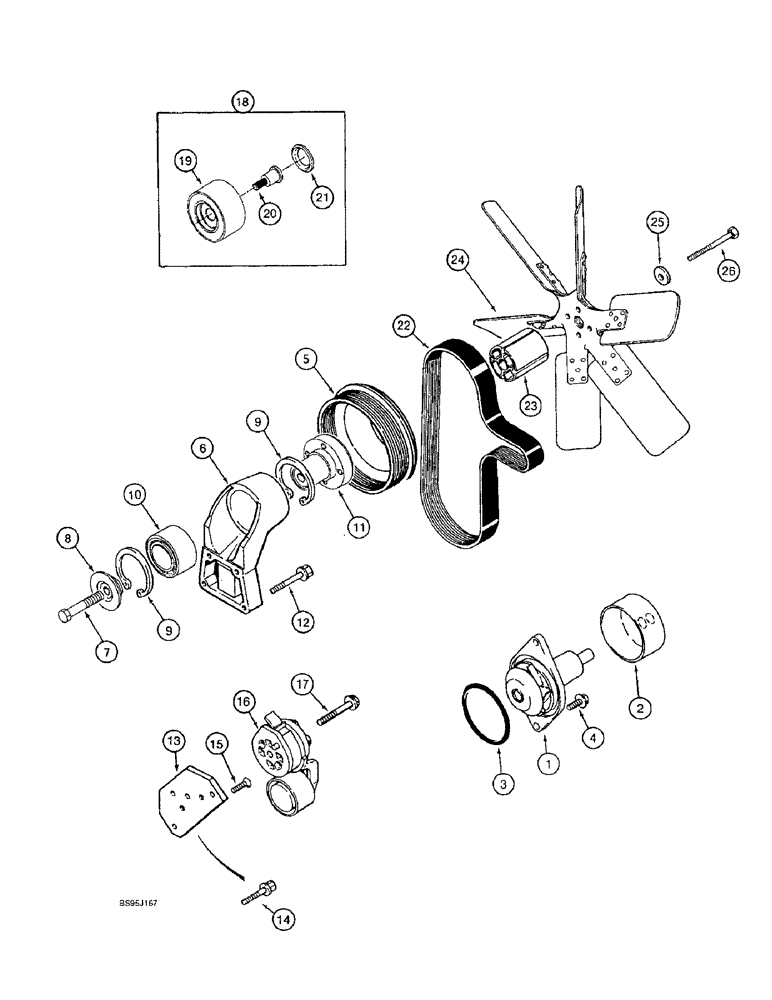

Схема запчастей Case IH 1644 - (2-12) - WATER PUMP SYSTEM, 6TA-590 ENGINE (01) - ENGINE
16
7
9
3
5
14
2
24
25
26
13
20
9
21
4
18
12
22
19
8
1
6
17
23
10
15
11

Артикул

Название

Примечание

Количество

A77703

PUMP, WATER

KIT, Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

Reman for new P/N A77703

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

fan, 1.1 to 1 ratio

1шт.

6

J913433

BRACKET

fan pulley, Includes: Ref. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

BOLT hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

8

J923044

RETAINER

fan hub

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

fan

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

Fan bracket to cylinder block

4шт.

13

J925207

SUPPORT

BRACKET belt tensioner, Replaces J919985

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap, Special

1шт.

16

J918944

BELT TENSIONER

belt

1шт.

17

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy , Belt tensioner mounting

1шт.

18

A77817

KIT

KIT belt tensioner, used to Replace pulley of J918944, Ref. 16, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

PULLEY belt tensioner

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT pulley

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL bolt

1шт.

22

J911565

V-BELT,27.92mm W x 1473.2mm L, 8 Ribs

Fan

1шт.

23

A184548

SPACER,Fan, 89/90mm Thk

fan, 90 mm long

1шт.

24

111898A1

FAN

engine

1шт.

25

96-81004

WASHER,0.41" ID x 1.25" OD x 0.24" Thk

flat, 13/32 x 1-1/4 x 15/64 inch, hardened

4шт.

26

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

4шт.

Выбрано товаров: 30
