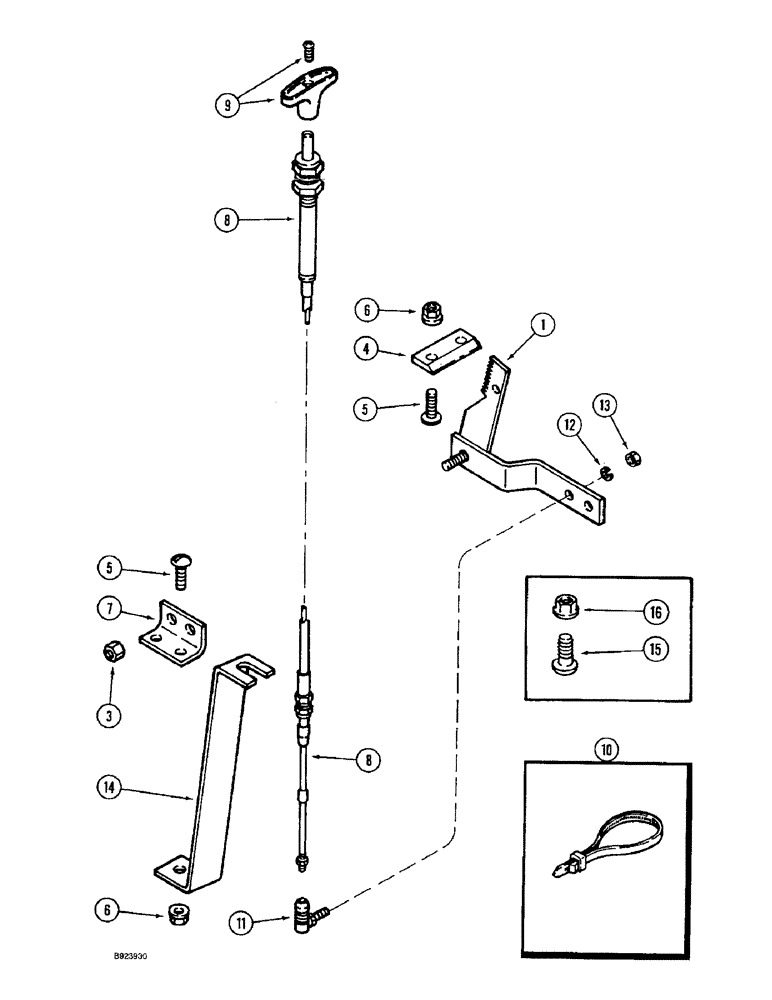

Запчасти Case IH 1644 (7-10) - PARKING BRAKE, PRIOR TO P.I.N. JJC0098060 (5.1) - BRAKES

1

177799C2

SECTOR

LEVER parking brake

1шт.

3

231-1446

NUT,3/8" - 16, Gr 5

1шт.

4

177802C1

BAR

parking brake ratchet

1шт.

5

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

7

177804C2

SUPPORT

parking brake lever

1шт.

8

193292C1

BOWDEN CONTROL

CABLE ASSEMBLY parking brake 79 inch, Includes: Ref. 9

1шт.

9

170273C1

HANDLE

control parking brake

1шт.

10

702093C1

CABLE TIE

CABLE STRAP

4шт.

11

165288C91

JOINT

ball

1шт.

12

492-11025

LOCK WASHER,1/4"

1шт.

13

425-114

NUT,1/4"-28, G5

1шт.

14

184314C1

BRACKET

parking brake cable

1шт.

15

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.
