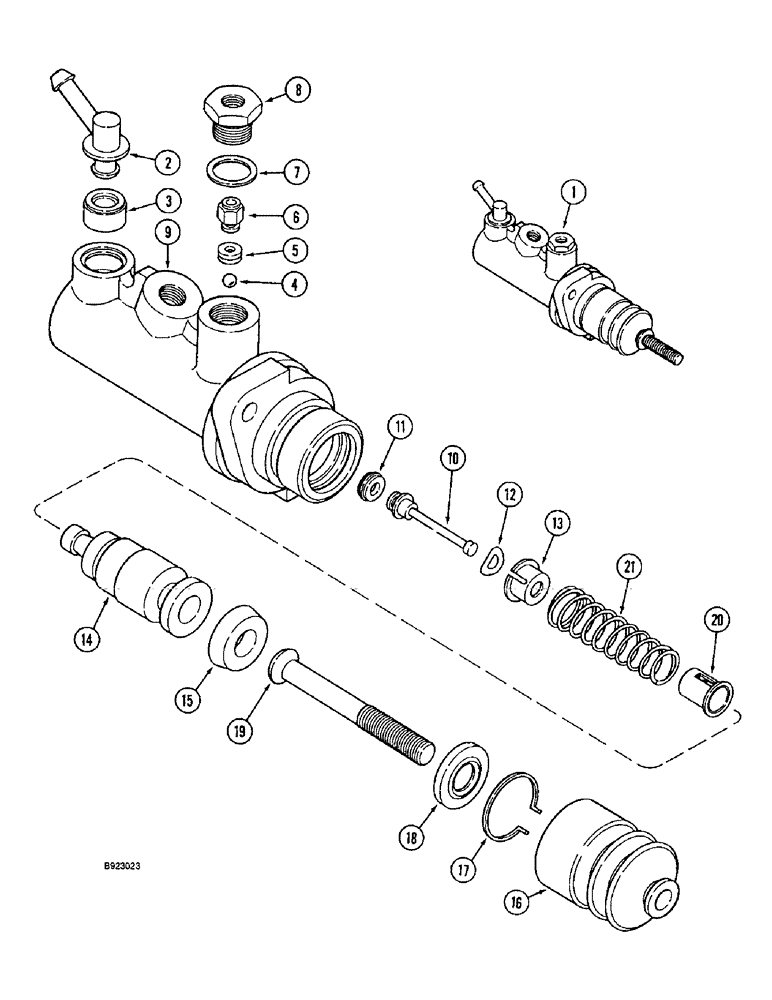

Запчасти Case IH 1644 (7-08) - MASTER BRAKE CYLINDER ASSEMBLY (5.1) - BRAKES

1

1281884C91

MASTER CYLINDER,37mm Stroke

ASSEMBLY 1 (25) ID x 1-1/2 inch (37 mm) stroke master brake, Includes: Ref. 2 - 21

2шт.

85108C1

SEAL KIT

inlet port seal and connector, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR port, inlet

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL adapter

1шт.

Part of KIT, part number 1288941C91

1шт.

4

NSS

NOT SOLD SEPARAT

BALL valve

1шт.

Part of KIT, part number 1288941C91

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL flow valve

1шт.

Part of KIT, part number 1288941C91

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE flow

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET adapter

1шт.

Part of KIT, part number 1288941C91

1шт.

8

NSS

NOT SOLD SEPARAT

ADAPTER flow valve

1шт.

9

NSS

NOT SOLD SEPARAT

BODY brake

1шт.

10

NSS

NOT SOLD SEPARAT

STEM valve

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL center valve

1шт.

Part of KIT, part number 1288941C91

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER curved

1шт.

Part of KIT, part number 1288941C91

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER valve

1шт.

14

NSS

NOT SOLD SEPARAT

PLUNGER valve

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL gland

1шт.

Part of KIT, part number 1288941C91

1шт.

16

85109C1

BELLOWS

BOOT master brake cylinder

1шт.

Part of KIT, part number 1288941C91

1шт.

17

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

Part of KIT, part number 1288941C91

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER retaining

1шт.

19

NSS

NOT SOLD SEPARAT

ROD push

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER spring

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING return

1шт.

1288941C91

PACKAGE, REPAIR

KIT master brake cylinder, includes Ref. 3, 4, 5, 7, 11, 12, 15, 16, and 17

1шт.
