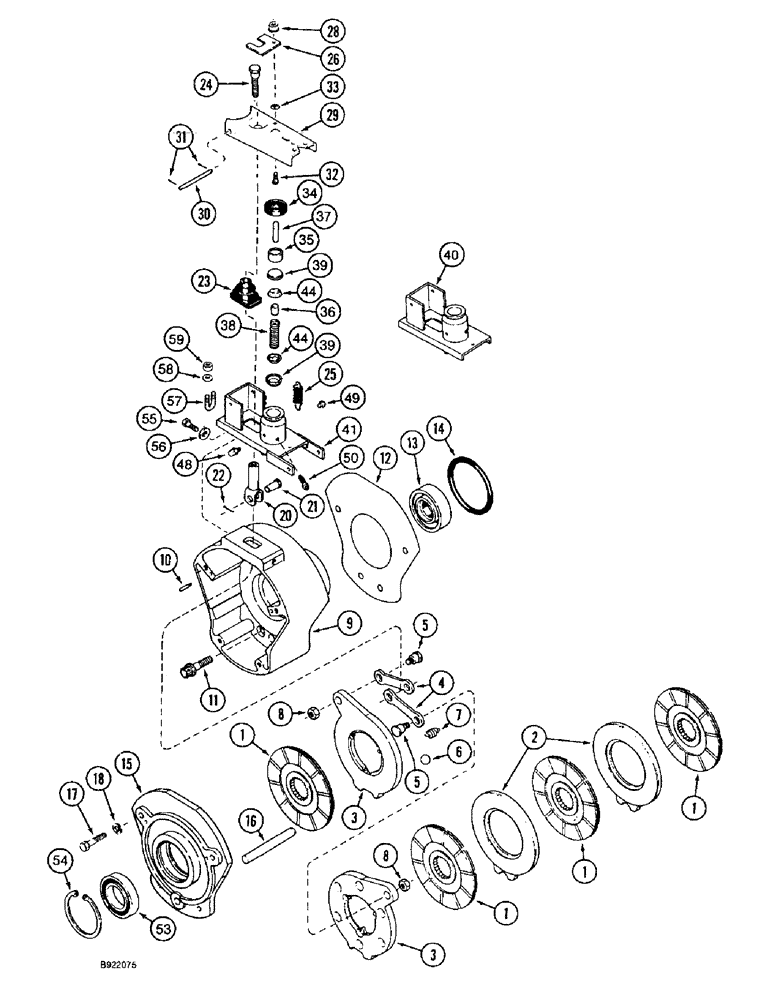

Запчасти Case IH 1644 (7-05A) - MASTER BRAKES, P.I.N. JJC0098060 AND AFTER (5.1) - BRAKES

1

1349008C2

BRAKE DISC

DISC, BRAKE middle

8шт.

2

1349009C2

BRAKE DISC

DISC, BRAKE intermediate

4шт.

184202C93

DISC

ASSEMBLY brake actuating, Includes: Ref. 3 - 8

2шт.

3

NSS

NOT SOLD SEPARAT

DISC actuating

1шт.

4

1276923C2

LINK

actuating

2шт.

5

1276924C1

STUD

link

2шт.

6

211-1028

BALL,7/8" Dia

chrome alloy steel, 7/8 inch, grade 24, Replaces 17028R1

5шт.

7

359859R2

SPRING

extension

3шт.

8

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

9

1342950C1

HOUSING ASSY.

brake, Includes: Ref. 10

2шт.

10

37-1516

DOWEL,5/16" x 1"

PIN 5/16 x 1 inch, hardened, Replaces 20020R1

2шт.

11

26145R1

12 PT SCREW,Flg, 5/8" - 11 x 1 3/4"

8шт.

12

401898R1

SHIM

brake housing, 0.003 inch thick

1шт.

12

401899R1

SHIM

brake housing, 0.005 inch thick

1шт.

12

401900R1

SHIM

brake housing, 0.007 inch thick

1шт.

13

184072C1

OIL SEAL,55.88mm ID x 76.2mm OD x 9.5mm Thk

oil

2шт.

14

238-5427

O-RING,0.275" Thk x 4.725" ID, -427, Cl 5, 75 Duro

2шт.

15

1981196C2

COVER

ASSEMBLY brake housing, Includes: Ref. 16

2шт.

16

37-11496

DOWEL,7/8" x 6"

1шт.

17

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

20

1321923C1

CLEVIS

YOKE 1/2 - 20 NF ID x 7/8 inch OD brake pull

2шт.

21

40545V

CLEVIS PIN,5/8" x 1 3/8"

2шт.

22

432-816

COTTER PIN,1/8" x 1"

2шт.

23

184321C1

COVER

BOOT brake housing

2шт.

24

1321973C1

ROD

brake pull

2шт.

25

312824R1

SPRING

brake lever return

2шт.

26

184282C2

BAR

brake adjustment

2шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

1277201C3

LEVER

brake

2шт.

30

1308992C1

PIN,9.53mm OD x 102mm L

brake lever

2шт.

31

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

32

412-412

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 3/4", Gr 2

2шт.

33

136969C1

FASTENER

NUT push on type, 1/4 inch brake lever

2шт.

1329740C2

SUPPORT ASSY.

ACTUATOR brake, right hand, Includes: Ref. 34 - 50

1шт.

1329739C2

SUPPORT ASSY.

ACTUATOR brake, left hand, Includes: Ref. 34 - 50

1шт.

34

662620R1

COVER

BOOT wheel cylinder

1шт.

Part of KIT, part number 1288942C92

1шт.

35

662616R1

PISTON

wheel cylinder

1шт.

Part of KIT, part number 1288942C92

1шт.

36

1281779C1

LARGE PIN

PIN, LARGE brake piston spacer

1шт.

37

184325C2

PLUNGER

PLUNGER wheel cylinder

1шт.

38

84940C1

SPRING

wheel cylinder

1шт.

Part of KIT, part number 1288942C92

1шт.

39

51906H

CUP

wheel cylinder, 1-1/4 inch diameter

2шт.

Part of KIT, part number 1288942C92

1шт.

40

NSS

NOT SOLD SEPARAT

SUPPORT actuator, right, order 1329740C2

1шт.

41

NSS

NOT SOLD SEPARAT

SUPPORT actuator, left, order 1329739C2

1шт.

44

85105C1

EXPANDER

CUP wheel cylinder

2шт.

Part of KIT, part number 1288942C92

1шт.

48

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

straight, 7/16 - 20 flare x 1/8 inch PT

1шт.

49

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

50

660901R1

VALVE

bleeder

2шт.

53

574273R91

BEARING ASSY,2.1654" ID x 3.937" OD x 0.8268"

ball housing cover

2шт.

54

184131C1

SNAP RING,#393, 4.234", Int

2шт.

55

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

56

495-81129

WASHER,13/32" x 3/4" x .120"

4шт.

57

1327797C1

CLAMP

U-BOLT 1/4 NC x 1-1/4 inch

2шт.

58

95-51028

WASHER,0.28" ID x 0.5" OD x 0.06" Thk

4шт.

59

231-4144

NUT,1/4"-20, GB

4шт.

1288942C92

KIT

repair, wheel cylinder, includes Ref. 34, 35, 38, 39, and 44

1шт.
