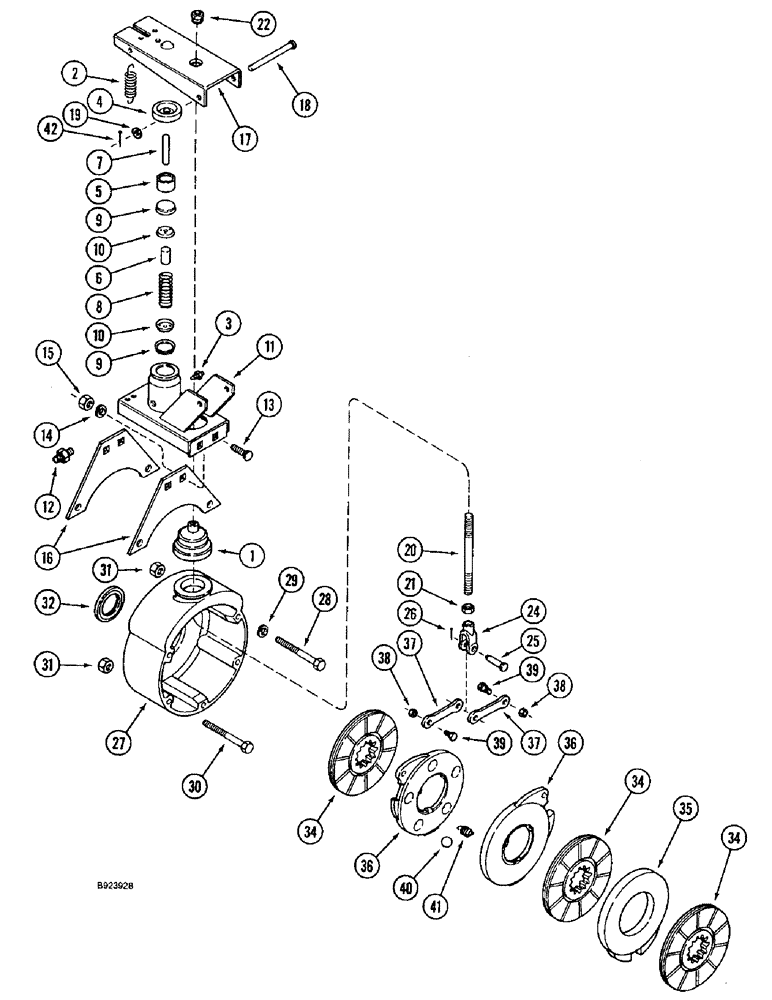

Запчасти Case IH 1644 (7-04) - MASTER BRAKES, PRIOR TO P.I.N. JJC0098060 (5.1) - BRAKES

1

381699R1

BOOT

brake housing

2шт.

2

168567C1

SPRING

return, brake lever

2шт.

1329741C2

SUPPORT

CYLINDER ASSEMBLY brake master, left hand, includes Ref. 3 - 11

1шт.

1329742C2

SUPPORT

CYLINDER ASSEMBLY brake master, right hand, Includes: Ref. 3 - 12

1шт.

3

660901R1

VALVE

bleeder

1шт.

4

662620R1

COVER

BOOT wheel cylinder

1шт.

Part of KIT, part number 1288942C92

1шт.

5

662616R1

PISTON

wheel cylinder

1шт.

Part of KIT, part number 1288942C92

1шт.

6

184304C1

SPACER

brake cylinder piston

1шт.

7

662618R2

PIN

PLUNGER brake cylinder piston

1шт.

8

84940C1

SPRING

wheel cylinder

1шт.

Part of KIT, part number 1288942C92

1шт.

9

51906H

CUP

wheel cylinder, 1-1/4 inch diameter

2шт.

Part of KIT, part number 1288942C92

1шт.

10

85105C1

EXPANDER

CUP wheel cylinder

2шт.

Part of KIT, part number 1288942C92

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET brake cylinder, left hand

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET brake cylinder, right hand

1шт.

12

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

straight, 7/16 - 20 flare x 1/8 inch PT

1шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

8шт.

14

492-11038

LOCK WASHER,3/8"

8шт.

15

425-106

NUT,3/8"-16, Cl 5

8шт.

16

177688C1

HANGER

BRACKET mounting, brake cylinder

4шт.

17

1327565C1

LEVER

actuator, brake cylinder

2шт.

18

28607R1

HEADED PIN,3/8" x 4"

headed, 3/8 x 4 inch

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

20

1321947C1

ROD

brake pull

2шт.

21

425-118

NUT,1/2"-20, G5

4шт.

22

1321948C1

NUT

special, brake rod pull

2шт.

24

1321946C1

CLEVIS

YOKE brake rod operating

2шт.

25

16618R1

CLEVIS PIN,7/16" x 1.190"

clevis, 7/16 x 1-3/16 inch

2шт.

26

32-610

COTTER PIN,3/32" x 5/8"

2шт.

27

184177C2

HOUSING

wheel brake

2шт.

28

113-320

BOLT,Hex, 7/16" - 14 x 5-1/2", Gr 5

4шт.

29

492-11044

LOCK WASHER,7/16"

4шт.

30

413-780

BOLT,Hex, 7/16" - 14 x 5", Gr 5

BOLT hex, 7/16 NC x 5 inch

6шт.

31

425-107

NUT,7/16"-14, G5

10шт.

32

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

brake housing

2шт.

34

1963810C2

BRAKE DISC

DISC, BRAKE middle

6шт.

35

188878C1

DISC

brake, intermediate

2шт.

366182R93

CLUTCH DISC

CLUTCH DISK ASSEMBLY actuating, Includes: Ref. 36 - 41

2шт.

36

NSS

NOT SOLD SEPARAT

DISC actuating

2шт.

37

357113R2

LINK

actuating

2шт.

38

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

2шт.

39

A30898

STEP BOLT

shoulder, actuating disc

2шт.

40

211-1028

BALL,7/8" Dia

chrome alloy steel, 7/8 inch, grade 24

5шт.

41

619731C1

SPRING

extension

3шт.

42

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

1288942C92

KIT

repair, wheel cylinder, includes Ref. 4, 5, 8, 9, and 10

1шт.
